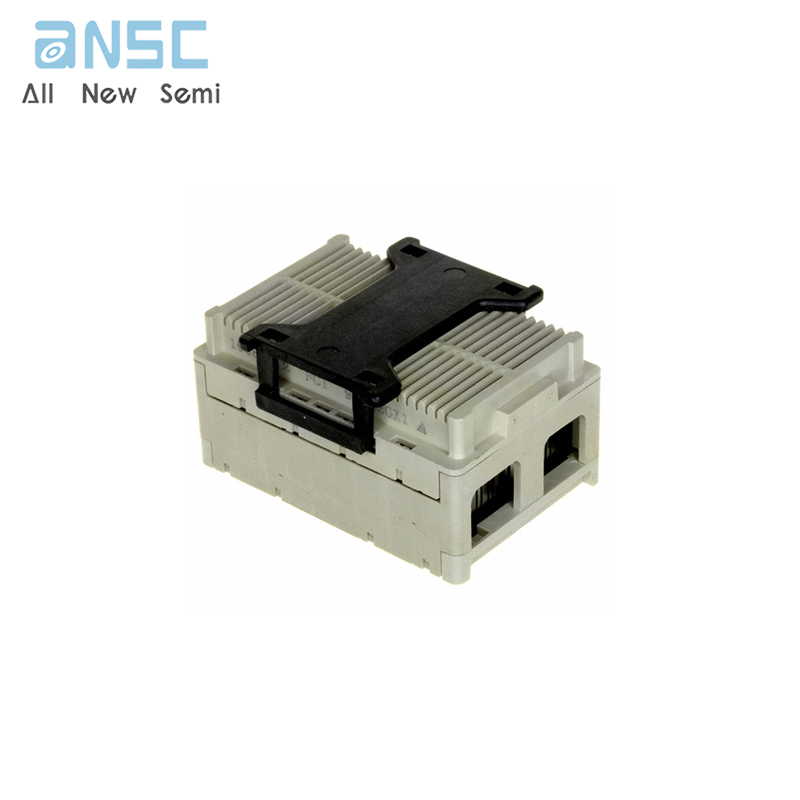

10060912-001LF 200 Signal (100 Pair) Position Connector Differential Pair Array spot stock

Product Descriptions

The GIG-ARRAY® connector is designed to meet the needs of  up to 10Gb/s applications requiring up to 296 signal pins per  connector. FCI’s long tradition as a BGA connector innovator  assures expertise and reliability in the GIG-ARRAY® BGA design.

The combination of multiple stack heights (15mm to 40mm)  and multiple sizes (200 signals to 296 signals) utilizing a  100-Ohm differential matched impedance design allows for  optimal design flexibility while yielding less than 1%  cross-talk performance.

FCI has produced BGA mezzanine connectors since 1996,  shipping over 10 billion BGA contact interfaces demonstrating  FCI’s extensive experience as the premier BGA interconnect  innovator and supplier. FCI’s patented BGA design is  supported by fully automated quality control systems  featuring 100% inspections of assembly coplanarity, solder  sphere size and location, as well as critical-to-function  terminal component attributes. Multiple in-line vision  systems, quality control product audits, and statistical  process controls are all a part of our state-of-the-art  manufacturing facility.

Product Features

• RoHS-compliant (lead-free) options are available

• Optimized design for utilization in high-density, high-speed mezzanine applications

• Ball Grid Array (BGA) termination for process friendly attachment

• 1mm x 0.65mm BGA interface pitch optimizes routing and electrical performance

• Stack heights available from 15mm to 40mm provide mezzanine design flexibility

• Connector sizes of 200 and 296 signals providing 62 signal contacts per linear cm (158 signal contacts per linear inch) allow for optimization of board space and signal requirements

• 100 Ohm differential pair matched impedance assures consistent high speed peformance

• Dual beam signal contacts provide two points of contact increasing product reliability

• Polarized design assures proper mating of the connector

Product Applications

• Communications

• Transmission

• Access

• Switching

• Optics

• Networking

• Data

• Servers

• Storage

• I & I

• Industrial controls & equipment

Product Specification

Product Photos

For more product information, please download the PDF
