Hot-selling and scarce MC7905.2CT 1.0 A Negative Voltage Regulators TO-220 spot stock
Manufacturer Product Number
MC7905.2CT
Description
MC7905.2CT 1.0 A Negative Voltage Regulators TO-220 spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The MC7900 series of fixed output negative voltage regulators are intended as complements to the popular MC7800 series devices. These negative regulators are available in the same seven−voltage options as the MC7800 devices. In addition, one extra voltage option commonly employed in MECL systems is also available in the negative MC7900 series.
Available in fixed output voltage options from −5.0 V to −24 V, these regulators employ current limiting, thermal shutdown, and safe−area compensation − making them remarkably rugged under most operating conditions. With adequate heatsinking they can deliver output currents in excess of 1.0 A.
• No External Components Required
• Internal Thermal Overload Protection
• Internal Short Circuit Current Limiting
• Output Transistor Safe−Area Compensation
• Available in 2% Voltage Tolerance (See Ordering Information)
• Pb−Free Package May be Available. The G−Suffix Denotes a Pb−Free Lead Finish
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MC7905.2CT |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Output Configuration | Negative |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | -35V |
| Voltage - Output (Min/Fixed) | -5.2V |
| Voltage Dropout (Max) | 1.3V @ 1A (Typ) |
| Current - Output | 1A |
| PSRR | 68dB (120Hz) |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | 0°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220 |
| Base Product Number | MC7905 |

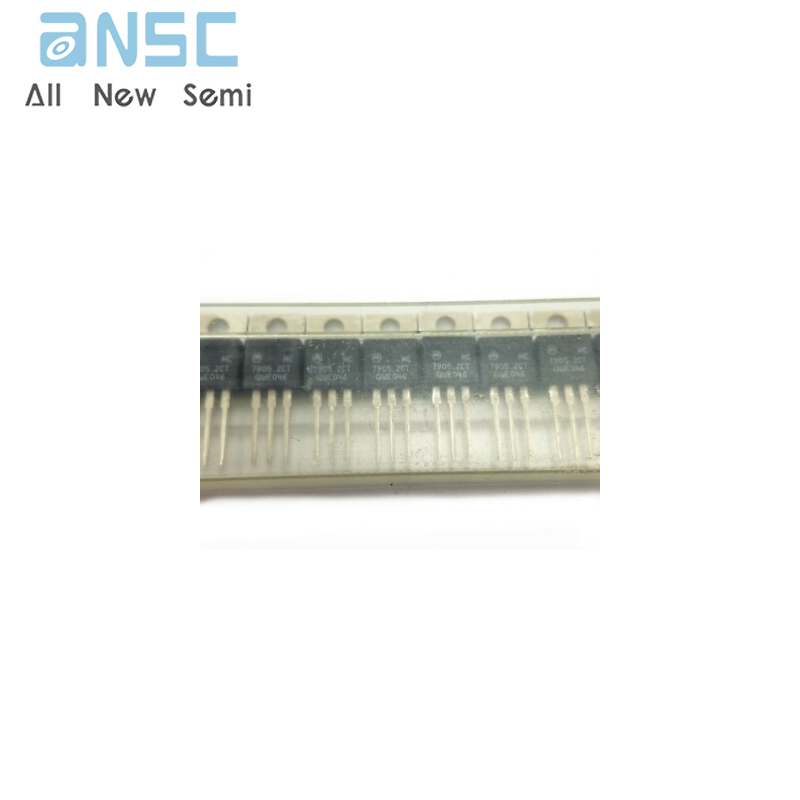

Product Photos
For more product information, please download the PDF
