Hot-selling and scarce ADF4217LBRU Dual Low Power Frequency Synthesizers TSSOP20 spot stock

Product Descriptions

The ADF4217L/ADF4218L/ADF4219L are low power dualfrequency synthesizers that can be used to implement localoscillators in the up-conversion and down-conversion sectionsof wireless receivers and transmitters . They can provide the LOfor both the RF and IF sections . They consist of a low noisedigital PFD (phase frequency detector), a precision charge pump, aprogrammable reference divider, programmable A and B counters,and a dual modulus prescaler (P/P + 1). The A and B counters,in conjunction with the dual modulus prescaler (P/P + 1),implement an N divider (N = BP + A). In addition, the 14-bitreference counter (R Counter) allows selectable REFIN frequencies at the PFD input . A complete PLL (phase-lockedloop) can be implemented if the synthesizers are used with anexternal loop filter and VCOs (voltage controlled oscillators).

Control of all the on-chip registers is via a simple 3-wire interfacewith 1.8 V compatibility .The devices operate with a power supplyranging from 2.6 V to 3.3 V and can be powered down whennot in use .

Product Features

Total IDD: 7.1 mA

Bandwidth/RF 3.0 GHz

ADF4217L/ADF4218L, IF 1.1 GHz

ADF4219L, IF 1.0 GHz

2.6 V to 3.3 V Power Supply

1.8 V Logic Compatibility

Separate VP Allows Extended Tuning Voltage

Selectable Dual Modulus Prescaler

Selectable Charge Pump Currents

Charge Pump Current Matching of 1%

3-Wire Serial Interface

Power-Down Mode

Product Applications

Wireless Handsets (GSM, PCS, DCS, CDMA, WCDMA)

Base Stations for Wireless Radio (GSM, PCS, DCS,WCDMA)

Wireless LANs

Communications Test Equipment

Cable TV Tuners (CATV)

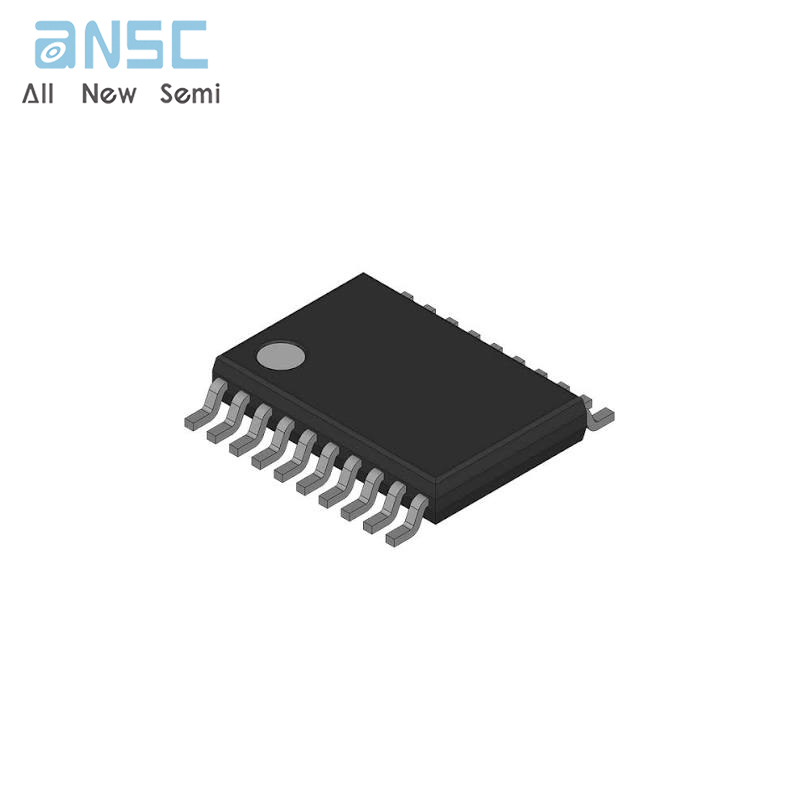

Product Photos

For more product information, please download the PDF
