Hot-selling and scarce SKY65404-31 5 GHz Low-Noise Amplifier IC QFN spot stock

Product Descriptions

The SKY65404-31 is an ultra low-noise amplifier (LNA) intendedfor 5 GHz wireless receiver applications . Its industry-leading noisefigure (NF), together with high linearity, makes it ideal as a firststage LNA in 802 .11a wireless local area network (WLAN) radios .

Operating with a single supply voltage, the SKY65404-31consumes only 10 mA of current . The device includes a shutdownmode to save power when the receiver is inactive .

The tiny package footprint of the SKY65404-31, requiring onlyfour external components, enables the industry’s smallest PCBarea needed to implement a 5 GHz LNA.

Product Features

Ultra-low noise figure: 1.0 dB

4.9 GHz to 5.9 GHz operation

Enable/disable mode

High IIP3: +7 dBm

High gain: 13 dB

2.8 to 5.0 V single-supply operation

QFN (6-pin, 1.5 x 1.5 mm) package

(MSL1, 260 C per JEDEC J-STD-020)

Product Applications

802.11a/n/ac radios

5 GHz ISM radios

Smartphones

Notebooks, netbooks, and tablets

Access points, routers, and gateways

Wireless video systems

Product Specification

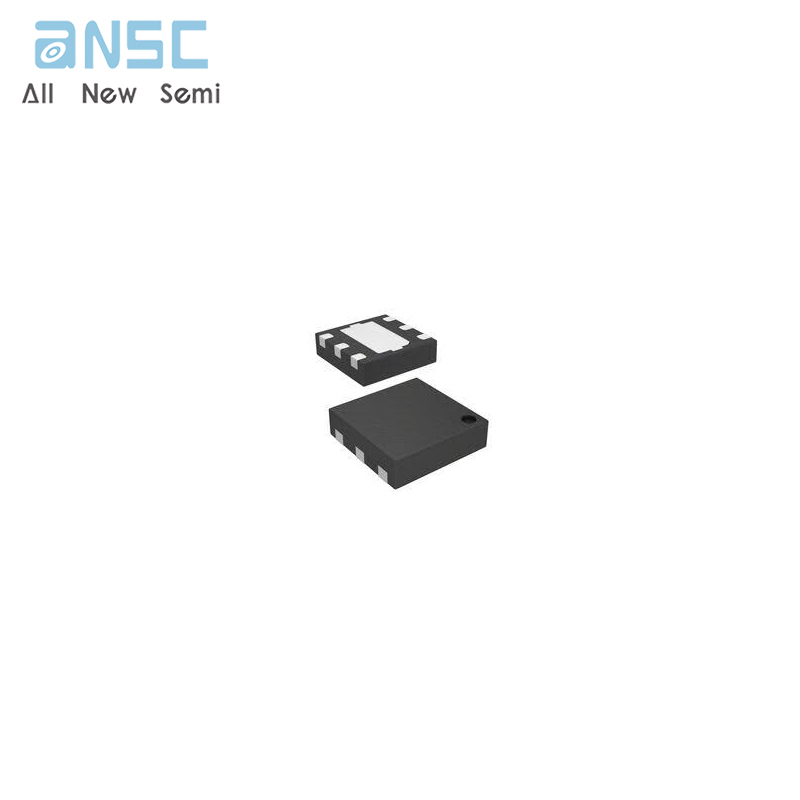

Product Photos

For more product information, please download the PDF
