CC2530F128RHAT A True System-on-Chip Solution for 2.4-GHz IEEE 802.15.4 and ZigBee Applications QFN spot stock
Manufacturer Product Number
CC2530F128RHAT
Description
CC2530F128RHAT A True System-on-Chip Solution
Package Condition
Tape & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The CC2530 is a true system-on-chip (SoC) solution for IEEE 802.15.4, Zigbee and RF4CE applications. It enables robust network nodes to be built with very low total bill-of-material costs. The CC2530 combines the excellent performance of a leading RF transceiver with an industry-standard enhanced 8051 MCU, in-system programmable flash memory, 8-KB RAM, and many other powerful features. The CC2530 comes in four different flash versions: CC2530F32/64/128/256, with 32/64/128/256 KB of flash memory, respectively. The CC2530 has various operating modes, making it highly suited for systems where ultralow power consumption is required. Short transition times between operating modes further ensure low energy consumption.
Combined with the industry-leading and golden-unit-status ZigBee protocol stack (Z-Stack™) from Texas Instruments, the CC2530F256 provides a robust and complete ZigBee solution.
Combined with the golden-unit-status RemoTI stack from Texas Instruments, the CC2530F64 and higher provide a robust and complete ZigBee RF4CE remote-control solution.
Product Features
• RF/Layout
– 2.4-GHz IEEE 802.15.4 Compliant RF Transceiver
– Excellent Receiver Sensitivity and Robustness to Interference
– Programmable Output Power Up to 4.5 dBm
– Very Few External Components
– Only a Single Crystal Needed for Mesh Network Systems
– 6-mm × 6-mm QFN40 Package
– Suitable for Systems Targeting Compliance With Worldwide Radio-Frequency Regulations: ETSI EN 300 328 and EN 300 440 (Europe), FCC CFR47 Part 15 (US) and ARIB STD-T-66 (Japan)
Product Applications
• 2.4-GHz IEEE 802.15.4 Systems
• RF4CE Remote Control Systems (64-KB Flash and Higher)
• ZigBee Systems (256-KB Flash)
• Home/Building Automation
• Lighting Systems
• Industrial Control and Monitoring
• Low-Power Wireless Sensor Networks
• Consumer Electronics
• Health Care
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-CC2530F128RHAT |
| Category | RF and Wireless |
| RF Transceiver ICs | |
| Mfr | - |
| Packaging | Tape & Reel (TR), Cut Tape (CT) |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Type | TxRx + MCU |
| RF Family/Standard | 802.15.4 |
| Protocol | Zigbee |
| Frequency | 2.4GHz |
| Data Rate (Max) | 250kbps |
| Power - Output | 4.5dBm |
| Sensitivity | -97dBm |
| Memory Size | 128kB Flash, 8kB RAM |
| Serial Interfaces | SPI, USART |
| GPIO | 21 |
| Voltage - Supply | 2V ~ 3.6V |
| Current - Receiving | 20.5mA ~ 24.3mA |
| Current - Transmitting | 28.7mA ~ 33.5mA |
| Operating Temperature | -40℃ ~ 125℃ |
| Mounting Type | Surface Mount |
| Package / Case | 40-VFQFN Exposed Pad |
| Supplier Device Package | 40-VQFN (6x6) |
| Base Product Number | CC2530F128 |

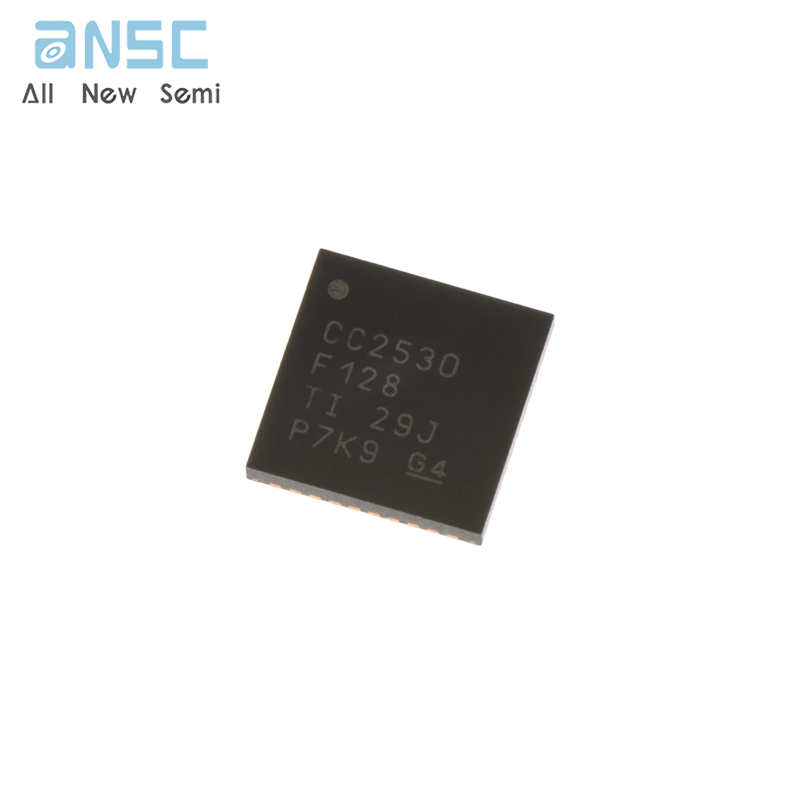

Product Photos
For more product information, please download the PDF
Other Products In The same category:
CC2530F128RHAT A True System-on-Chip Solution
37In stock:
Can ship immediately
