Hot-selling and scarce ADG1634BRUZ 4 Circuit IC Switch 2:1 4.5Ohm 20-TSSOP spot stock
Manufacturer Product Number
ADG1634BRUZ
Description
ADG1634BRUZ 4 Circuit IC Switch 2:1 4.5Ohm 20-TSSOP spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The ADG1633 and ADG1634 are monolithic industrial CMOS(iCMOS®) analog switches comprising three independently selectable single-pole, double-throw (SPDT) switches and four independently selectable SPDT switches, respectively.
All channels exhibit break-before-make switching action that prevents momentary shorting when switching channels. An EN input on the ADG1633 (LFCSP and TSSOP packages) and ADG1634 (LFCSP package only) is used to enable or disable the devices. When disabled, all channels are switched off.
The ultralow on resistance and on-resistance flatness of these switches make them ideal solutions for data acquisition and gain switching applications, where low distortion is critical. iCMOS construction ensures ultralow power dissipation,making the parts ideally suited for portable and battery-powered instruments.
Product Features
4.5 Ω typical on resistance
1 Ω on-resistance flatness
Up to 206 mA continuous current
±3.3 V to ±8 V dual-supply operation
3.3 V to 16 V single-supply operation
NoVL supply required
3 V logic-compatible inputs
Rail-to-rail operation
ADG1633
16-lead TSSOP and 16-lead, 3 mm × 3 mm LFCSP
ADG1634
20-lead TSSOP and 20-lead, 4 mm × 4 mm LFCSP
Product Applications
Communication systems
Medical systems
Audio signal routing
Video signal routing
Automatic test equipment
Data acquisition systems
Battery-powered systems
Sample-and-hold systems
Relay replacements
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-ADG1634BRUZ |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | - |
| Packaging | Tube |
| Part Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 4.5Ohm |
| Channel-to-Channel Matching (ΔRon) | 120mOhm |
| Voltage - Supply, Single (V+) | 3.3V ~ 16V |
| Voltage - Supply, Dual (V±) | ±3.3V ~ 8V |
| Switch Time (Ton, Toff) (Max) | 38ns, 152ns |
| -3db Bandwidth | 109MHz |
| Charge Injection | -12.4pC |
| Channel Capacitance (CS(off), CD(off)) | 19pF, 32pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -64dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
| Base Product Number | ADG1634 |

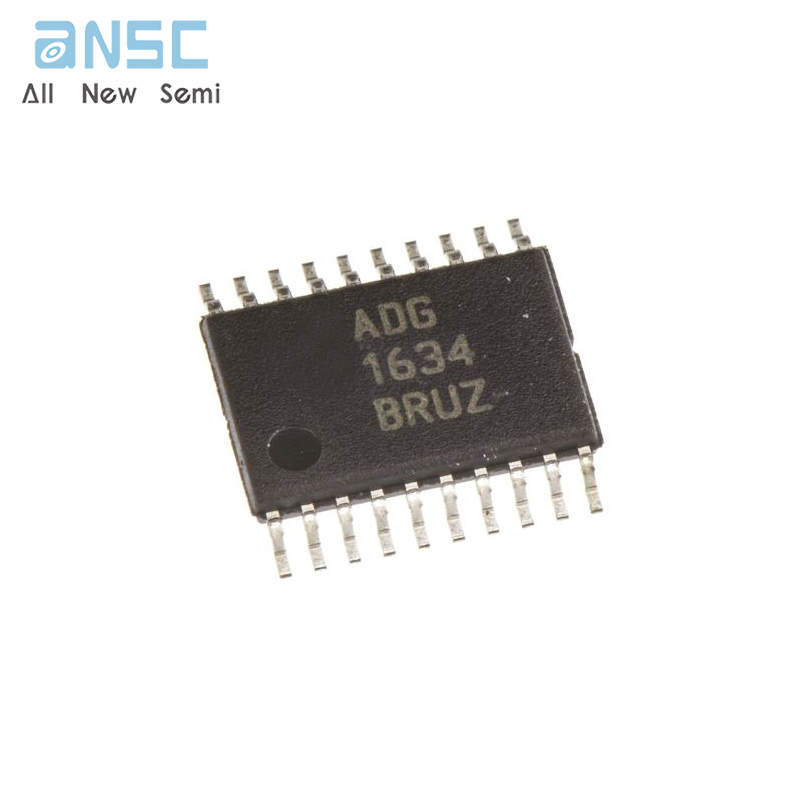

Product Photos
