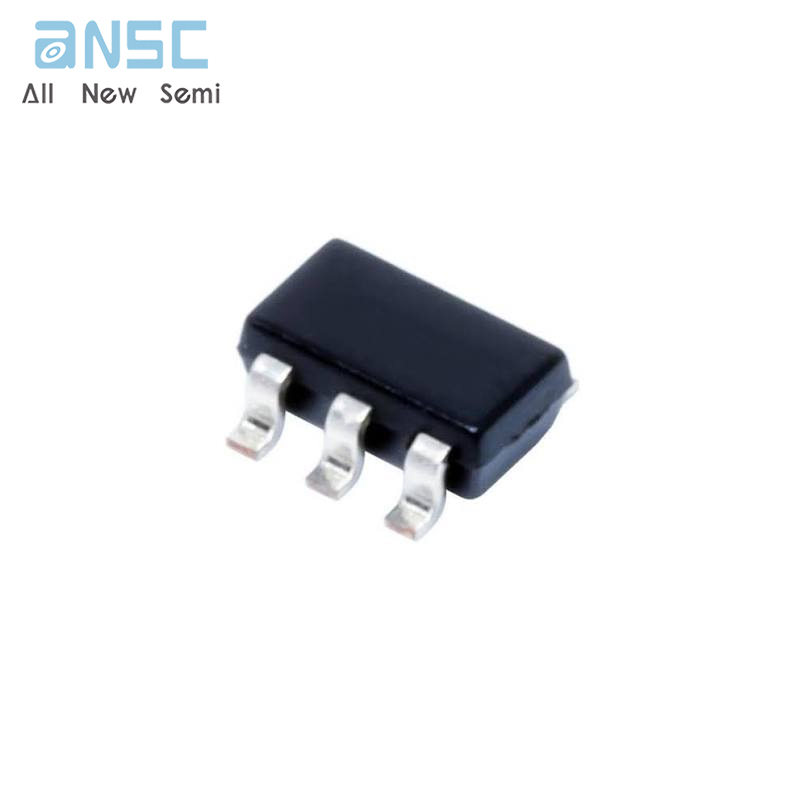

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce TL331IDBVRQ1 SINGLE DIFFERENTIAL COMPARATOR IC SOT23 spot stock
Manufacturer Product Number
TL331IDBVRQ1
Description
TL331IDBVRQ1 SINGLE DIFFERENTIAL COMPARATOR IC SOT23 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
This device consists of a single voltage comparator that is designed to operate from a single power supply over a wide range of voltages . Operation from dual supplies also is possible if the difference between the two suppliesis 2 V to 36 V and VCC is at least 1.5 V more positive than the input common-mode voltage . Current drain is independent of the supply voltage . The output can be connected to other open-collector outputs to achieve wired-AND relationships .
Product Features
• Qualified for Automotive Applications
• Single Supply or Dual Supplies
• Wide Range of Supply Voltage: 2 V to 36 V
• Low Supply-Current Drain Independent of Supply Voltage: 0.4 mA Typ
• Low Input Bias Current: 25 nA Typ
• Low Input Offset Voltage: 2 mV Typ
• Common-Mode Input Voltage Range Includes Ground
• Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: ±36 V
• Low Output Saturation Voltage
• Output Compatible With TTL, MOS, and CMOS
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TL331IDBVRQ1 |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Comparators | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Type | Standard (General Purpose) |
| Number of Elements | 1 |
| Output Type | Open-Collector, Rail-to-Rail |
| Voltage - Supply, Single/Dual(±) | 2V ~ 36V, ±1V ~ 18V |
| Voltage - Input Offset (Max) | 5mV @ 30V |
| Current - Input Bias (Max) | 0.25µA @ 5V |
| Current - Output (Typ) | 20mA |
| Current - Quiescent (Max) | 700µA |
| Operating Temperature | -40°C ~ 85°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Package / Case | SC-74A, SOT-753 |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | TL331 |
Product Photos
For more product information, please download the PDF
