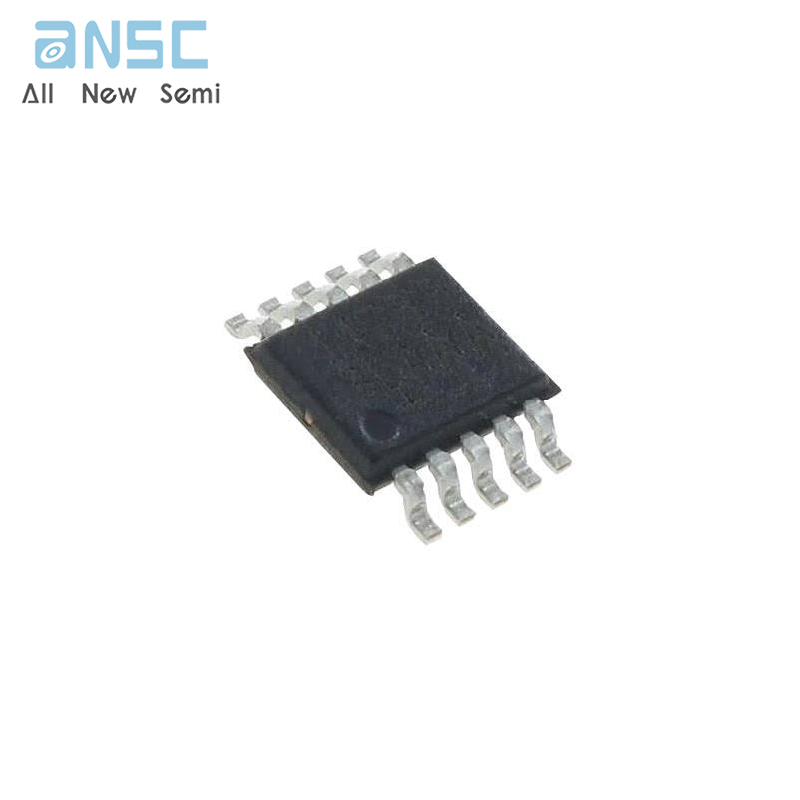

Hot-selling and scarce MAX9174EUB+ 670MHz LVDS-to-LVDS and Anything-to-LVDS 1:2 Splitters MSOP10 spot stock

Product Descriptions

The MAX9174/MAX9175 are 670MHz, low-jitter, lowskew 1:2 splitters ideal for protection switching, loopback, and clock and signal distribution. The devices feature ultra-low  1.0ps (RMS) random jitter (max) that ensures reliable operation in high-speed links that are highly sensitive to timing errors.

The MAX9174 has a fail-safe LVDS input and LVDS outputs. The MAX9175 has an anything differential input(CML/LVDS/LVPECL) and LVDS outputs. The outputs can be put into high impedance using the power-down inputs. The MAX9174 features a fail-safe circuit that drives the outputs high when the input is open, undriven and shorted, or undriven and terminated. The MAX9175 has a bias circuit that forces the outputs high when the input is open. The power-down inputs are compatible with standard LVTTL/LVCMOS logic. The power-down inputs tolerate undershoot of -1V and overshoot of V CC+ 1V. The MAX9174/MAX9175 are available in 10-pinµMAX and 10-lead thin QFN with exposed pad packages, and operate from a single +3 .3V supply over the-40°C to +85°C temperature range.

Product Features

♦  1.0ps (RMS)Jitter (max) at 670MHz

♦  80ps (P-P)Jitter (max) at 800Mbps Data Rate

♦  +3.3V Supply

♦  LVDS Fail-Safe Inputs (MAX9174)

♦ Anything Input (MAX9175) Accepts Differential CML/LVDS/LVPECL

♦  Power-Down Inputs Tolerate -1.0V and V CC + 1.0V

♦  Low-Power CMOS Design

♦  10-Lead µMAX and Thin QFN Packages

♦ -40°C to +85°C Operating Temperature Range

♦  Conform to ANSI TIA/EIA-644 LVDS Standard

♦  IEC 61000-4-2 Level 4 ESD Rating

Product Applications

Protection Switching

Loopback

Clock Distribution

Product Specification

Product Photos

For more product information, please download the PDF
