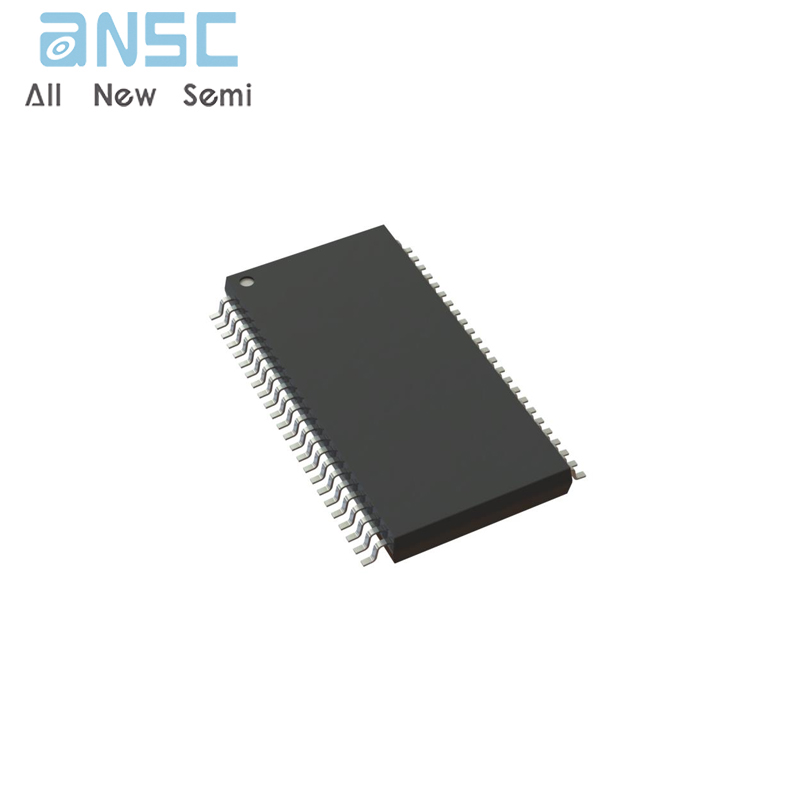

74LCX162244MTDX Low Voltage 16-Bit Buffer/Line Driver with 26ohm Series Resistors in Outputs TSSOP48Q spot stock

Product Descripitons

The LCX162244 contains sixteen non-inverting buffers with 3-STATE outputs designed to be employed as a memory and address driver, clock driver, or bus oriented transmitter/receiver. The device is nibble controlled. Each nibble has separate 3-STATE control inputs which can be shorted together for full 16-bit operation.

The LCX162244 is designed for low voltage (2.5V or 3.3V) VCC applications with capability of interfacing to a 5V signal environment.

In addition, the outputs include equivalent 26: (nominal) series resistors to reduce overshoot and undershoot and are designed to sink/source up to 12 mA at VCC 3.0V.

The LCX162244 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.

Product Features

■ 5V tolerant inputs and outputs

■ 2.3V–3.6V VCC specifications provided

■ Outputs include equivalent series resistance of 26: to make external termination resistors unnecessary and reduce overshoot and undershoot

■ 5.3 ns tPD max (VCC 3.0V), 20 PA ICC max

■ Power down high impedance inputs and outputs

■ r12 mA output drive (VCC 3.0V)

■ Implements patented noise/EMI reduction circuitry

■ Latch-up performance exceeds 500 mA

■ ESD performance:

Human body model ! 2000V Machine model ! 200V

■ Also packaged in plastic Fine-Pitch Ball Grid Array (FBGA) (Preliminary)

Product Specification

Product Photos

、

For more product information, please download the PDF
