Hot-selling and scarce AP2318M-ADJTRG1 600mA ULDO REGULATOR WITH ENABLE SOP8
Manufacturer Product Number
AP2318M-ADJTRG1
Description
AP2318M-ADJTRG1 600mA ULDO REGULATOR WITH ENABLE SOP8
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The AP2318 is a series of ultra low dropout regulators optimized for low voltage applications where transient response and minimum input voltage are critical.
The AP2318 provides current limit and thermal shutdown. Its circuit includes a trimmed bandgap reference to assure output voltage accuracy to be within ±1 percent. On-chip thermal shutdown provides protection against any combination of overload and ambient temperatures that would create excessive junction temperatures.
The AP2318 has both fixed and adjustable versions. The 1.3V fixed versions integrate the corresponding resistor divider. The adjustable version can set the output voltage through two external resistors.
The AP2318 is available in the standard DFN-3×3-8 and SOIC-8 packages.
Product Features
· Wide Operating Voltage Ranges: 2.5V to 12V
· Output Voltage Accuracy: ±1 percent
· On-chip Thermal Shutdown
· ESD: Human Body Model 3kV Machine Model 600V
· Operating Junction Temperature: -40°C to 125°C
Product Applications
· Notebook
· USB Device
· Add-on Card
· DVD Player
· PC Motherboard
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-AP2318M-ADJTRG1 |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 12V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 11.65V |
| Voltage Dropout (Max) | 0.35V @ 600mA (Typ) |
| Current - Output | 600mA |
| Current - Quiescent (Iq) | 250 µA |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | AP2318 |

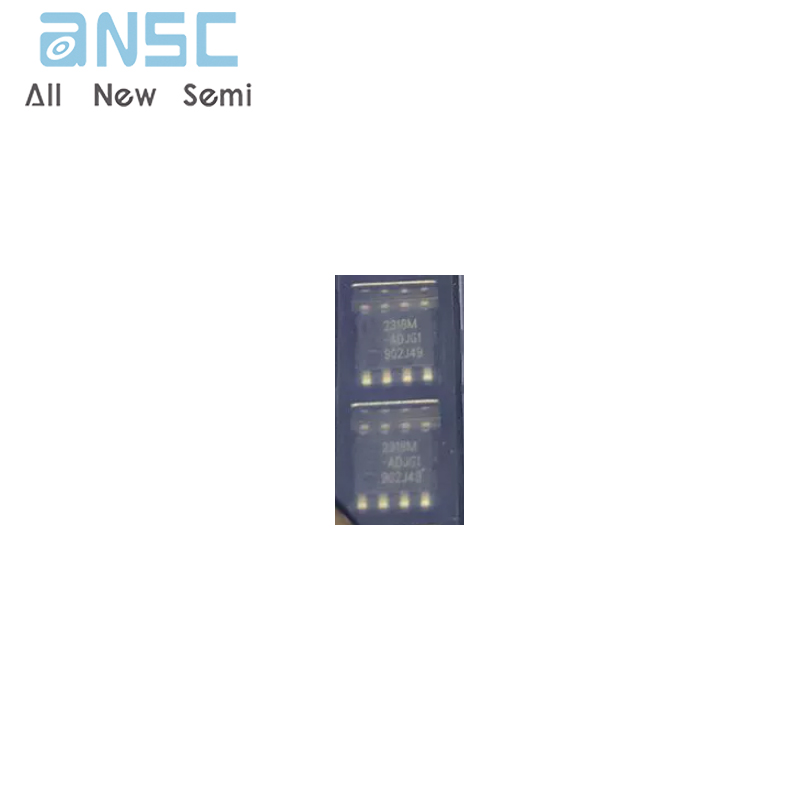

Product Photos
