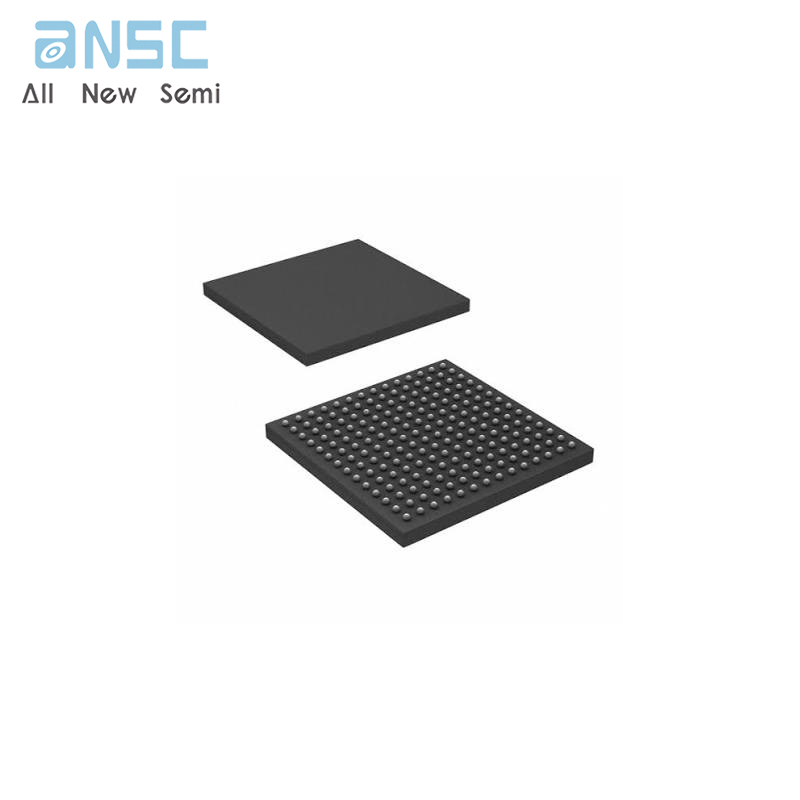

Hot-selling and scarce SCAN921260UJB/NOPB Deserializer with IEEE 1149.1 (JTAG) and at-speed BIST BGA spot stock

Product Descriptions

The SCAN921260 integrates six deserializer devices into a single chip. The SCAN921260 can simultaneously deserialize up to six data streams that have been serialized by the Texas Instruments SCAN921023 Bus LVDS serializer. The device also includes a seventh serial input channel that serves as a redundant input.

Each deserializer block in the SCAN921260 operates independently with its own clock recovery circuitry and lock-detect signaling.

The SCAN921260 uses a single +3.3V power supply with an estimated power dissipation of 1.2W at 3.3V with a PRBS-15 pattern. Refer to the Connection Diagrams for packaging information.

​

Product Features

• IEEE 1149.1 (JTAG) Compliant and At-Speed

• Deserializes One to Six BusLVDS Input Serial Data Streams With Embedded Clocks

• Seven Selectable Serial Inputs to Support N+1 Redundancy of Deserialized Streams

• Seventh Channel Has Single Pin Monitor Output That Reflects Input From Seventh Channel Input

• Parallel Clock Rate Up To 66 MHz

• On Chip Filtering for PLL

• High Impedance Inputs Upon Power Off (Vcc =0V)

• Single Power Supply at +3.3V

• 196-Pin NFBGA Package (Low-Profile Ball Grid Array) Package

• Industrial Temperature Range Operation: −40 to +85

Product Specification

Product Photos

For more product information, please download the PDF
