Hot-selling and scarce MIC49300WR 3.0A Low Voltage LDO Regulator w/Dual Input Voltages SPAK-5 spot stock

Product Descriptions

The MIC49300 is a high-bandwidth, low-dropout, 3.0A voltage regulator ideal for powering core voltages of low-power  microprocessors. The MIC49300 implements a dual supply  confi guration allowing for very low output impedance and  very fast transient response.

The MIC49300 requires a bias input supply and a main input  supply, allowing for ultra-low input voltages on the main supply  rail. The input supply operates from 1.4V to 6.5V and the bias  supply requires between 3V and 6.5V for proper operation.  The MIC49300 offers fi xed output voltages from 0.9V to 1.8V  and adjustable output voltages down to 0.9V.

The MIC49300 requires a minimum of output capacitance for  stability, working optimally with small ceramic capacitors.

The MIC49300 is available in a 5-pin S-Pak. It operates over  a junction temperature range of –40°C to +125°C.

Product Features

• Input Voltage Range:

VIN: 1.4V to 6.5V

VBIAS: 3.0V to 6.5V

• Stable with 1µF ceramic capacitor

• ±1% initial tolerance

• Maximum dropout voltage (VIN-VOUT) of 500mV over temperature

• Adjustable output voltage down to 0.9V

• Ultra fast transient response (Up to 10MHz bandwidth)

• Excellent line and load regulation specifi cations

• Logic controlled shutdown option

• Thermal shutdown and current limit protection

• Power S-Pak package

• Junction temperature range: –40°C to 125°C

Product Applications

• Graphics processors

• PC Add-In Cards

• Microprocessor core voltage supply

• Low voltage digital ICs

• High Effi ciency Linear power supplies

• SMPS post regulators

Product Specification

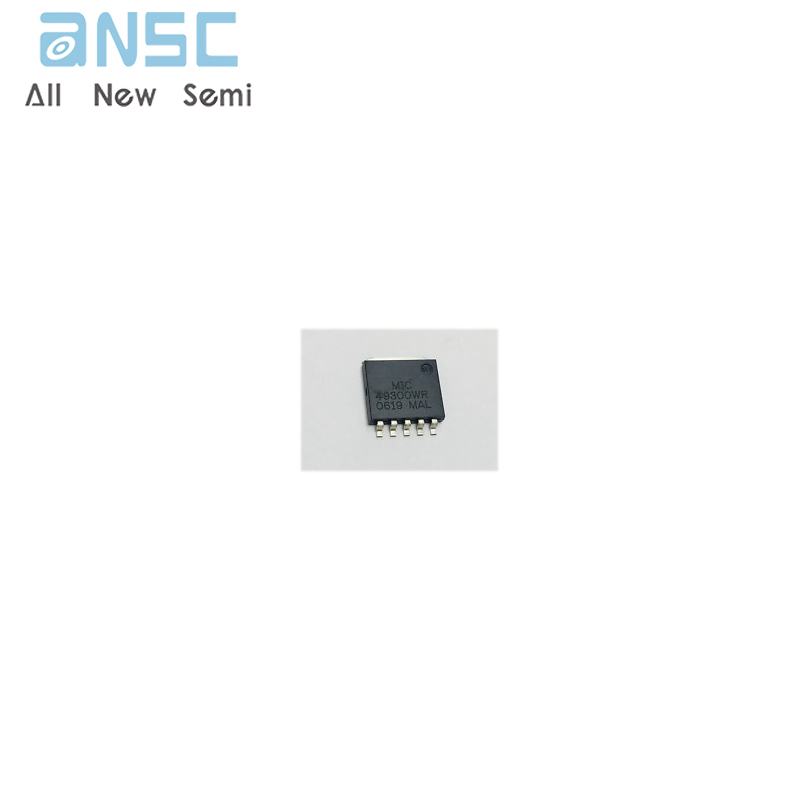

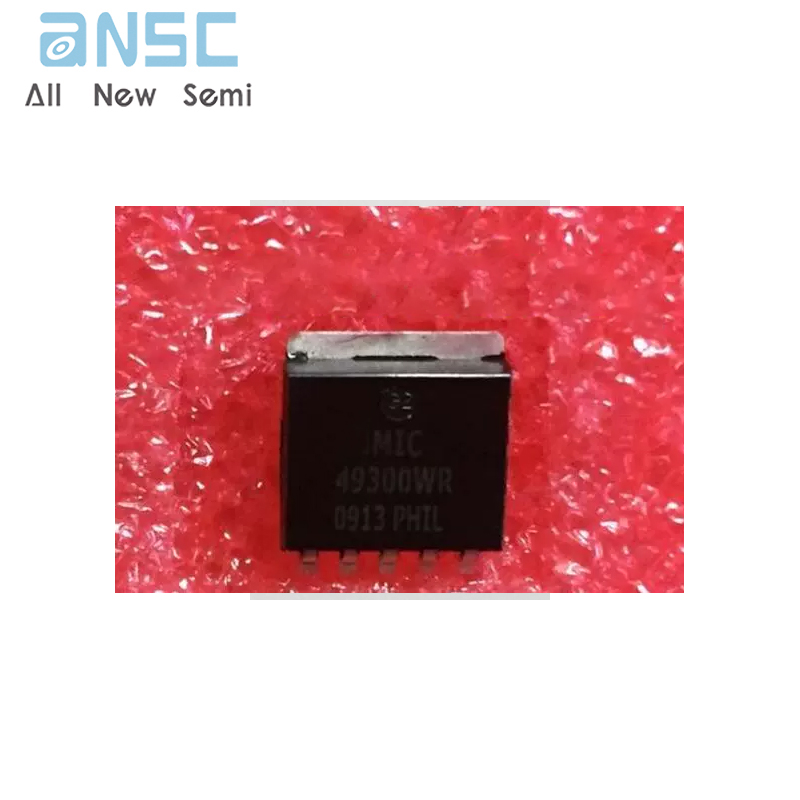

Product Photos

For more product information, please download the PDF
