Hot-selling and scarce 74ACT08 QUAD 2-INPUT AND GATE SOP14 spot stock

Product Descriptions

The 74ACT08 is an advanced high-speed CMOS QUAD 2-INPUT AND GATE fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS tecnology.

The internal circuit is composed of 2 stages including buffer output, which enables high noise immunity and stable output.

The device is designed to interface directly High Speed CMOS systems with TTL, NMOS and CMOS output voltage levels.

All inputs and outputs are equipped with protection circuits against static discharge, giving them 2KV ESD immunity and transient excess voltage.

Product Features

■ HIGH SPEED: tPD = 4.5ns (TYP.) at VCC = 5V

■ LOW POWER DISSIPATION:

ICC = 2µA(MAX.) at TA=25°C

■ COMPATIBLE WITH TTL OUTPUTS

VIH = 2V (MIN.), VIL = 0.8V (MAX.)

■ 50Ω TRANSMISSION LINE DRIVING

CAPABILITY

■ SYMMETRICAL OUTPUT IMPEDANCE:

|IOH| = IOL = 24mA (MIN)

■ BALANCED PROPAGATION DELAYS:

tPLH ≅ tPHL

■ OPERATING VOLTAGE RANGE:

VCC (OPR) = 4.5V to 5.5V

■ PIN AND FUNCTION COMPATIBLE WITH

74 SERIES 08

■ IMPROVED LATCH-UP IMMUNITY

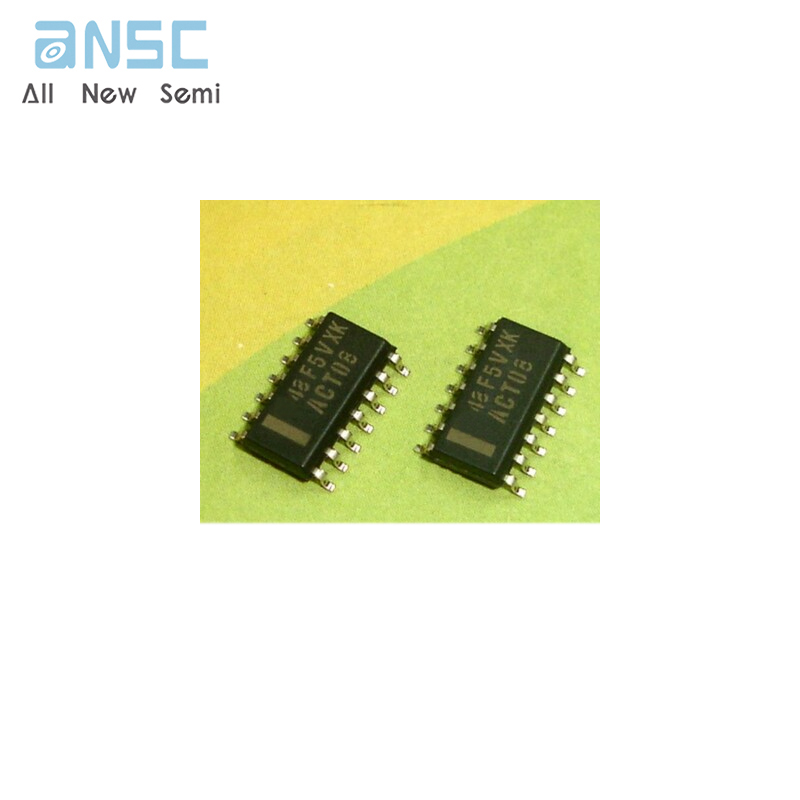

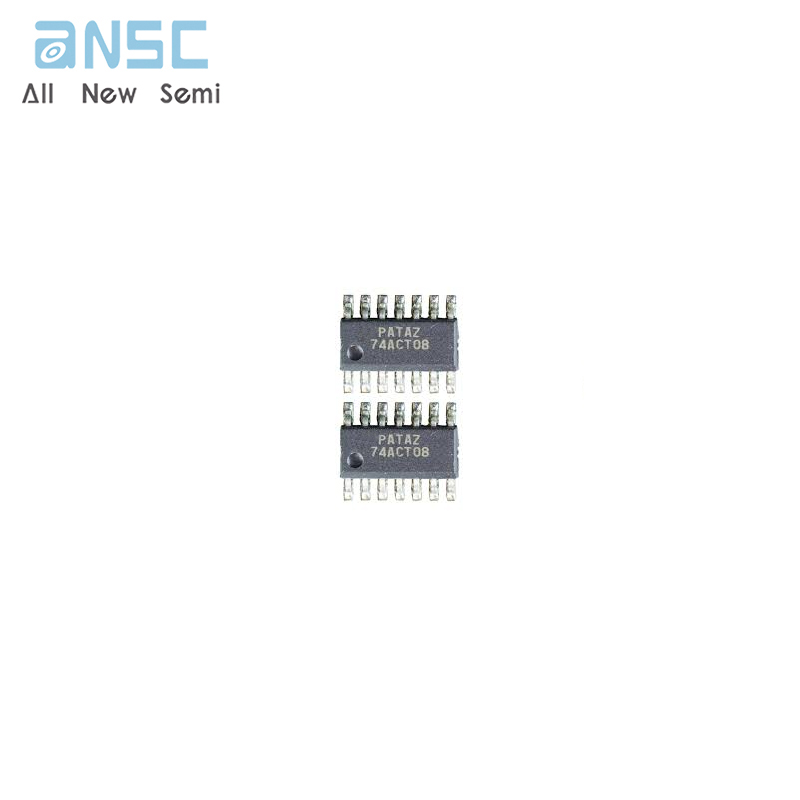

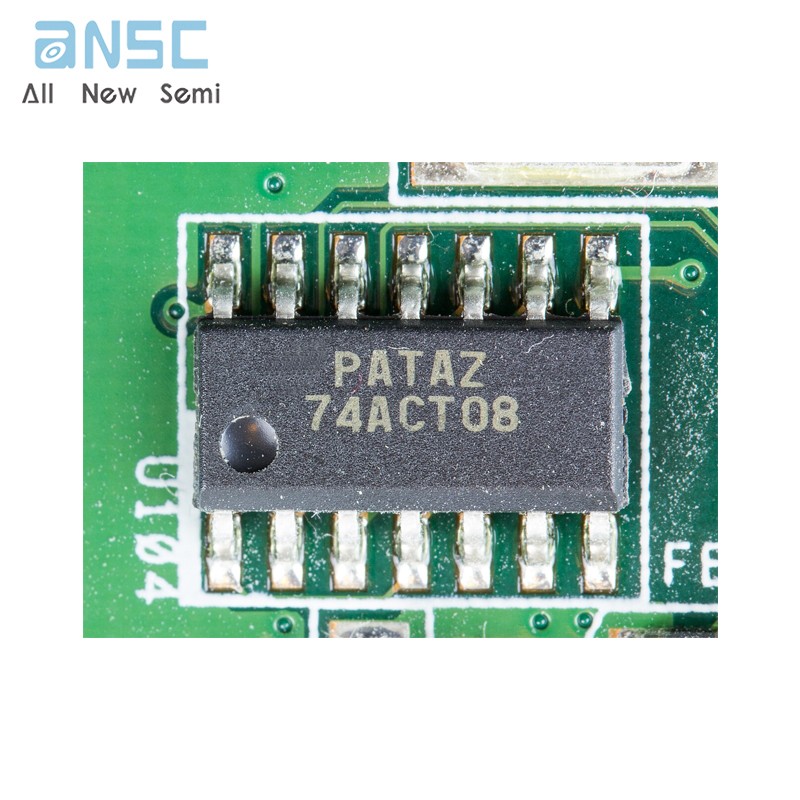

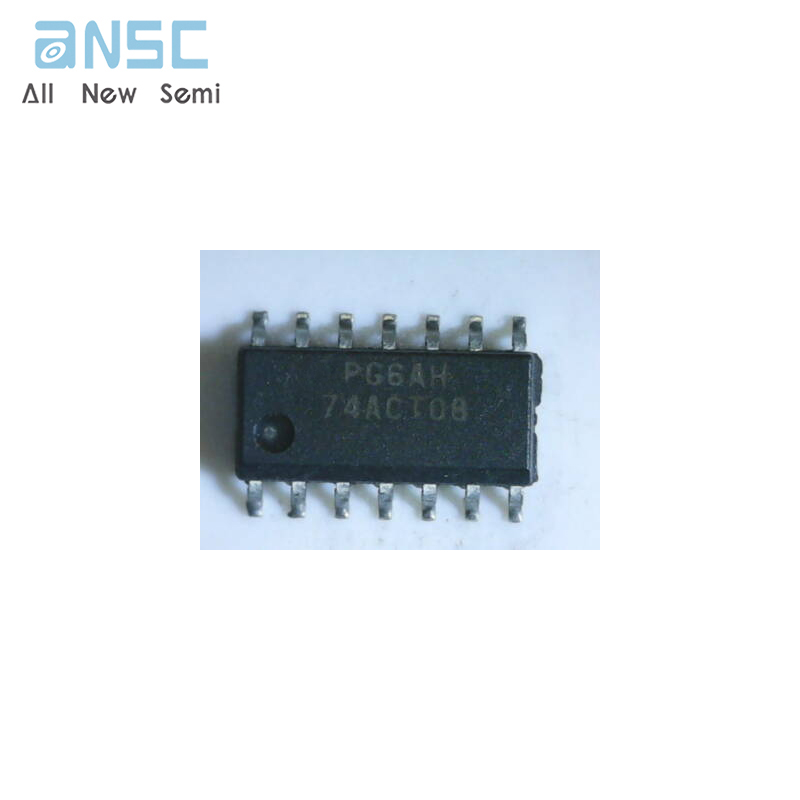

Product Photos

For more product information, please download the PDF
