Hot-selling and scarce PMV40UN-215 30 V N-channel Trench MOSFET SOT23 spot stock
Manufacturer Product Number
PMV40UN,215
Description
PMV40UN-215 30 V N-channel Trench MOSFET SOT23 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
N-channel enhancement mode Field-Effect Transistor (FET) in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.
Product Features
• Trench MOSFET technology
• Low threshold voltage
• Very fast switching
• Enhanced power dissipation capability of 1000 mW
Product Applications
• LED driver
• Power management
• Low-side load switch
• Switching circuits
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-PMV40UN,215 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | - |
| Series | TrenchMOS™ |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 4.9A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 47mOhm @ 2A, 4.5V |
| Vgs(th) (Max) @ Id | 700mV @ 1mA (Typ) |
| Gate Charge (Qg) (Max) @ Vgs | 9.3 nC @ 4.5 V |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 445 pF @ 30 V |
| Power Dissipation (Max) | 1.9W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23 (TO-236AB) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Base Product Number | PMV4 |

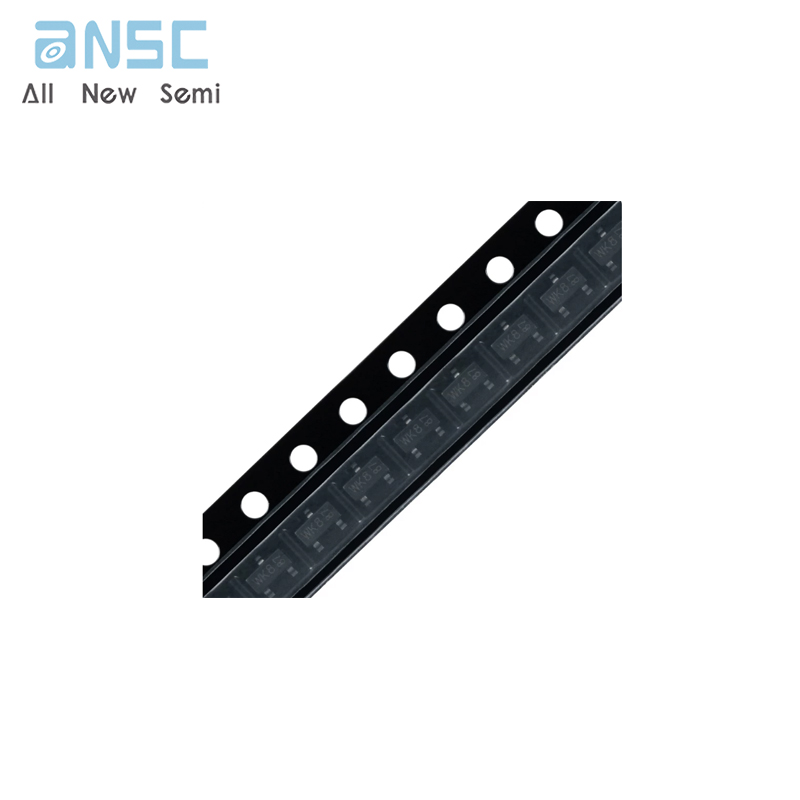

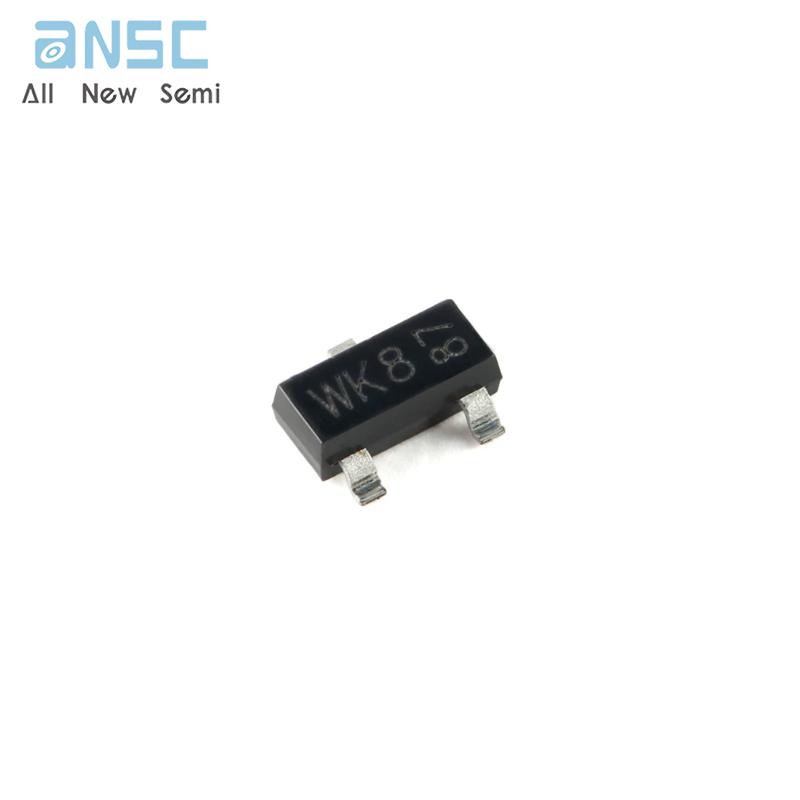

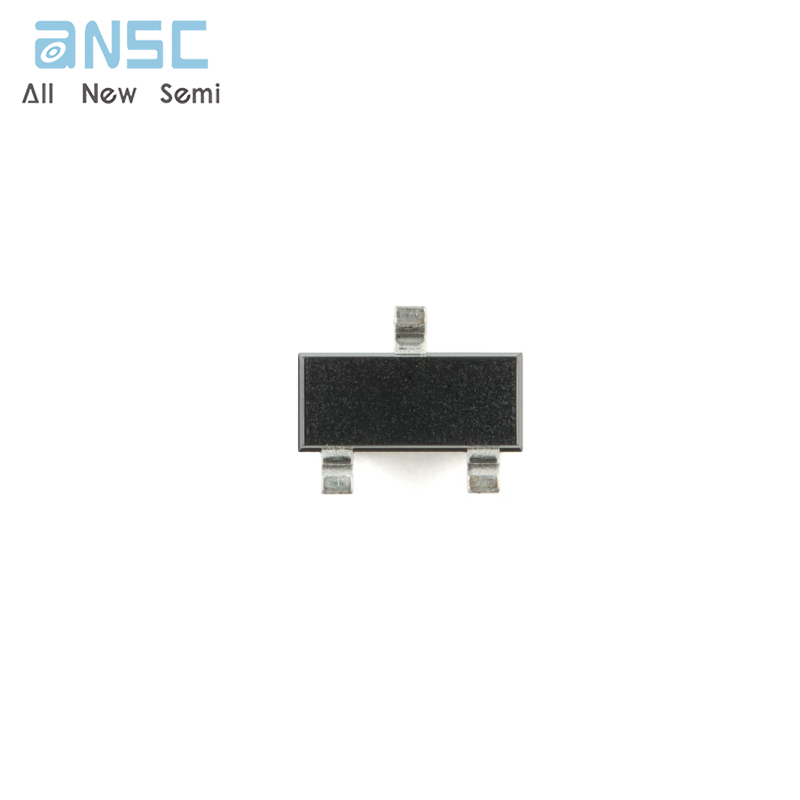

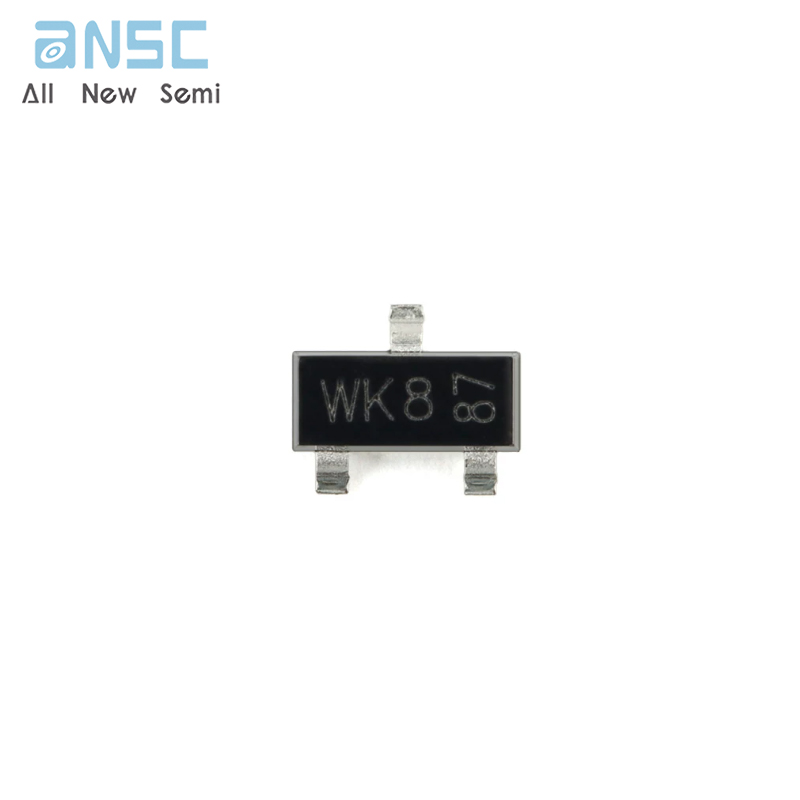

Product Photos
