Hot-selling and scarce MP2234GJ-Z High-Efficiency 2A 16V 800kHz Synchronous Step-Down Converter SOT23-8 spot stock
Manufacturer Product Number
MP2234GJ-Z
Description
MP2234GJ-Z High-Efficiency, 2A, 16V, 800kHz Synchronous, Step-Down Converter SOT23-8 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The MP2234 is a high-frequency, synchronous, rectified, step-down, switch-mode converter with built-in power MOSFETs. It offers a very compact solution to achieve a 2A continuous output current with excellent load and line regulation over a wide input supply range. The MP2234 has synchronous mode operation for higher efficiency over the output current load range.
Current-mode operation provides fast transient response and eases loop stabilization.
Full protection features include over-current protection and thermal shut down.
The MP2234 requires a minimal number of readily-available standard external components, and is available in a space-saving 8-pin TSOT23 package.
Product Features
Wide 4.5V-to-16V Operating Input Range
100mΩ/40mΩ Low RDS(ON) Internal Power MOSFETs
High-Efficiency Synchronous Mode Operation
Fixed 800kHz Switching Frequency
Synchronizes from a 300kHz-to-2MHz External Clock
Power-Save Mode at Light Load
External Soft-Start
OCP Protection and Hiccup
Thermal Shutdown
Output Adjustable from 0.8V
Available in an 8-pin TSOT-23 Package
Product Applications
Notebook Systems and I/O Power
Digital Set-Top Boxes
Flat-Panel Television and Monitors
Distributed Power Systems
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MP2234GJ-Z |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Not For New Designs |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 14.4V |
| Current - Output | 2A |
| Frequency - Switching | 800kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-8 Thin, TSOT-23-8 |
| Supplier Device Package | TSOT-23-8 |
| Base Product Number | MP2234 |

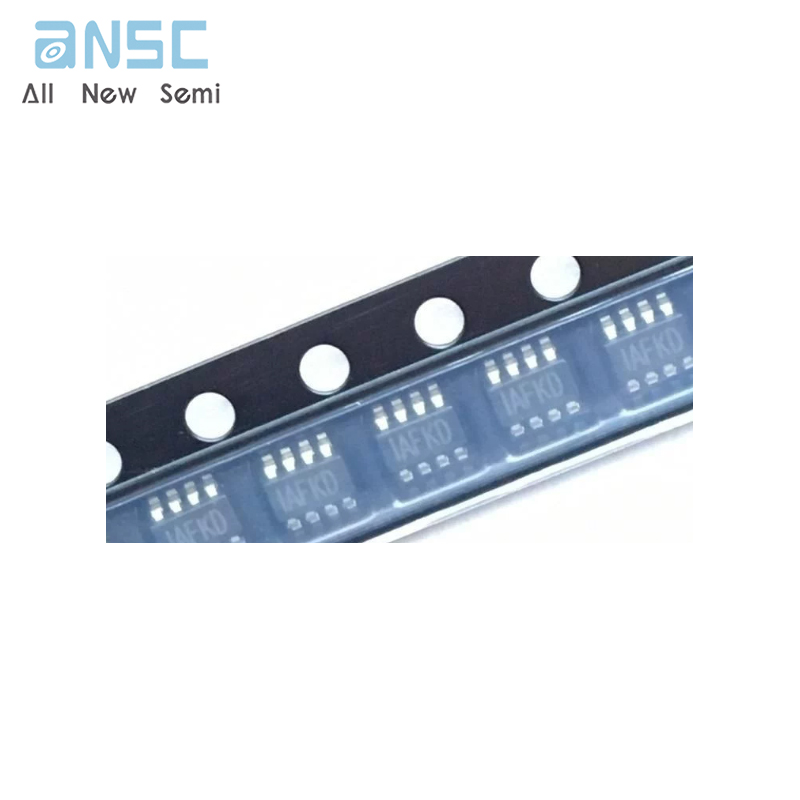

Product Photos
For more product information, please download the PDF
Other Products In The same category:
MP2234GJ-Z High-Efficiency, 2A, 16V, 800kHz Synchronous, Step-Down Converter SOT23-8 spot stock
127In stock:
Can ship immediately
