Hot-selling and scarce PCF8574T 8-Bit I/O Expander for I2C Bus SOP16 spot stock
Manufacturer Product Number
PCF8574T
Description
PCF8574T 8-Bit I/O Expander for I2C Bus SOP16 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The PCF8574 is mainly used to expand generalpurpose input and output (GPIO)ports.Port data is transmitted via the standard two-line I2C protocol. The PCF8574 features 8-bit quasi-bidirectional GPIO ports (P0~P7),which can directly drive LEDs.Each quasi-bidirectional GPIO port can be used as an input or output without the use of a data-direction control signal.After power on,all GPIO ports are high.
Product Features
I/O interface expander controlled by I2C
Power supply voltage:1.6V ~5.5V
Operating temperature:-40°C ~+85°C
Standby power consumption:<1µA
Can drive LED directly
Open-drain interrupt output
Product Applications
Communication cabinet
Servers
Industrial automation
Products with GPIO-Limited Processors
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-PCF8574T |
| Category | Integrated Circuits (ICs) |
| Interface | |
| I/O Expanders | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Number of I/O | 8 |
| Interface | I2C, SMBus |
| Interrupt Output | Yes |
| Features | POR |
| Output Type | Push-Pull |
| Current - Output Source/Sink | 310µA, 25mA |
| Clock Frequency | 100 kHz |
| Voltage - Supply | 2.5V ~ 6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOP |

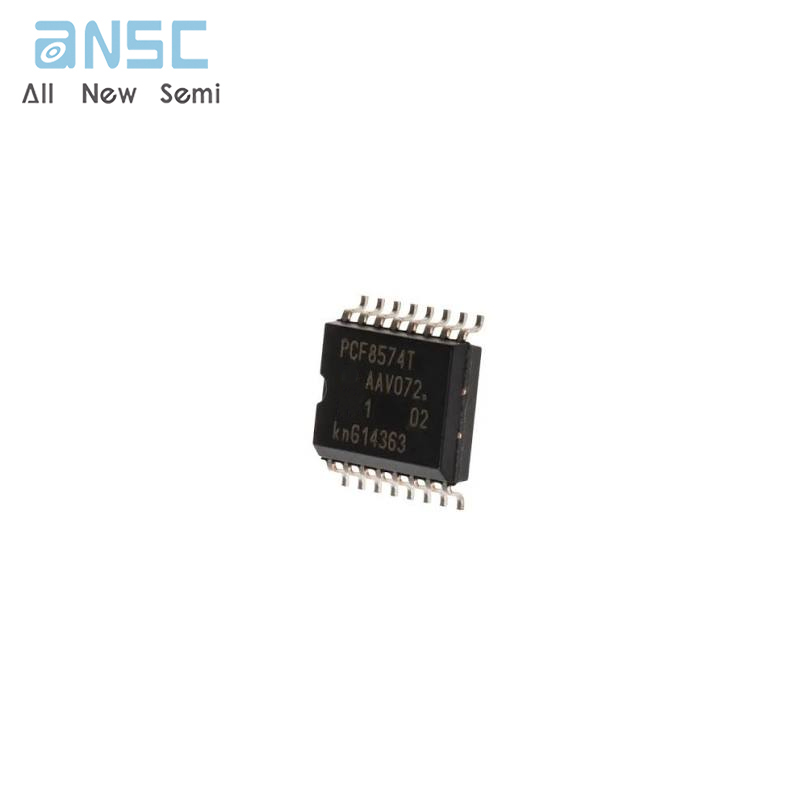

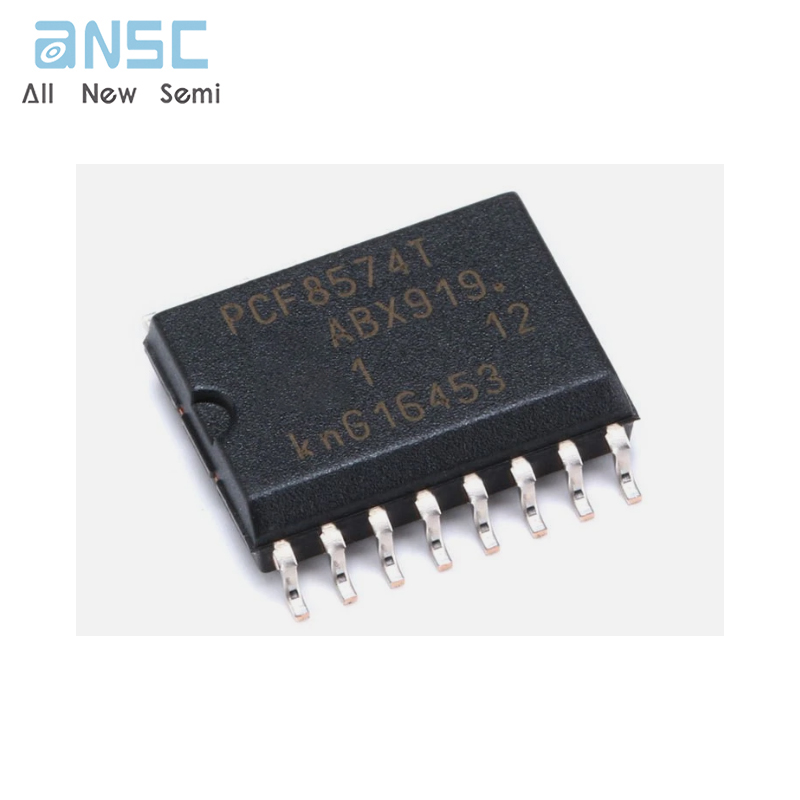

Product Photos
For more product information, please download the PDF
WhenCE is HIGH (deselected),the device assumes a standby mode at which the power dissipation can be reduced down to250 µW (typical) with CMOS input levels.
