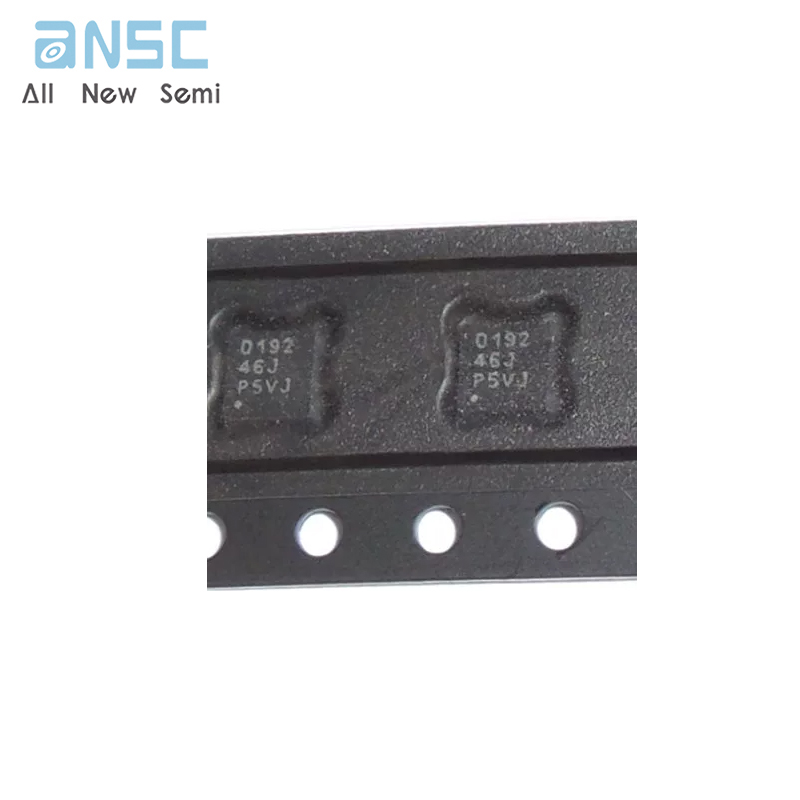

TPS40192DRCT 4.5-V to 18-V Input, Voltage-Mode, Synchronous Buck Controller With Power Good QFN-10 spot stock

Product Descriptions

TPS40192 and TPS40193 are cost-optimized synchronous buck controllers that operate from 4.5 V to 18 V input. These controllers implement a voltagemode control architecture with the switching frequency fixed at either 600 kHz (TPS40192) or 300 kHz (TPS40193). The higher switching frequency facilitates the use of smaller inductor and output capacitors, thereby providing a compact powersupply solution. An adaptive anti-cross conduction scheme is used to prevent shoot through current in the power FETs.

Short circuit detection is done by sensing the voltage drop across the low-side MOSFET when it is on and comparing it with a user selected threshold of 100 mV, 200 mV or 280 mV. The threshold is set with a single external resistor connected from COMP to GND. This resistor is sensed at startup and the selected threshold is latched. Pulse-by-pulse limiting (to prevent current runaway) is provided by sensing the voltage across the high-side MOSFET when it is on and terminating the cycle when the voltage drop rises above a fixed threshold of 550 mV. When the controller senses an output short circuit, both MOSFETs are turned off and a timeout period is observed before attempting to restart. This behavior provides limited power dissipation in the event of a sustained fault.

Product Features

• Input Operating Voltage Range: 4.5 V to 18 V

• Up to 20-A Output Currents

• Supports Pre-Biased Outputs

• 0.5%, 591-mV Reference

• Switching Frequency

– TPS40192: 600 kHz

– TPS40193: 300 kHz

• Three Selectable Thermally Compensated ShortCircuit Protection Levels

• Hiccup Restart from Faults

• Internal 5-V Regulator

• High-Side and Low-Side MOSFET ON-resistance (RDS(on)) Current Sensing

• 10-Pin 3 mm × 3 mm SON Package

• Internal 4-ms Soft-Start Time

• Thermal Shutdown Protection at 145°C

Product Applications

• Cable Modem CPE

• Digital Set Top Box

• Graphics/Audio Cards

• Entry Level and Mid-Range Servers

Product Specification

Product Photos

For more product information, please download the PDF
