Spot sales of MX7228KN CMOS Octal 8-Bit D/A Converter DIP-24

Product Descriptions

MX7228 contains eight 8-bit voltage outputdigital-to-analog converters (DACs) with separateinput latches and output buffers for simple micro-processor and TTL/CMOS interfacing. The MX7228maintains 8-bit accuracy over the full operatingtemperature range without external trimming.

Internally, data transfer into the data registers is via acommon 8-bit TTL/CMOS compatible input bus.Logic inputs A2, A1, and A0 control which DAC isloaded after WR goes low.

Product Features

Buffered Voltage Outputu

uP Compatible

TTL/CMOS Logic Compatible

Requires No External Adjustments

24-Pin Narrow DIP Package

Operates from Single or Dual Supplies

Product Applications

Minimum Component Count Analog Systems

Digital Offset/Gain Adjustment

Industrial Process Control

Arbitrary Function Generators

Automatic Test Equipment

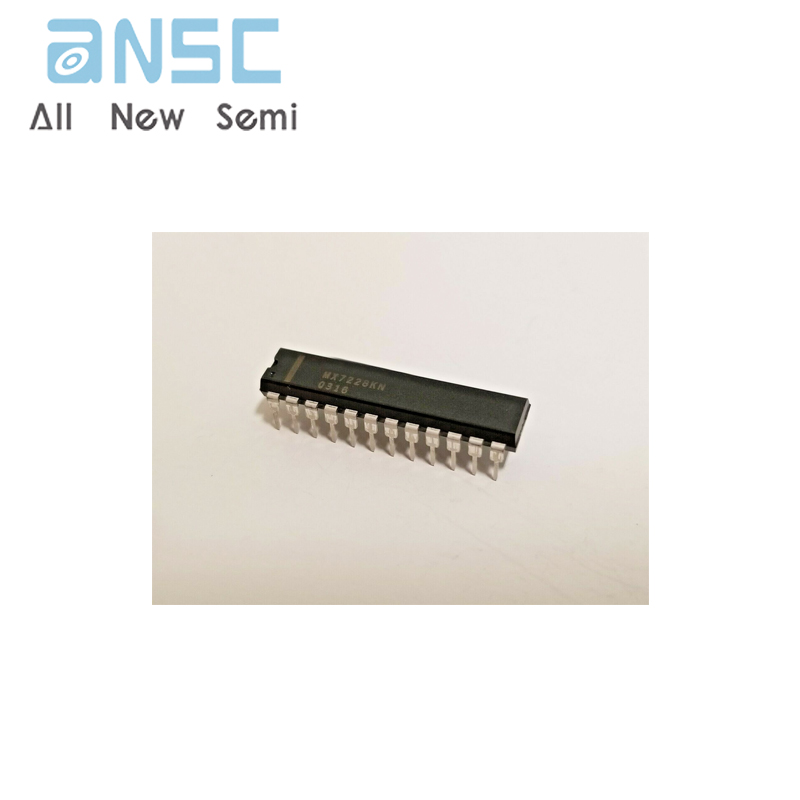

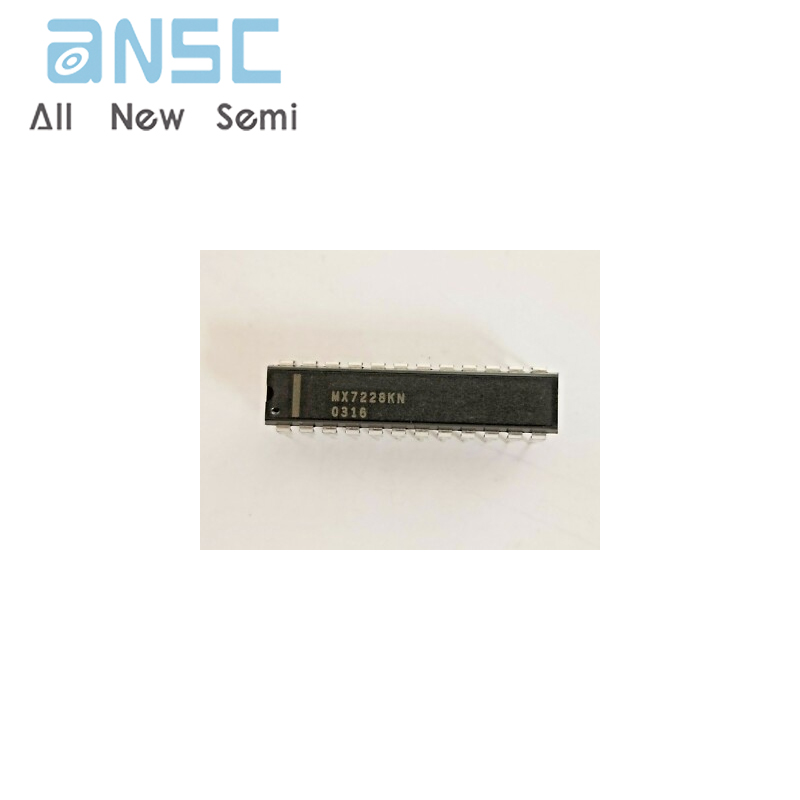

Product Photos

For more product information, please download the PDF
