Spot sales of CD4503BE CMOS Hex Buffer DIP-16
Manufacturer Product Number
CD4503BE
Description
CD4503BE CMOS Hex Buffer DIP-16
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
1 TTL-load output drive capability
2 output-disable controls
3-state outputs
Pin compatible with industry types MM80C97,MC14503, and 340097
5-V, 10-V, and 15-V parametric ratings
Maximum input current of 1 uA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C
Product Applications
3-state hex buffer for interfacing IC's with data buses
CMOS to TTL hex buffer
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-CD4503BE |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Manufacturer | - |
| Series | 4000B |
| Packaging | Tube |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 2, 4 (Hex) |
| Input Type | - |
| Output Type | Push-Pull |
| Current - Output High, Low | 14.1mA, 23mA |
| Voltage - Supply | 3V ~ 18V |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
| Base Product Number | CD4503 |

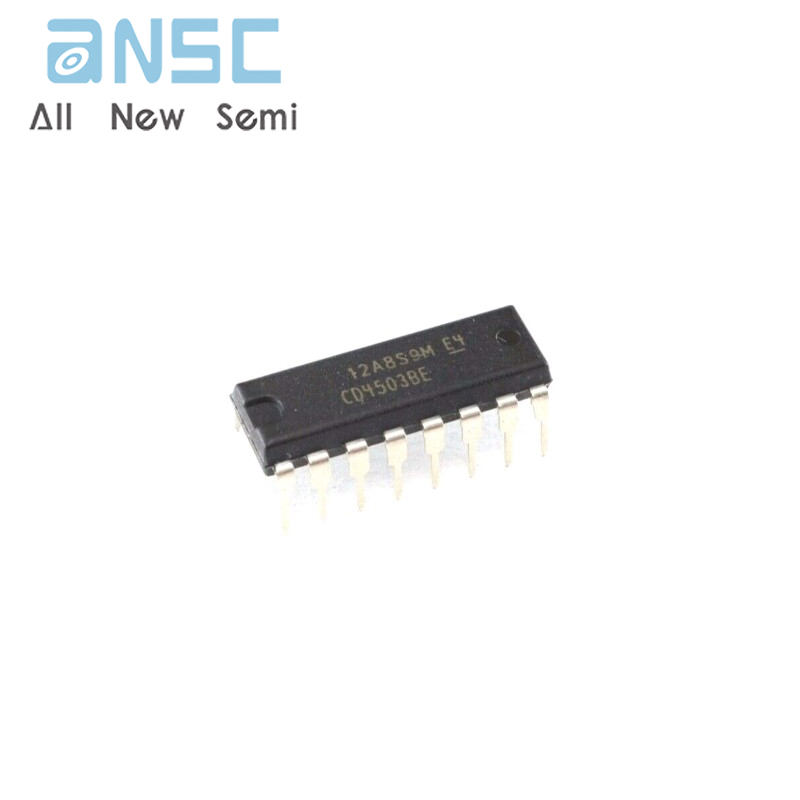

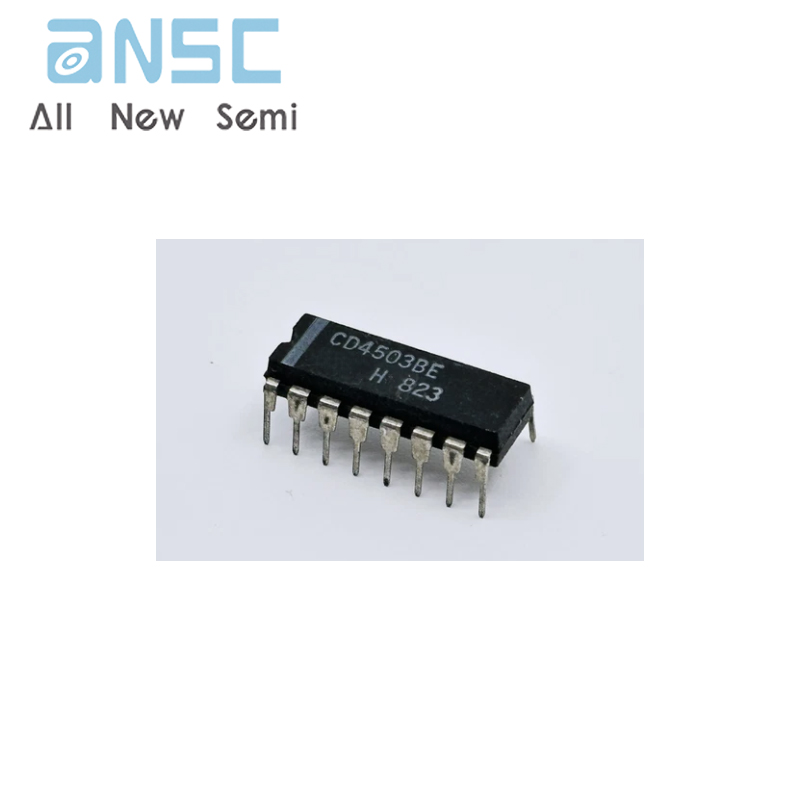

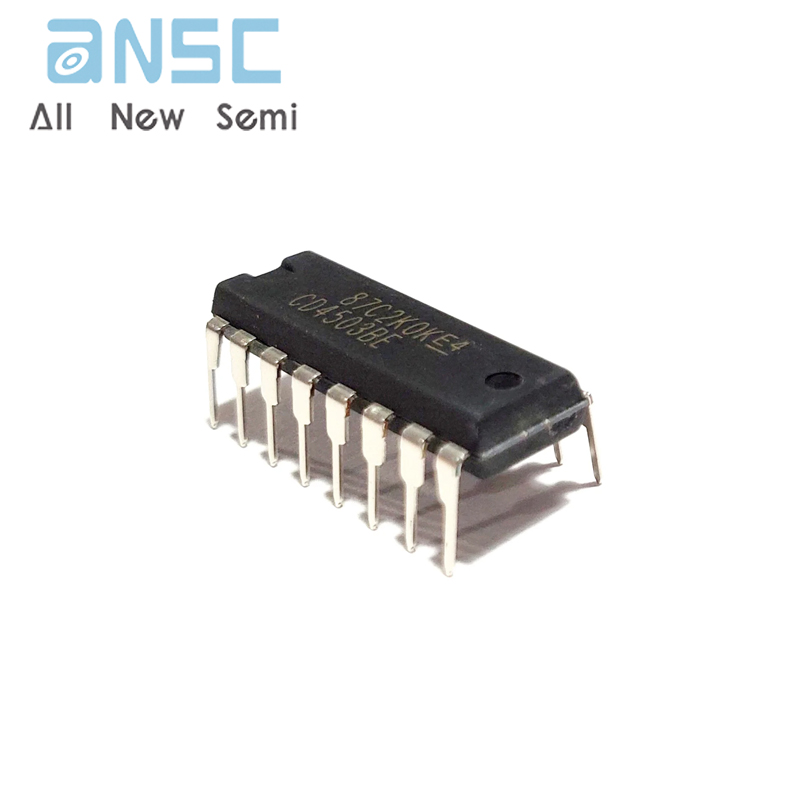

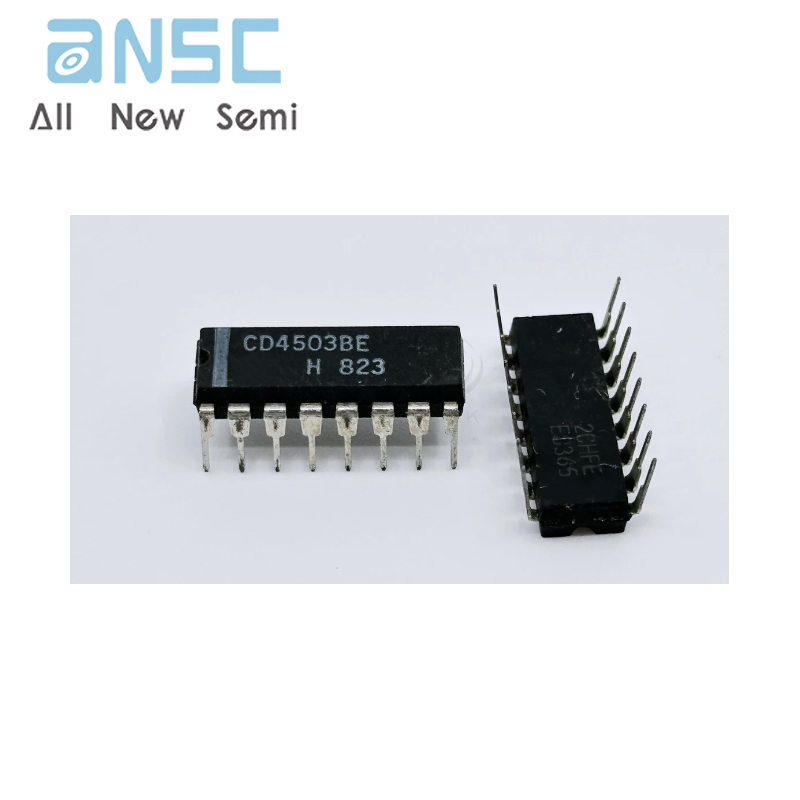

Product Photos
For more product information, please download the PDF
