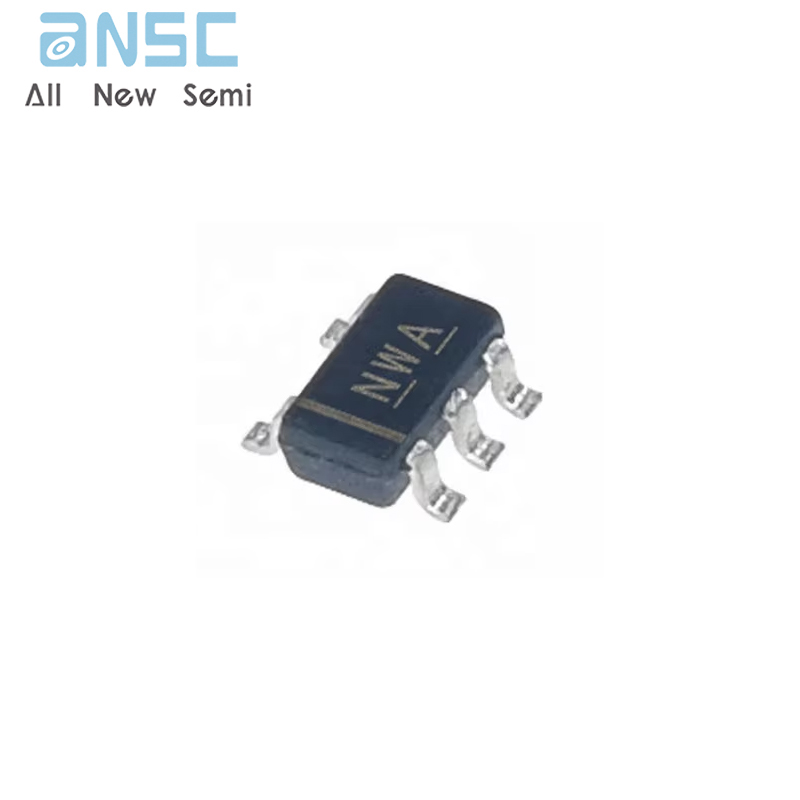

Hot-selling and scarce TPS3801K33DCKR ULTRA-SMALL SUPPLY VOLTAGE SUPERVISORS SC70-5 spot stock

Product Descriptions

The TPS380x family of supervisory circuits monitor supply voltages to provide circuit initialization and timing supervision, primarily for DSPs and other processor-based systems.

These devices assert a push-pull RESET signal when the SENSE (adjustable version) or VDD (fixed version) drops below a preset threshold. The RESET output remains asserted for the factory programmed delay timeafter the SENSE or VDD return above its threshold.

The TPS380x devices, except the TPS3801-01, incorporate a manual reset input (MR). A low level at MR causes RESET to be come active.

The TPS380x uses a precision reference to achieve an overallthresholdaccuracyof2% -2.5%. Thesedevices are available in a 5-pin SC-70 package, which is only about half the size of a 5-pin SOT-23 package.

The TPS380x devices are fully specified over a temperature range of -40°C to 85°C

Product Features

• Small, 5-Pin SC-70 (SOT-323) Package

• Supply Current of 9 µA

• Power-On Reset Generator With Fixed Delay Time

– TPS3800 = 100 ms

– TPS3801 = 200 ms

– TPS3802 = 400 ms

• Precision Supply Voltage Monitor 1.8 V, 2.5 V,2.7 V, 3 V, 3.3 V, 5 V, and Adjustable

• Manual Reset Input (Except TPS3801-01)

• Temperature Range: -40°C to 85°C

​

Product Applications

• Applications Using DSPs, Microcontrollers, or Microprocessors

• Wireless Communication Systems

• Portable/Battery-Powered Equipment

• Programmable Controls

• Intelligent Instruments

• Industrial Equipment

• Notebook/Desktop Computers

• Automotive Systems

Product Specification

Product Photos

For more product information, please download the PDF
