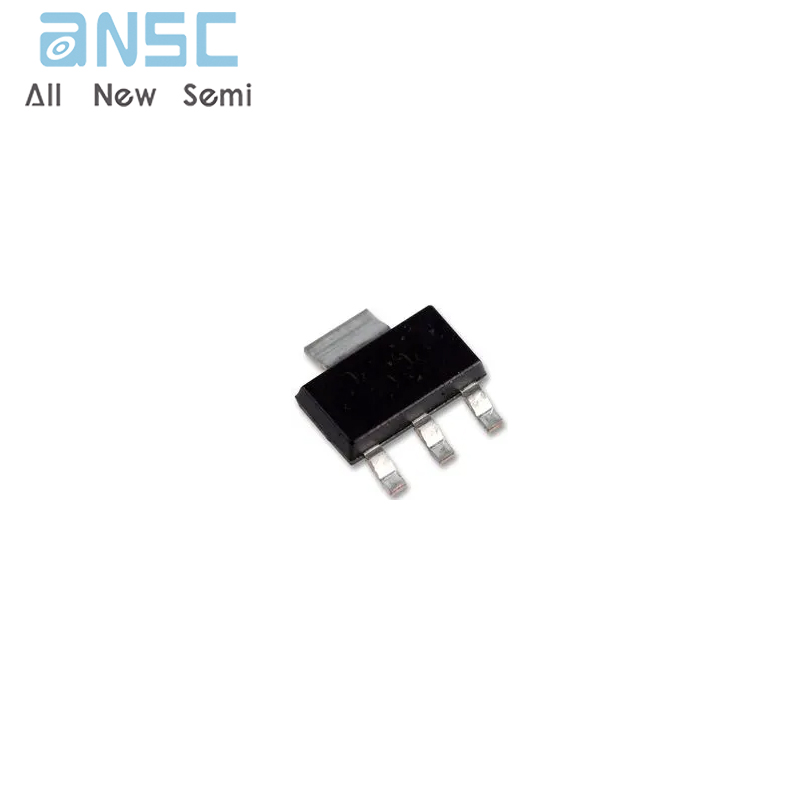

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce AP2111H-1.8TRG1 600mA CMOS LDO REGULATOR WITH ENABLE SOT223 spot stock
Manufacturer Product Number
AP2111H-1.8TRG1
Description
AP2111H-1.8TRG1 600mA CMOS LDO REGULATOR WITH ENABLE SOT223 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The AP2111 is CMOS process low dropout linear regulator with enable function, the regulator delivers a guaranteed 600mA (Min) continuous load current.
The AP2111 provides 1.2V 1.8V, 2.5V, 3.3V and 4.8V regulated output, and provides excellent output accuracy 1.5 PERCENT, it is also provides a excellent load regulation, line regulation and excellent load transient performance due to very fast loop response. The AP2111 has built-in auto discharge function.
The AP2111 features low power consumption.
The AP2111 is available in SOIC-8, PSOP-8 and SOT-223 packages.
Product Features
• Output Voltage Accuracy: ±1.5 PERCENT
• Output Current: 600mA (Min)
• Foldback Short Current Protection: 50mA
• Enable Function to Turn On/Off VOUT
• Low Dropout Voltage (3.3V):
250mV (Typ) @ IOUT=600mA
• Excellent Load Regulation: 0.2%/A (Typ)
• Excellent Line Regulation: 0.02%/V (Typ)
• Low Quiescent Current: 55µA (Typ)
• Low Standby Current: 0.01µA (Typ)
• Low Output Noise: 50µVRMS
• PSRR: 65dB @ f=1kHz, 65dB @ f=100Hz
• OTSD Protection
• Stable with 1.0µF Flexible Cap: Ceramic, Tantalum and Aluminum Electrolytic
• Operating Temperature Range: -40°C to 85°C
• ESD: MM 400V, HBM 4000V
Product Applications
• Laptop computer
• Potable DVD
• LCD Monitor
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-AP2111H-1.8TRG1 |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.8V |
| Voltage Dropout (Max) | 1.3V @ 600mA |
| Current - Output | 600mA |
| Current - Quiescent (Iq) | 80 µA |
| PSRR | 65dB (100Hz ~ 1kHz) |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223-3 |
| Base Product Number | AP2111 |
Product Photos
For more product information, please download the PDF
