Hot-selling and scarce MAX3221CPWG4 3-V TO 5.5-V SINGLE-CHANNEL RS-232 LINE DRIVER/RECEIVER IC SOP spot stock

Product Descriptions

The MAX3221 consists of one line driver, one line receiver, and a dual charge-pump circuit with ±15-kV ESD protection pin to pin (serial-port connection pins, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply.These devices operate at data signaling rates up to 250 kbit/s and a maximum of 30-V/µs driver output slew rate.

Product Features

RS-232 Bus-Pin ESD Protection Exceeds ±15 kV Using Human-Body Model (HBM)

Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU v.28 Standards

Operates With 3-V to 5.5-V VCC Supply

Operates Up To 250 kbit/s

One Driver and One Receiver

Low Standby Current . . . 1 µA Typical

External Capacitors . . . 4 × 0.1 µF

Accepts 5-V Logic Input With 3.3-V Supply

Alternative High-Speed Pin-Compatible Device (1 Mbit/s)

−  SNx5C3221

Auto-Powerdown Feature Automatically Disables Drivers for Power Savings

Applications

−  Battery-Powered, Hand-Held, and Portable Equipment

−  PDAs and Palmtop PCs

−  Notebooks, Subnotebooks, and Laptops

−  Digital Cameras

−  Mobile Phones and Wireless Devices

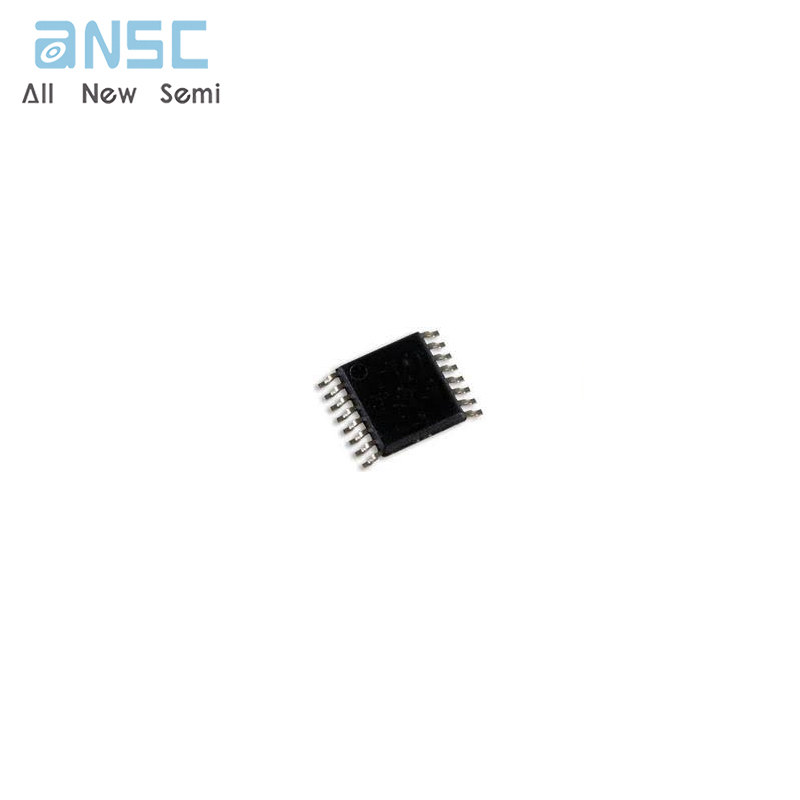

Product Photos

For more product information, please download the PDF
