Hot-selling and scarce MP6212DN-LF-Z 3.3V/5V, Single-Channel 1A Current-Limited Power Distribution Switch SOP-8

Product Descriptions

The MP6211/MP6212 single-channel Power Distribution Switch features internal current limiting to prevent damage to host devices due to faulty load conditions. The MP6211/MP6212 Analog switch has 90mΩ on-resistance and operates from 2.7V to 5.5V input. It is available with guaranteed current limits, making it ideal for load switching applications. The MP6211/MP6212 has built-in protection for both over current and increased thermal stress. For over current, the device will limit the current by changing to a constant current mode.

As the temperature increases as a result of short circuit, the device will shut off. The device will recover once the device temperature reduces to approx 120C.

The MP6211/MP6212 is available in an 8-PIN SOIC package with exposed pad.

Product Features

 1A Continuous Current

 Accurate Current Limit

 2.7V to 5.5V Supply Range

 90uA Quiescent Current

 90mΩ MOSFET

 Thermal-Shutdown Protection

 Under-Voltage Lockout

 8ms FLAG Deglitch Time

 No FLAG Glitch During Power Up

 Reverse Current Blocking

 Active High & Active Low Options

 SOIC8E package

 UL Recognized: E322138

Product Applications

 Smartphone and PDA

 Portable GPS Device

 Notebook PC

 Set-top-box

 Telecom and Network Systems

 USB Power Distribution

Product Specification

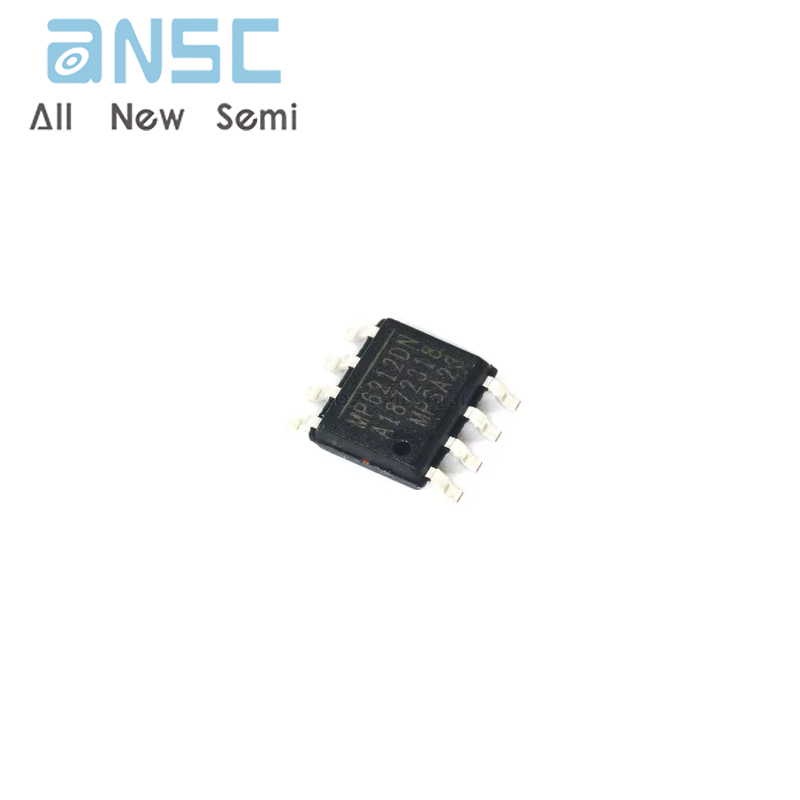

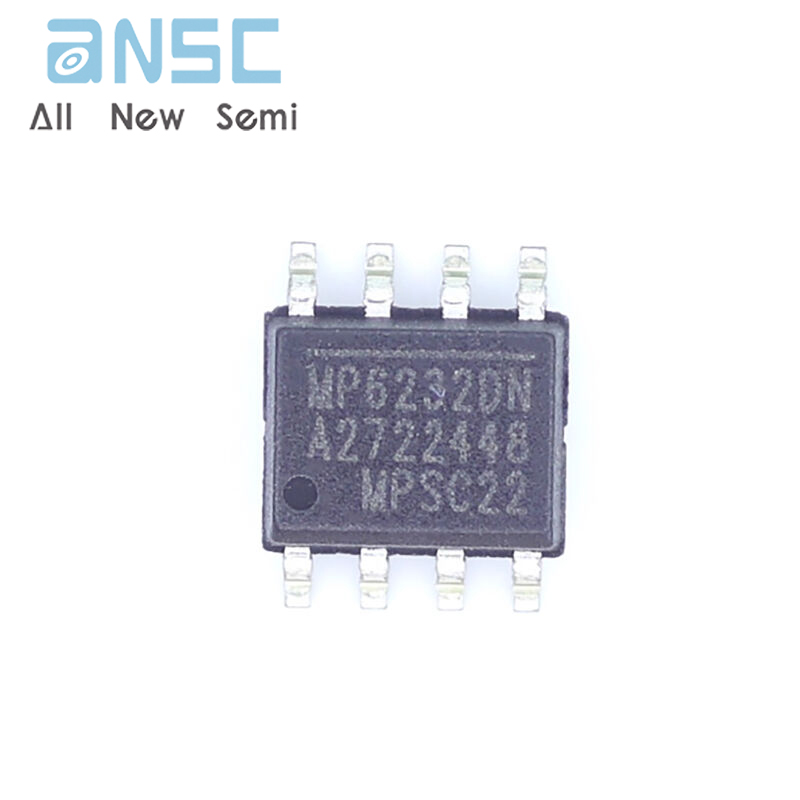

Product Photos

For more product information, please download the PDF
