Spot sales of CD4023BCN Buffered Triple 3-Input NAND Gate DIP-14
Manufacturer Product Number
CD4023BCN
Description
CD4023BCN Buffered Triple 3-Input NAND Gate DIP-14
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
These triple gates are monolithic complementary MOS (CMOS) integrated circuits constructed with N- and Pchannel enhancement mode transistors. They have equal source and sink current capabilities and conform to standard B series output drive. The devices also have buffered outputs which improve transfer characteristics by providing very high gain. All inputs are protected against static discharge with diodes to VDD and VSS.
Product Features
■ Wide supply voltage range: 3.0V to 15V
■ High noise immunity: 0.45 VDD (typ)
■ Low power TTL compatibility:
fan out of 2 driving 74L or 1 driving 74LS
■ 5V–10V–15V parametric ratings
■ Symmetrical output characteristics
■ Maximum input leakage 1 µA at 15V over full temperature range
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-CD4023BCN |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 4000B |
| Packaging | Tube |
| Part Status | Obsolete |
| Logic Type | NAND Gate |
| Number of Circuits | 3 |
| Number of Inputs | 3 |
| Features | - |
| Voltage - Supply | 3V ~ 15V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 3.4mA, 3.4mA |
| Input Logic Level - Low | 1.5V ~ 4V |
| Input Logic Level - High | 3.5V ~ 11V |
| Max Propagation Delay @ V, Max CL | 70ns @ 15V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-DIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Base Product Number | CD4023 |

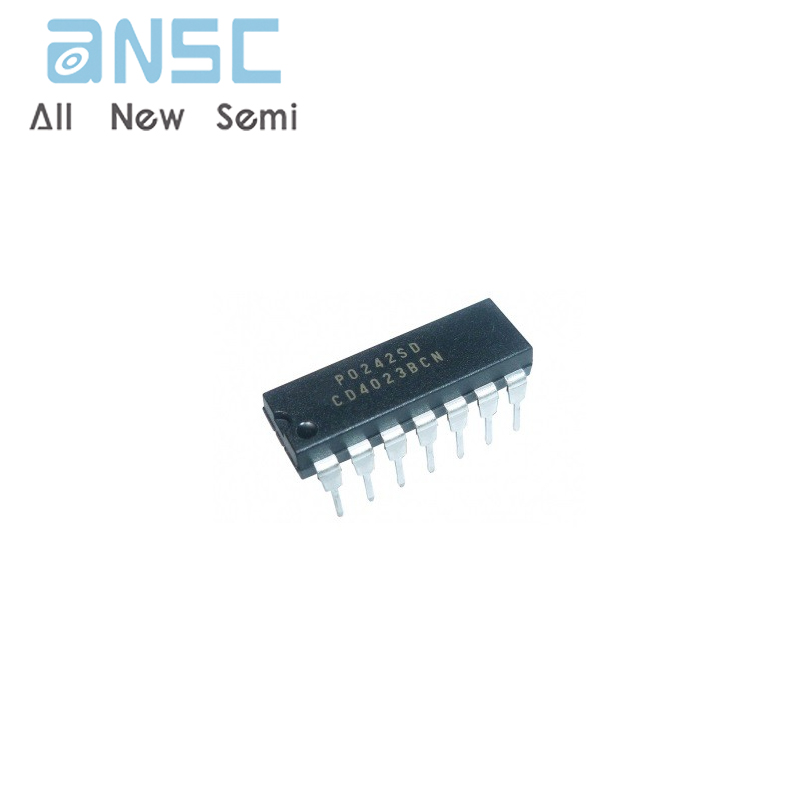

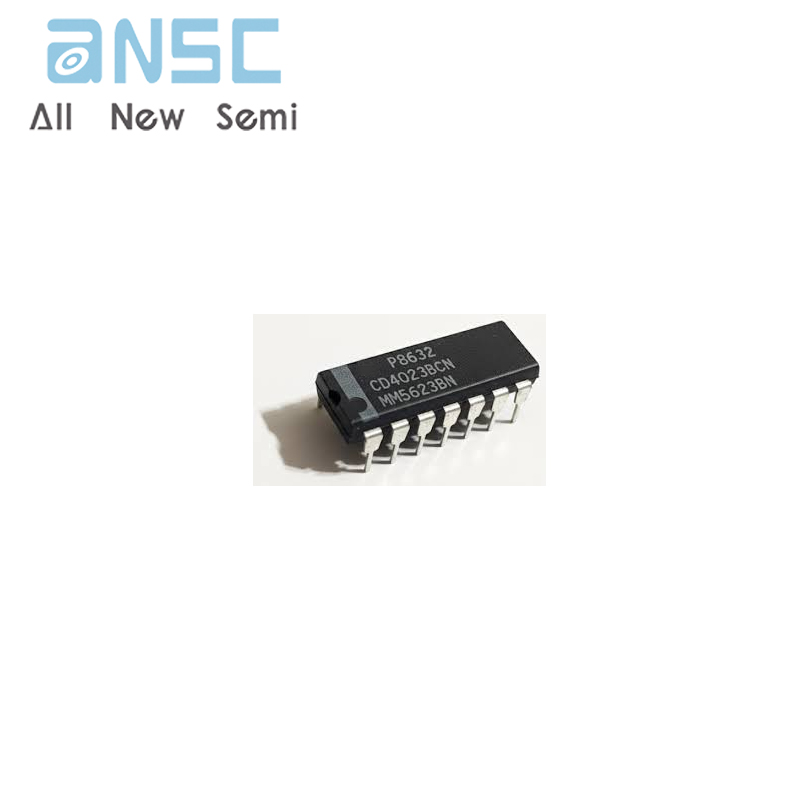

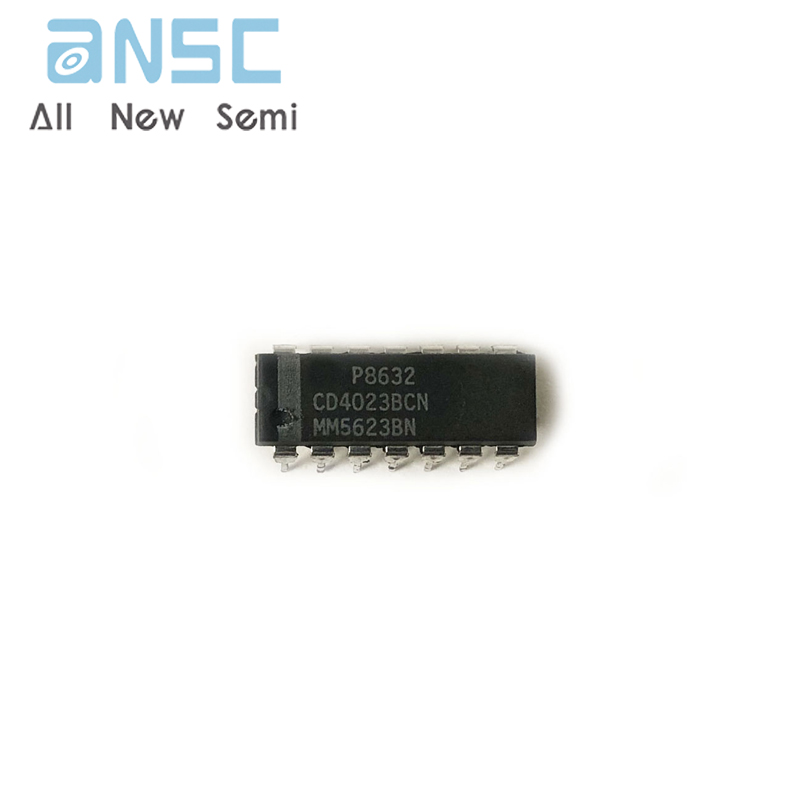

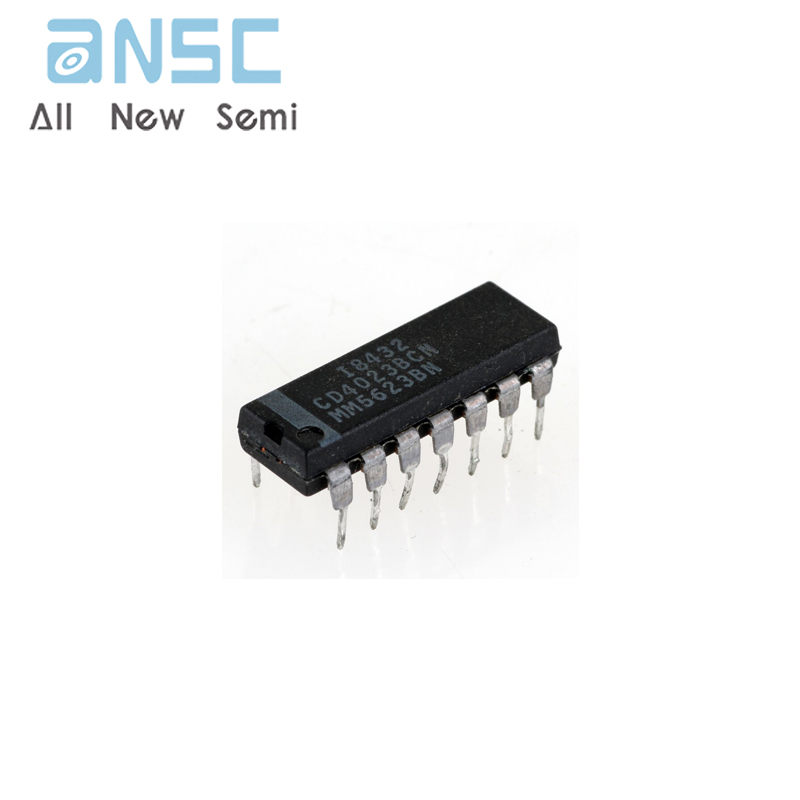

Product Photos
For more product information, please download the PDF
