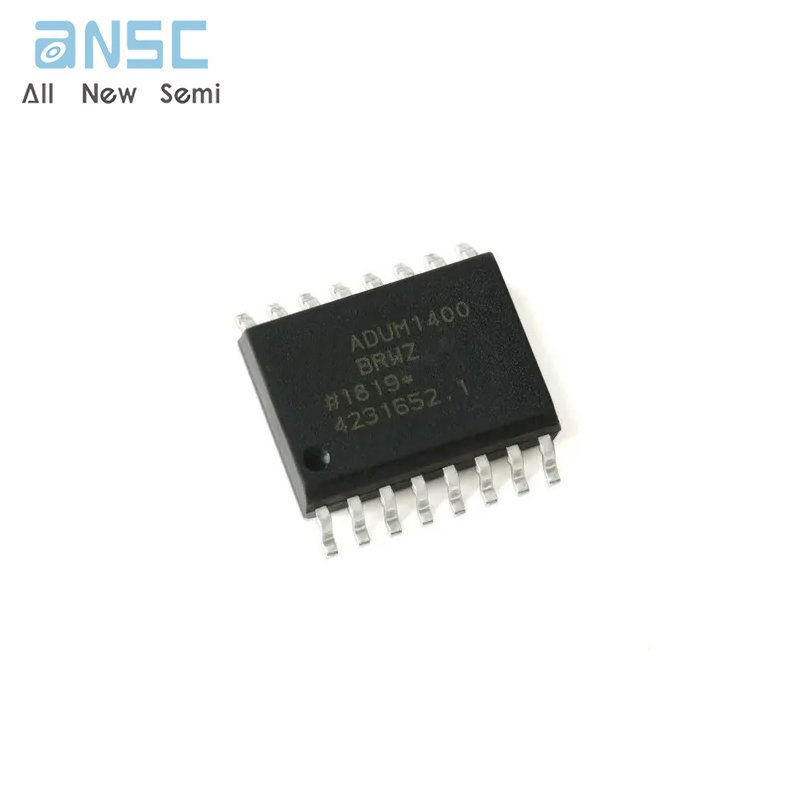

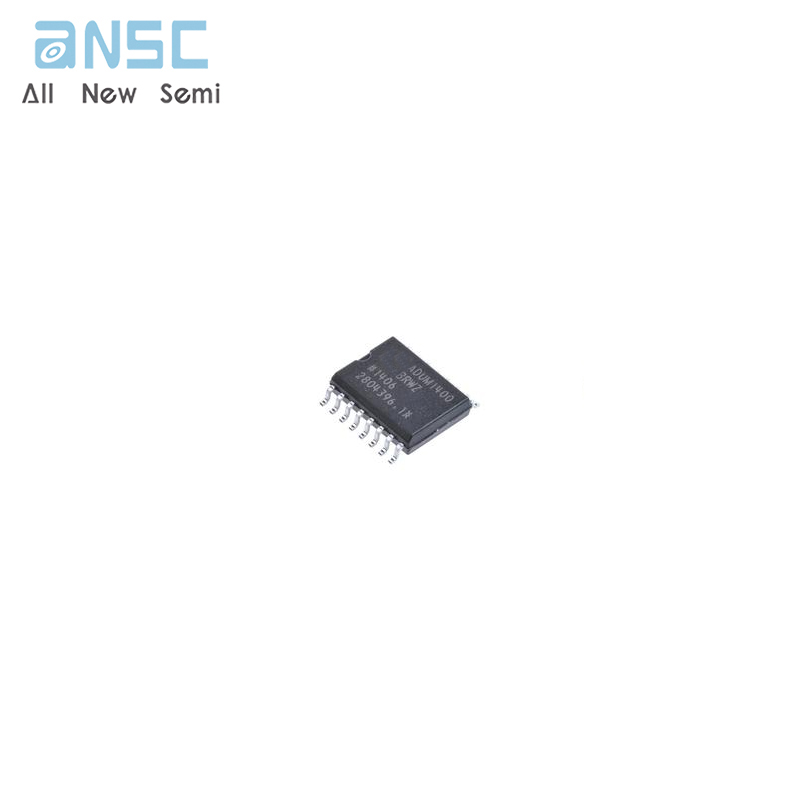

Hot-selling and scarce ADUM1400BRWZ Quad-Channel Digital Isolators SOP16 spot stock
Manufacturer Product Number
ADUM1400BRWZ
Description
ADUM1400BRWZ Quad-Channel Digital Isolators SOP16 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The ADuM1400/ADuM1401/ADuM14021 are quad-channel digital isolators based on Analog Devices, Inc., iCoupler® technology. Combining high speed CMOS and monolithic air core transformer technology, these isolation components provide outstanding performance characteristics superior to alternatives, such as optocoupler devices.
By avoiding the use of LEDs and photodiodes, iCoupler devices remove the design difficulties commonly associated with optocouplers. The typical optocoupler concerns regarding uncertain current transfer ratios, nonlinear transfer functions, and temperature and lifetime effects are eliminated with the simple iCoupler digital interfaces and stable performance characteristics.
The need for external drivers and other discrete components is eliminated with these iCoupler products. Furthermore, iCoupler devices consume one tenth to one sixth of the power of optocouplers at comparable signal data rates.
Product Features
► Qualified for automotive applications
► Low power operation
► 5 V operation
► 1.0 mA per channel maximum at 0 Mbps to 2 Mbps
► 3.5 mA per channel maximum at 10 Mbps
► 31 mA per channel maximum at 90 Mbps
► 3 V operation
► 0.7 mA per channel maximum at 0 Mbps to 2 Mbps
► 2.1 mA per channel maximum at 10 Mbps
► 20 mA per channel maximum at 90 Mbps
► Bidirectional communication
► 3 V/5 V level translation
► High temperature operation: 125°C
► High data rate: dc to 90 Mbps (NRZ)
► Precise timing characteristics
► 2 ns maximum pulse width distortion
► 2 ns maximum channel-to-channel matching
► High common-mode transient immunity: >25 kV/μs
► Output enable function
► 16-lead SOIC wide body package
► RoHS-compliant models available
► Safety and regulatory approvals
► UL 1577:
► VISO= 2500 V rms for 1 minute
► IEC/EN/CSA 62368-1
► EN 60950-1
► IEC/CSA 60601-1
► IEC/CSA 61010-1
► CQC GB4943 .1
► DIN EN IEC 60747-17 (VDE 0884-17)
► VIORM = 560 V peak
Product Applications
► General-purpose multichannel isolation
► SPI interface/data converter isolation
► RS-232/RS-422/RS-485 transceivers
► Industrial field bus isolation
► Automotive systems
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-ADUM1400BRWZ |
| Category | Isolators |
| Digital Isolators | |
| Mfr | - |
| Series | iCoupler® |
| Packaging | Tube |
| Part Status | Active |
| Technology | Magnetic Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 4 |
| Inputs - Side 1/Side 2 | 4/0 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Data Rate | 10Mbps |
| Propagation Delay tpLH / tpHL (Max) | 50ns, 50ns |
| Pulse Width Distortion (Max) | 3ns |
| Rise / Fall Time (Typ) | 2.5ns, 2.5ns |
| Voltage - Supply | 2.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | ADUM1400 |
