Hot-selling and scarce 74ACT257SC Quad 2-Input Multiplexer with 3-STATE Outputs SOP16 spot stock
Manufacturer Product Number
74ACT257SC
Description
74ACT257SC Quad 2-Input Multiplexer with 3-STATE Outputs SOP16 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The AC/ACT257 is a quad 2-input multiplexer with 3- STATE outputs. Four bits of data from two sources can be selected using a Common Data Select input. The four outputs present the selected data in true (noninverted) form. The outputs may be switched to a high impedance state by placing a logic HIGH on the common Output Enable (OE) input, allowing the outputs to interface directly with bus-oriented systems.
Product Features
■ ICC and IOZ reduced by 50%
■ Multiplexer expansion by tying outputs together
■ Noninverting 3-STATE outputs
■ Outputs source/sink 24 mA
■ ACT257 has TTL-compatible inputs
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-74ACT257SC |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Signal Switches, Multiplexers, Decoders | |
| Manufacturer | - |
| Series | 74ACT |
| Packaging | Tube |
| Part Status | Obsolete |
| Type | Multiplexer |
| Circuit | 4 x 2:1 |
| Independent Circuits | 1 |
| Current - Output High, Low | 24mA, 24mA |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | 74ACT257 |

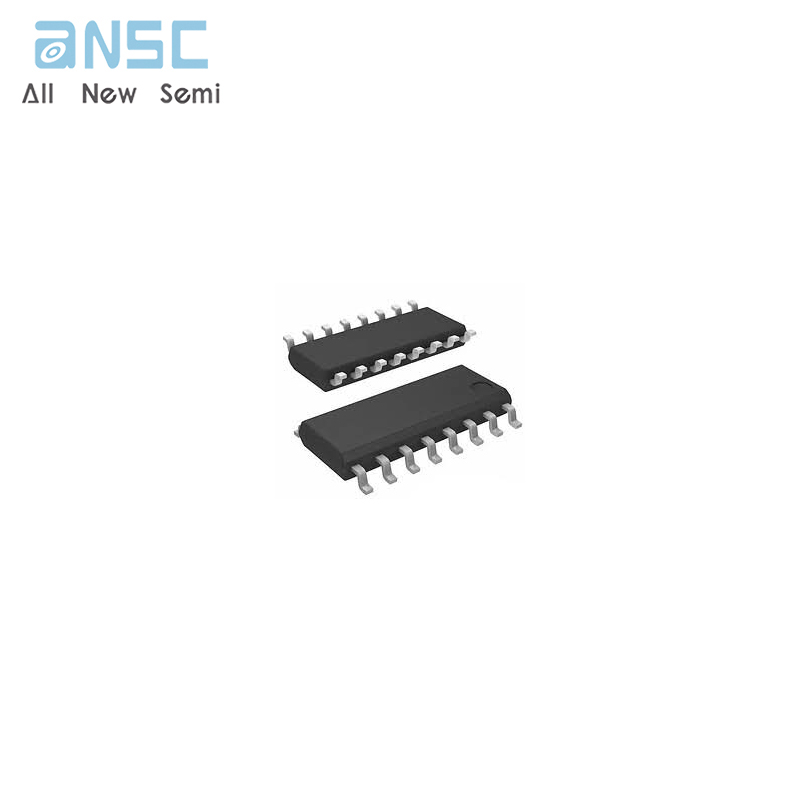

Product Photos
