Spot sales of MMA7361LCR1 ±1.5g, ±6g Three Axis Low-g Micromachined Accelerometer LGA14

Product Descriptions

The MMA7361LC is a low power, low profile capacitive micromachined accelerometer featuring signal conditioning, a 1-pole low pass filter, temperature compensation, self test, 0g-Detect which detects linear freefall, and g-Select which allows for the selection between two sensitivities. Zero-g offset and sensitivity are factory set and require no external devices. The MMA7361LC includes a Sleep Mode that makes it ideal for handheld battery powered electronics.

Product Features

• 3mm x 5mm x 1.0mm LGA-14 Package

• Low Current Consumption: 400 μA

• Sleep Mode: 3 μA

• Low Voltage Operation: 2.2 V – 3.6 V

• High Sensitivity (800 mV/g @ 1.5g)

• Selectable Sensitivity (±1.5g, ±6g)

• Fast Turn On Time (0.5 ms Enable Response Time)

• Self Test for Freefall Detect Diagnosis

• 0g-Detect for Freefall Protection

• Signal Conditioning with Low Pass Filter

• Robust Design, High Shocks Survivability

• RoHS Compliant

• Environmentally Preferred Product

• Low Cost

Product Applications

• 3D Gaming: Tilt and Motion Sensing, Event Recorder

• HDD MP3 Player: Freefall Detection

• Laptop PC: Freefall Detection, Anti-Theft

• Cell Phone: Image Stability, Text Scroll, Motion Dialing, eCompass

• Pedometer: Motion Sensing

• PDA: Text Scroll

• Navigation and Dead Reckoning: eCompass Tilt Compensation

• Robotics: Motion Sensing

Product Specification

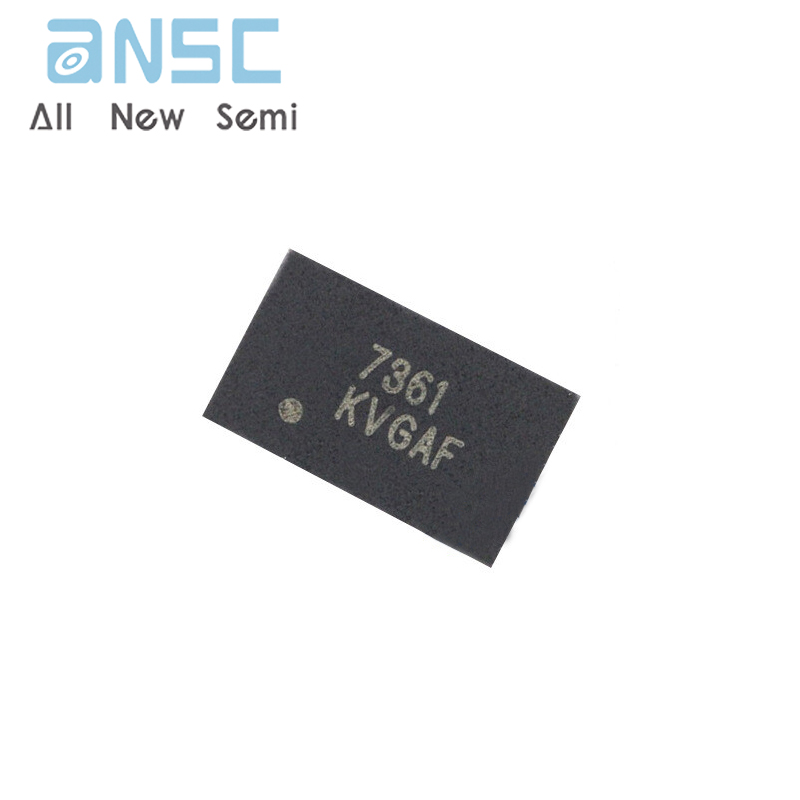

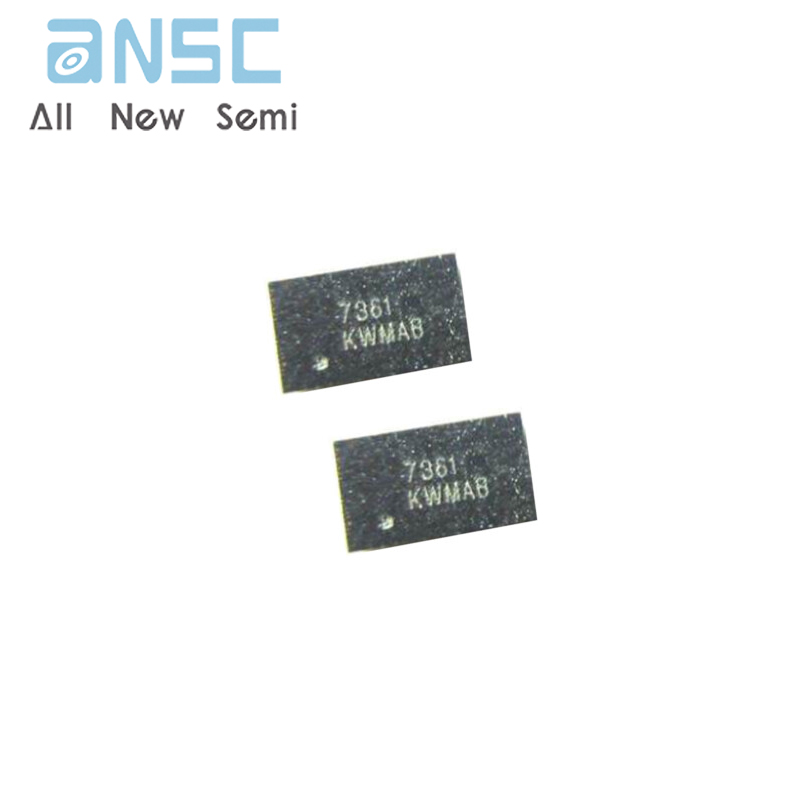

Product Photos

For more product information, please download the PDF
