Hot-selling and scarce X28HC256DMB-12 5 Volt Byte Alterable E2PROM CDIP28 spot stock

Product Descriptions

The X28HC256 is a second generation high performance CMOS 32K x 8 E2PROM. It is fabricated with Xicor’s proprietary, textured poly floating gate technology, providing a highly reliable 5 Volt only nonvolatile memory.

The X28HC256 supports a 128-byte page write operation, effectively providing a 24µs/byte write cycle and enabling the entire memory to be typically rewritten in less than 0.8 seconds. The X28HC256 also features DATA Polling and Toggle Bit Polling, two methods of providing early end of write detection. The X28HC256 also supports the JEDEC standard Software Data Protection feature for protecting against inadvertent writes during power-up and power-down.

Endurance for the X28HC256 is specified as a minimum 100,000 write cycles per byte and an inherent data retention of 100 years.

Product Features

• Access Time: 70ns

• Simple Byte and Page Write

—Single 5V Supply

—No External High Voltages or VPP Control Circuits

—Self-Timed

—No Erase Before Write

—No Complex Programming Algorithms

—No Overerase Problem

• Low Power CMOS:

—Active: 60mA

—Standby: 500µA

• Software Data Protection

—Protects Data Against System Level Inadvertent Writes

• High Speed Page Write Capability

• Highly Reliable Direct Write™ Cell

—Endurance: 100,000 Write Cycles

—Data Retention: 100 Years

• Early End of Write Detection

—DATA Polling

—Toggle Bit Polling

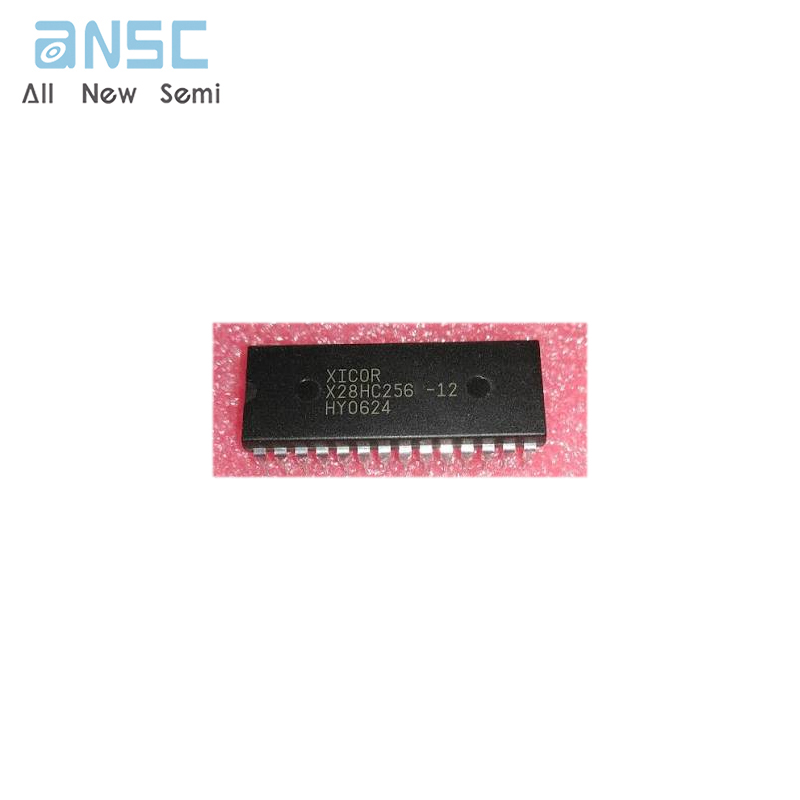

Product Photos

For more product information, please download the PDF
