TMS320TCI6608ACYPWA25 Multicore Fixed and Floating-Point Digital Signal Processor BGA spot stock

Product Features

• Eight TMS320C66x™ DSP Core Subsystems (C66x CorePacs), Each with

– 1.0 GHz or 1.25 GHz C66x Fixed/Floating-Point CPU Core

› 40 GMAC/Core for Fixed Point @ 1.25 GHz

› 20 GFLOP/Core for Floating Point @ 1.25 GHz

– Memory

› 32K Byte L1P Per Core

› 32K Byte L1D Per Core

› 512K Byte Local L2 Per Core

• Multicore Shared Memory Controller (MSMC)

– 4096KB MSM SRAM Memory Shared by Eight DSP C66x CorePacs

– Memory Protection Unit for Both MSM SRAM and DDR3_EMIF

• Multicore Navigator

– 8192 Multipurpose Hardware Queues with Queue Manager

– Packet-Based DMA for Zero-Overhead Transfers

• Network Coprocessor

– Packet Accelerator Enables Support for

› Transport Plane IPsec, GTP-U, SCTP, PDCP

› L2 User Plane PDCP (RoHC, Air Ciphering)

› 1 Gbps Wire-Speed Throughput at 1.5 MPackets Per Second

– Security Accelerator Engine Enables Support for

› IPSec, SRTP, 3GPP, WiMAX Air Interface, and SSL/TLS Security

› ECB, CBC, CTR, F8, A5/3, CCM, GCM, HMAC,CMAC, GMAC, AES, DES, 3DES, Kasumi, SNOW 3G, SHA-1, SHA-2 (256-bit Hash), MD5

› Up to 2.8 Gbps Encryption Speed

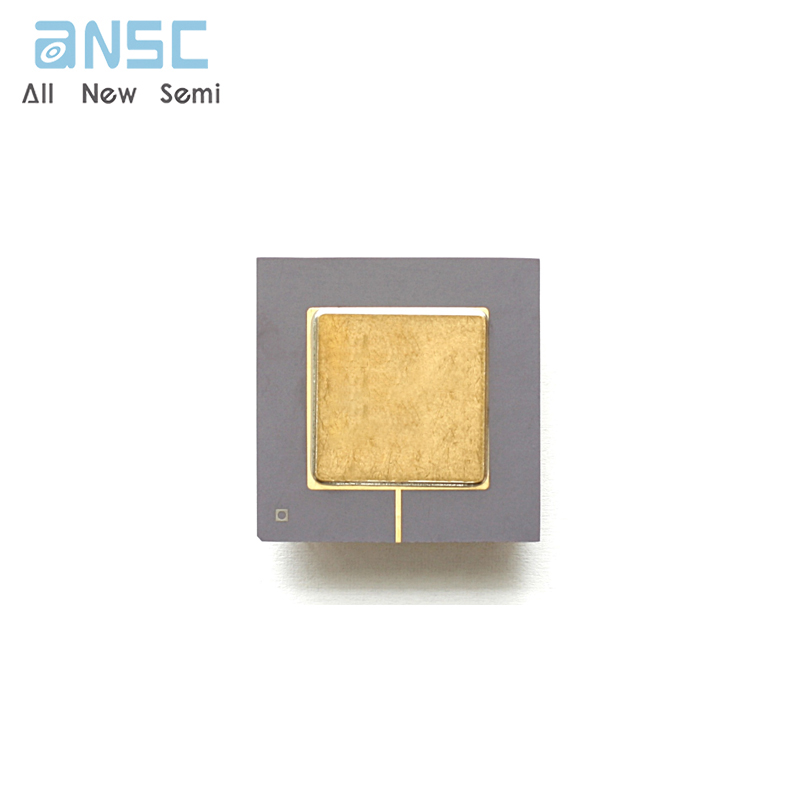

Product Photos

For more product information, please download the PDF
