Hot-selling and scarce LP6218B6F High Efficiency 2.1A Boost DC/DC Convertor SOT23-6 spot stock

Product Descriptions

The LP6218 is a current mode boost DC-DC converter.  Its PWM circuitry with built-in 2.1A current power  MOSFET makes this converter highly power efficiently.  The LP6218 implements a constant frequency 1MHz  PWM control scheme. The high frequency PWM  operation also saves board space by reducing external  component sizes. The LP6218 features automatic  shifting to pulse frequency modulation mode at light  loads.Highly integration and internal compensation  network minimizes as 6 external component counts.  Optimized operation frequency can meet the  requirement of small LC filters value and low operation  current with high efficiency.

The LP6218 includes under-voltage lockout, current  limiting, and thermal overload protection to prevent  damage in the event of an output overload. The  LP6218 is available in a small 6-pin SOT23-6 package.

Product Features

 Up to 94 percent efficiency

 Output to Input Disconnect at Shutdown Mode

 Shut-down current:<1uA

 Input and Output voltage Up to 24V

 Internal Compensation, Soft-start

 1MHz fixed frequency switching

 High switch on current:2.1A

 Available in SOT23-6 Package

Product Applications

 Battery products

 Host Products

 Panel

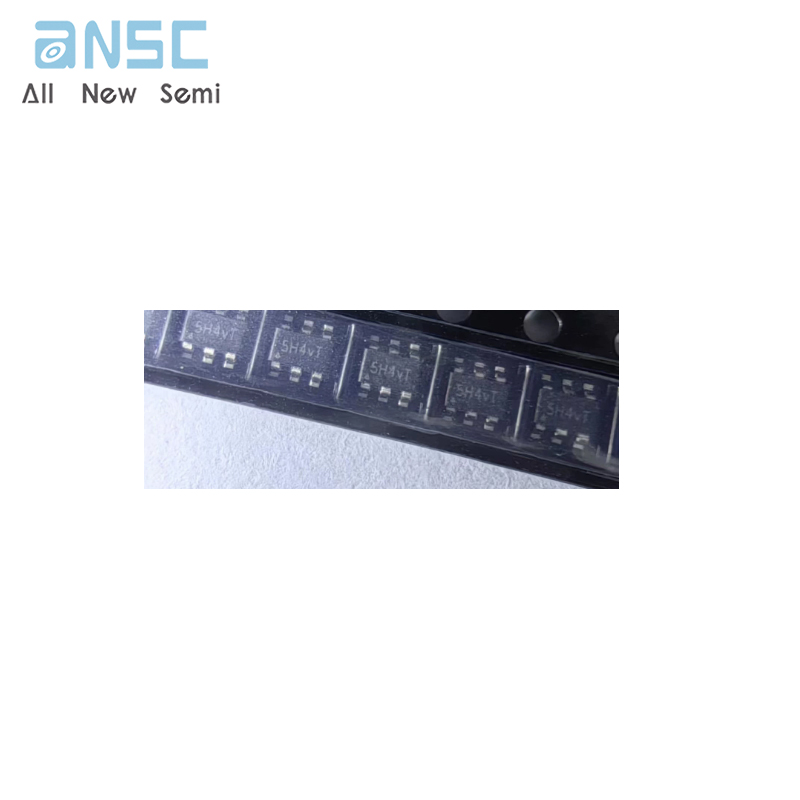

Product Photos

For more product information, please download the PDF
