Hot-selling and scarce MP2358DSE-LF-Z 2A, 23V, 370KHz Step-Down Converter Evaluation Board SOP-8

Product Descriptions

The EV2358DS-00A is the evaluation board for  the MP2358, a monolithic step-down switch  mode converter with a built in internal power  MOSFET. It achieves 2A continuous output  current over a wide input supply range with  excellent load and line regulation.

The MP2358 employs current mode operation  for fast transient response and loop  stabilization.

Its Fault condition protection includes  cycle-by-cycle current limiting and thermal  shutdown. In shutdown mode the regulator draws  23µA of supply current. The Programmable softstart minimizes the inrush supply current and the  output overshoot at initial startup.

The MP2358 requires a minimum number of  readily available standard external components.

Product Features

• Stable with Low ESR Output Ceramic Capacitors

• Up to 95 percent Efficiency

• Wide 4.75V to 23V Operating Input Range

Product Applications

• Distributed Power Systems

• Battery Charger

• DSL Modems

• Pre-Regulator for Linear Regulators

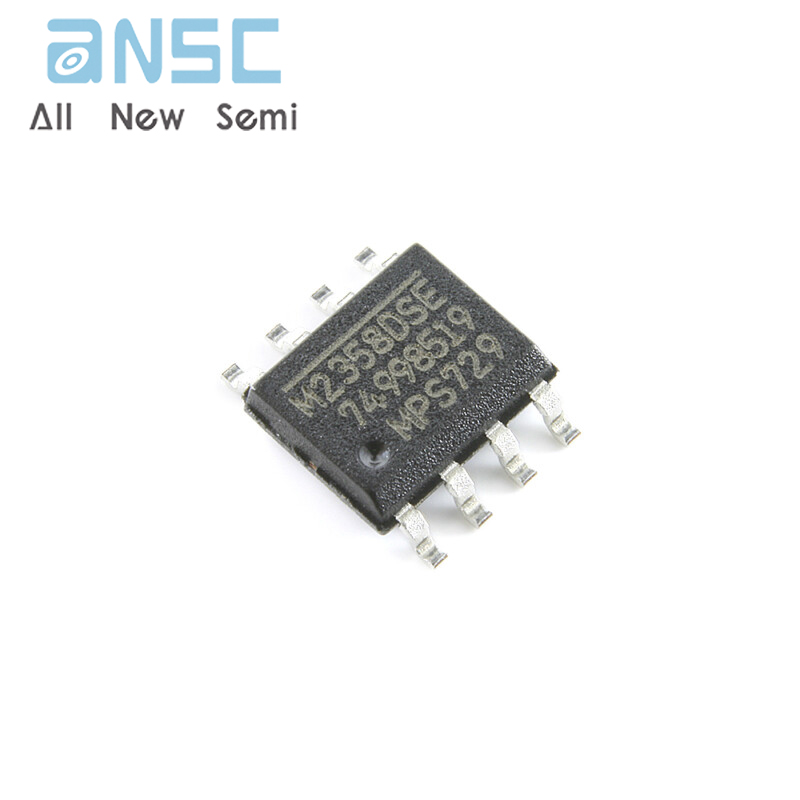

Product Photos

For more product information, please download the PDF
