Hot-selling and scarce M74HC365B1R HEX BUS BUFFER 3-STATE HC365 NON INVERTING DIP16 spot stock

Product Descriptions

The 54HC365 is an advanced high-speed CMOS HEX BUS BUFFER (3-STATE) fabricated with silicon gate C2MOS technology.

All six buffers are controlled by the combination of two enable inputs (G1 and G2); all outputs of these buffers are enabled only when both G1 and G2 inputs are held low, under all other conditions these outputs are disabled in a high-impedance state.

The M54HC365 has non inverting outputs. All inputs are equipped with protection circuits against static discharge and transient excess voltage.

Product Features

■ HIGH SPEED: tPD = 10ns (TYP.) at VCC = 6V

■ LOW POWER DISSIPATION: ICC = 4µA(MAX.) at TA=25°C

■ HIGH NOISE IMMUNITY: VNIH = VNIL = 28% VCC (MIN.)

■ SYMMETRICAL OUTPUT IMPEDANCE: |IOH|=IOL = 6mA (MIN)

■ BALANCED PROPAGATION DELAYS: tPLH ≅ tPHL

■ WIDE OPERATING VOLTAGE RANGE: VCC (OPR) = 2V to 6V

■ PIN AND FUNCTION COMPATIBLE WITH 54 SERIES 365

■ SPACE GRADE-1: ESA SCC QUALIFIED

■ 50 krad QUALIFIED, 100 krad AVAILABLE ON REQUEST

■ NO SEL UNDER HIGH LET HEAVY IONS IRRADIATION

■ DEVICE FULLY COMPLIANT WITH SCC-9401-052

Product Specification

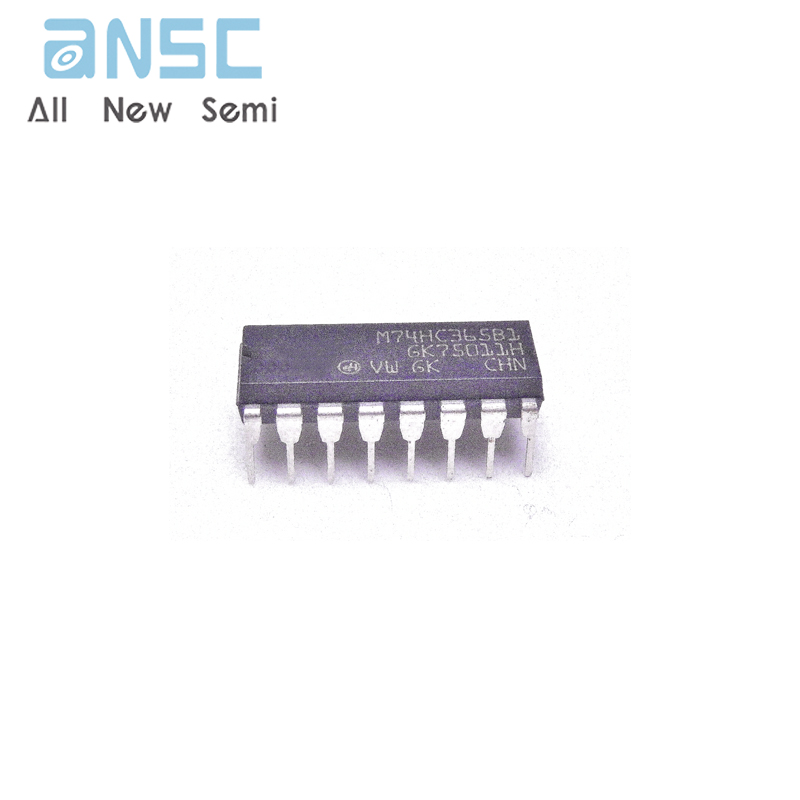

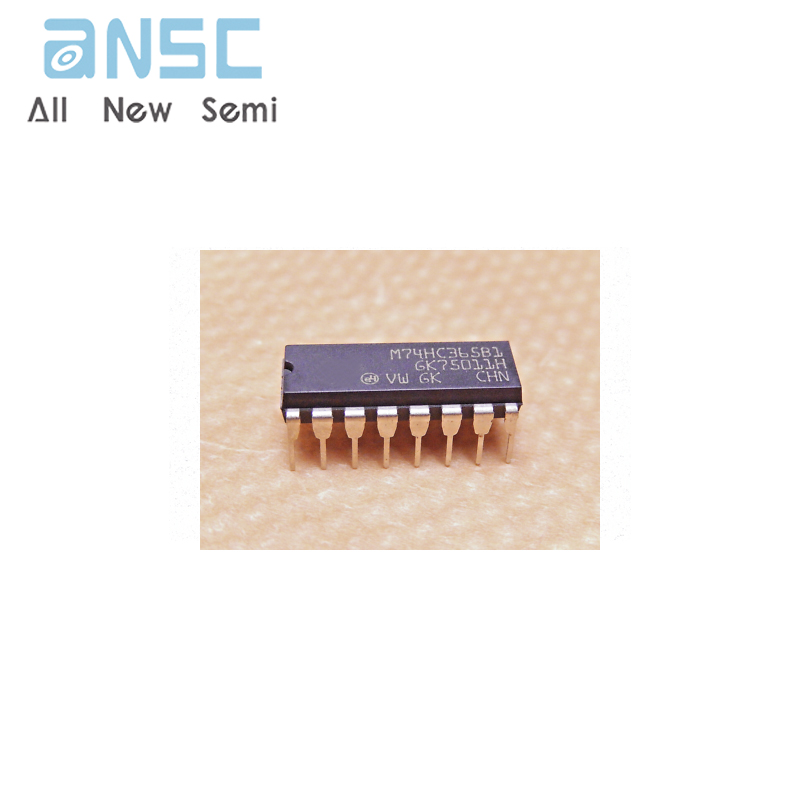

Product Photos

For more product information, please download the PDF
