Hot-selling and scarce BQ27531YZFT-G1 Battery Management Unit Impedance Track Fuel Gauge DSBGA15 spot stock
Manufacturer Product Number
BQ27531YZFT-G1
Description
BQ27531YZFT-G1 Battery Management Unit Impedance Track Fuel Gauge DSBGA15 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The Texas Instruments bq27531-G1 system-side Li-Ion Battery Management Unit is a microcontroller peripheral that provides Impedance Track™ fuel gauging and charging control for single-cell Li-Ion battery packs. The device requires little system microcontroller firmware development. Together with bq2419x Single Cell Switchmode Charger, the bq27531-G1 manages an embedded battery (non-removable) or a removable battery pack.
The bq27531-G1 uses the patented Impedance Track™ algorithm for fuel gauging, and provides information such as remaining battery capacity (mAh), state-of-charge (percent), run-time to empty (min), battery voltage (mV), temperature (°C) and state of health ( percent).
Battery fuel gauging with the bq27531-G1 requires only PACK+ (P+), PACK– (P–), and Thermistor (T) connections to a removable battery pack or embedded battery circuit. The CSP option is a 15-ball package in the dimensions of 2,61 mm × 1,96 mm with 0,5 mm lead pitch. It is ideal for space constrained applications.
Product Features
• Battery Fuel Gauge and Charger Controller for 1-Series Li-Ion Applications
• Resides on System Main Board
• Battery Fuel Gauge Based on Patented Impedance Track™ Technology
– Models the Battery Discharge Curve for Accurate Time-to-Empty Predictions
– Automatically Adjusts for Battery Aging,Battery Self-Discharge, and Temperature/Rate Inefficiencies
– Low-Value Sense Resistor (5 mΩ to 20 mΩ)
• Battery Charger Controller with customizable charge profiles
– Configurable Charge Voltage and Current based on Temperature
– Optional State of Health (SoH) and Multi-level based charge profiles
• Host Free Autonomous Battery Management System
– Reduced software overhead allows for easy portability across platforms and shorter OEM design cycles
– Higher safety and security
• Run Time Improvements
– Longer battery runtime leveraging Impedance Track technoloogy
– Tighter accuracy controls for charger termination
– Improved recharged thresholds
• Intelligent Charging - Customized and adaptive charging profiles
– Charger Control based on SoH
– Temperature Level Charging (TLC)
• Battery Charger Controller for bq2419x Single Cell Switchmode Battery Charger
– Stand-Alone Charging Solution
– Ship mode capability
• 400-kHz I2C™ Interface for Connection to System Microcontroller Port
• In a 15-Pin NanoFree™ (CSP) Packaging
Product Applications
• Smartphones, Feature phones and Tablets
• Digital Still and Video Cameras
• Handheld Terminals
• MP3 or Multimedia Players
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-BQ27531YZFT-G1 |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Battery Management | |
| Mfr | - |
| Series | Impedance Track™ |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Function | Battery Monitor |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Interface | I2C |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 15-UFBGA, DSBGA |
| Supplier Device Package | 15-DSBGA |
| Base Product Number | BQ27531 |

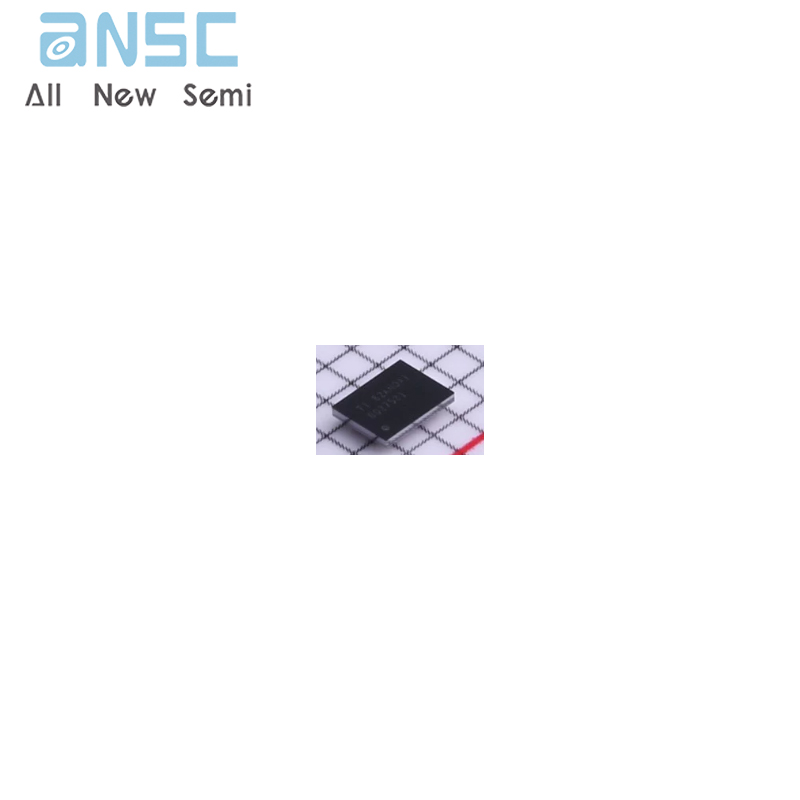

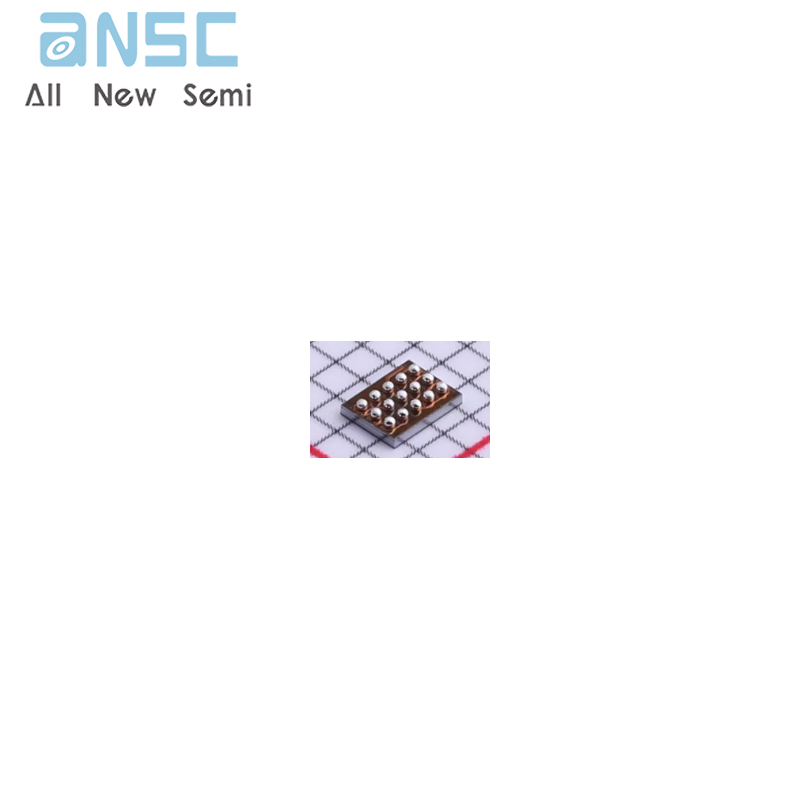

Product Photos
For more product information, please download the PDF
