Hot-selling and scarce BH1415F-E2 Wireless Audio Link IC SOP22
Manufacturer Product Number
BH1415F-E2
Description
BH1415F-E2 Wireless Audio Link IC SOP22
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The BH1415F is a FM stereo transmitter IC that transmits simple configuration. The IC consists of a stereo modulator for generating stereo composite signals and a FM transmitter for broadcasting a FM signal on the air. The stereo modulator generates a composite signal which consists of the MAIN, SUB, and pilot signal from a 38kHz oscillator.
The FM transmitter radiates FM wave on the air by modulating the carrier signal with a composite signal.
Product Features
1) It is possible to improve the timbre because it has the pre-emphasis circuit, limiter circuit, and the low-pass filter circuit.
2) Built-in pilot-tone system FM stereo modulator circuit.
3) The transmission frequency is stable because it has a PLL system FM transmitter circuit.
4) PLL data input (CE, CK, DA) by serial input.
Product Applications
CD changer, Car TV, Car navigation, Wireless speakers, Personal computer (sound board), Game machine
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-BH1415F-E2 |
| Category | RF and Wireless |
| RF Transmitters | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Frequency | 70MHz ~ 120MHz |
| Applications | Wireless Audio Link LSI |
| Modulation or Protocol | FM |
| Power - Output | -7dBm |
| Current - Transmitting | 28mA |
| Data Interface | PCB, Surface Mount |
| Antenna Connector | PCB, Surface Mount |
| Voltage - Supply | 4V ~ 6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 22-SOIC (0.213", 5.40mm Width) |
| Supplier Device Package | 22-SOP |
| Base Product Number | BH1415 |

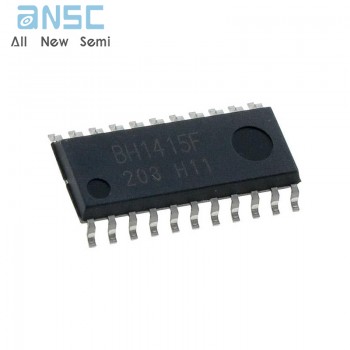

Product Photos
For more product information, please download the PDF
