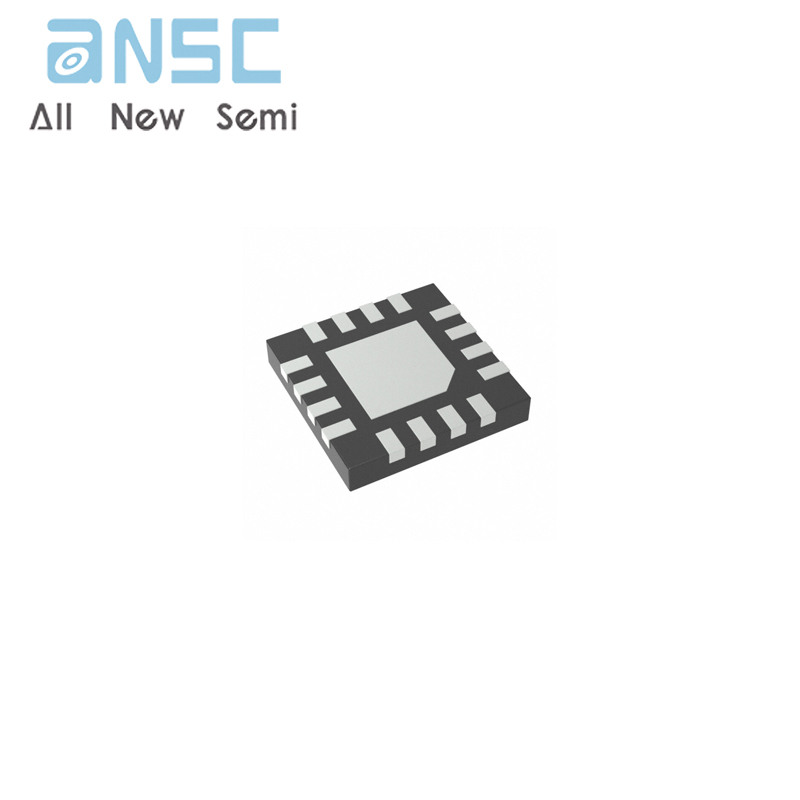

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce MP1527DR-LF-P 2A, 1.3MHz Step-Up Converter QFN
Manufacturer Product Number
MP1527DR-LF-P
Description
MP1527DR-LF-P 2A, 1.3MHz Step-Up Converter QFN
Package Condition
Tray
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The EV0034 is a MP1527 evaluation board configured to provide a regulated 12V output at up to 300mA from a 2.6V input or higher. The output voltage is adjustable from VIN to 25V by changing resistors on the evaluation board.
The MP1527 has a high 1.3MHz switching frequency that allows for smaller external components, producing a compact solution for medium-to-high current step-up, flyback, and SEPIC applications.
Product Features
• 2.6V Minimum Input Voltage
• 12V Output Voltage, Adjustable from VIN to 25V
• Up to 90 percent Efficiency
• 1.3MHz Switching Frequency
• Fully Assembled and Tested
Product Applications
• SOHO Routers, PCMCIA Cards, Mini PCI
• Handheld Computers, PDAs
• Cell Phones, Digital and Video Cameras
• Small LCD Displays
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MP1527DR-LF-P |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Function | Step-Up |
| Output Configuration | Positive |
| Topology | Boost |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.6V |
| Voltage - Input (Max) | 25V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | 25V |
| Current - Output | 2A |
| Frequency - Switching | 1.3MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad |
| Supplier Device Package | 16-QFN (4x4) |
| Base Product Number | MP1527 |
Product Photos
For more product information, please download the PDF
