Hot-selling and scarce AD9762AR 12-Bit 125 MSPS TxDAC D/A Converter TSSOP spot stock

Product Descriptions

The AD9762 is the 12-bit resolution member of the TxDAC series of high performance, low power CMOS digital-to-analog converters (DACs).  The TxDAC family which consists of pincompatible 8-, 10-, 12-, and 14-bit DACs is specifically optimized for the transmit signal path of communication systems. All of the devices share the same interface options, small outline package and pinout, thus providing an upward or downward component selection path based on performance, resolution and cost. The AD9762 offers exceptional ac and dc performance while supporting update rates up to 125 MSPS.

The AD9762’s flexible single-supply operating range of 2.7 V to5.5 V and low power dissipation are well suited for portable and low power applications. Its power dissipation can be further reduced to a mere 45 mW without a significant degradation in performance by lowering the full-scale current output.  Also, a power-down mode reduces the standby power dissipation to approximately 25 mW.

The AD9762 is manufactured on an advanced CMOS process. A segmented current source architecture is combined with a proprietary switching technique to reduce spurious components and enhance dynamic performance.  Edge-triggered input latches and a 1.2 V temperature compensated bandgap reference have been integrated to provide a complete monolithic DAC solution.  Flexible supply options support +3 V and +5 VCMOS logic families.

Product Features

Member of Pin-Compatible TxDAC Product Family

125 MSPS Update Rate

12-Bit Resolution

Excellent Spurious Free Dynamic Range Performance

SFDR to Nyquist @ 5 MHz Output:  70 dBc

Differential Current Outputs: 2 mA to 20 mA

Power Dissipation:  175 mW @ 5 V to 45 mW @ 3 V

Power-Down Mode: 25 mW @ 5 V

On-Chip 1.20 V Reference

Single +5 V or +3 V Supply Operation

Package: 28-Lead SOIC and TSSOP

Edge-Triggered Latches

Product Applications

Communication Transmit Channel:

Basestations (Single/Multichannel Applications)

ADSL/HFC Modems

Direct Digital Synthesis (DDS)

Instrumentation

Product Specification

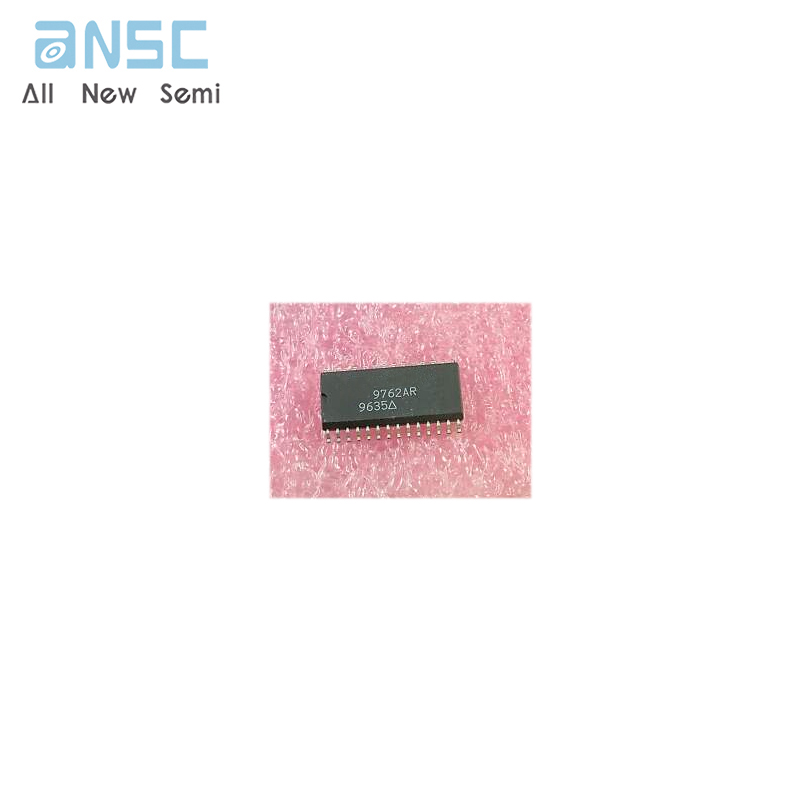

Product Photos

For more product information, please download the PDF
