Hot-selling and scarce MC68EN360RC25C QUad Integrated Communication Controller IC PGA spot stock

Product Descriptions

The MC68360 QUad Integrated Communication Controller (QUICC™) is a versatile one-chip integrated microprocessor and peripheral combination that can be used in a variety of controller applications. It particularly excels in communications activities. The QUICC (pronounced “quick”) can be described as a next-generation MC68302 with higher performance in all areas of device operation, increased flexibility, major extensions in capability, and higher integration. The term "quad" comes from the fact that there are four serial communications controllers (SCCs) on the device; however, there are actually seven serial channels: four SCCs, two serial management controllers (SMCs), and one serial peripheral interface (SPI).

​

Product Features

• CPU32+ Processor (4.5 MIPS at 25 MHz)

— 32-Bit Version of the CPU32 Core (Fully Compatible with the CPU32)

— Background Debug Mode

— Byte-Misaligned Addressing

• Up to 32-Bit Data Bus (Dynamic Bus Sizing for 8 and 16 Bits)

• Up to 32 Address Lines (At Least 28 Always Available)

• Complete Static Design (0–25-MHz Operation)

• Slave Mode To Disable CPU32+ (Allows Use with External Processors)

— Multiple QUICCs Can Share One System Bus (One Master)

— MC68040 Companion Mode Allows QUICC To Be an MC68040 Companion

Memory (SRAM), Electrically Programmable Read-Only Memory (EPROM), Flash EPROM, etc.

— Four CAS lines, Four WE lines, One OE line

— Boot Chip Select Available at Reset (Options for 8-, 16-, or 32-Bit Memory)

— Special Features for MC68040 Including Burst Mode Support

• Four General-Purpose Timers

— Superset of MC68302 Timers

— Four 16-Bit Timers or Two 32-Bit Timers

— Gate Mode Can Enable/Disable Counting

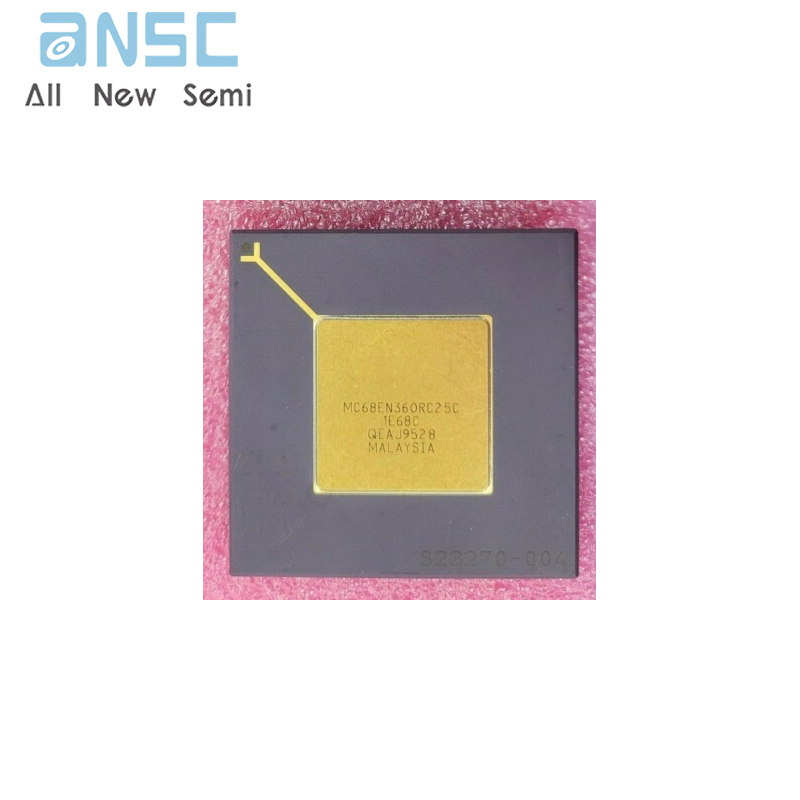

Product Photos

For more product information, please download the PDF
