Hot-selling and scarce LP3907QSQ-JXIP Dual High-Current Step-Down DC-DCAnd Dual Linear Regulator MSOP8 spot stock

Product Descriptions

The LP3907-Q1 is a multi-function,  programmable Power Management  Unit,  optimized for low power FPGAs,  microprocessors,  and DSPs.  This device integrates two highly efficient 1-A/600-mA step-down DC-DC converters with dynamic voltage management(DVM), two 300-mA linear regulators, and a 400-kHz I²C interface to allow a host controller access to the internal  control  registers of the device. The LP3907 -Q1 additionally features programmable power-on sequencing.  This device is an Automotive-Grade Product that is AECQ-100 Grade 1 Qualified.

Product Features

•   Input Voltage Range: 2.8 V to 5.5 V

•   Compatible with Advanced Applications Processors and FPGAs

•   2 LDOs for Powering Internal Processor Functions and I/Os

•   High-Speed Serial Interface for Independent Control of Device Functions and Settings

•   Precision Internal Reference

•   Thermal Overload Protection

•   Current Overload Protection

•   Software Programmable Regulators

•   External Power-On-Reset Function for Buck1 and Buck2 (Power Good with Delay Function)

•   Undervoltage Lockout Detector to Monitor Input Supply Voltage

•   Step-Down DC-DC Converter (Buck)

– Programmable VOUT from:

– Buck1 : 0.8 V - 2 V at 1 A

– Buck2 : 1 V - 3.5 V at 600 mA

– Up to 96% Efficiency

– 2. 1-MHz PWM Switching Frequency

– PWM-to-PFM Automatic Mode Change Under Low Loads

– ±3% Output Voltage Accuracy

– Automatic Soft Start

•   Linear Regulators (LDO)

– Programmable VOUT of 1 V to 3.5 V

– ±3% Output Voltage Accuracy

– 300-mA Output Current

– 30-mV (typical) Dropout

Product Applications

•   FPGA, DSP Core Power

•   Applications Processors

•   Peripheral I/O Power

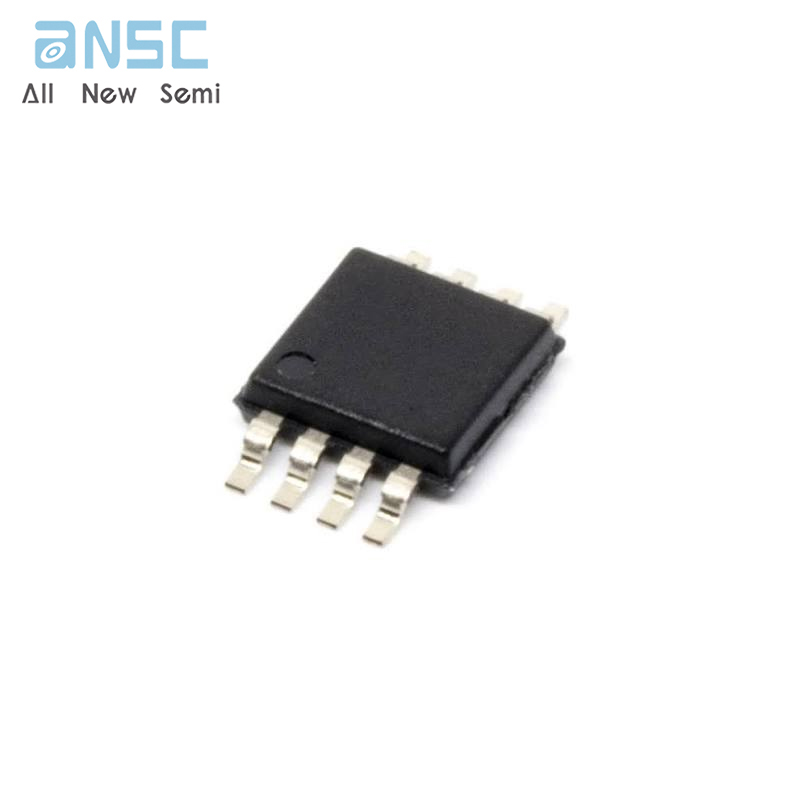

Product Photos

​

For more product information, please download the PDF
