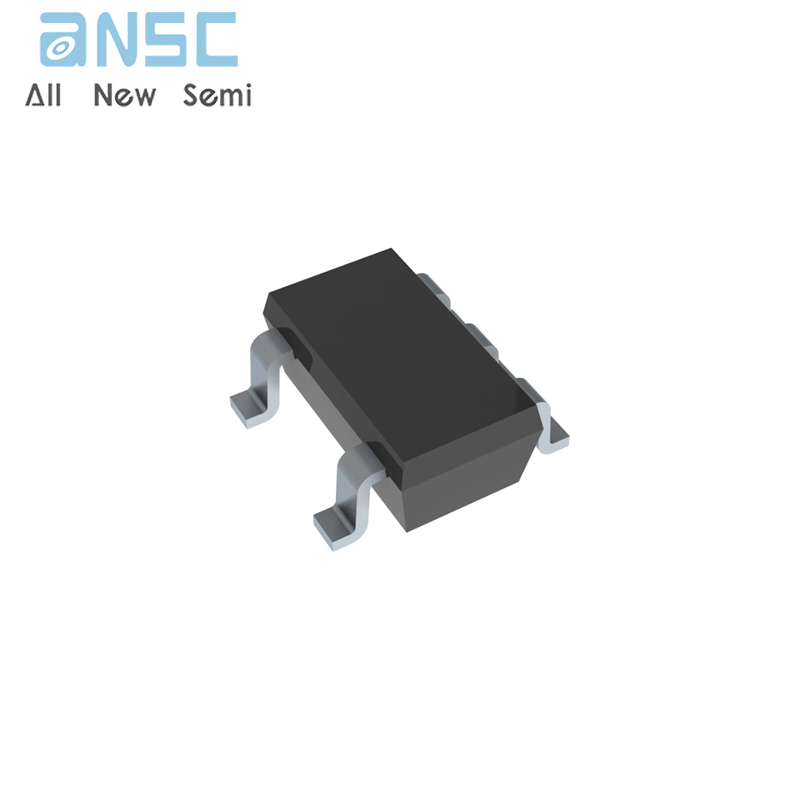

Hot-selling and scarce TLV71310PDBVR Capacitor-Free, 150-mA, Low-Dropout Regulator SOT23-5 spot stock
Manufacturer Product Number
TLV71310PDBVR
Description
TLV71310PDBVR Capacitor-Free, 150-mA, Low-Dropout Regulator SOT23-5 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The TLV713 series of low-dropout (LDO) linear regulators are low quiescent current LDOs with excellent line and load transient performance and are designed for power-sensitive applications. These devices provide a typical accuracy of 1%.
The TLV713 series is designed to be stable without an output capacitor. The removal of the output capacitor allows for a very small solution size. However, the TLV713 series is also stable with any output capacitor if an output capacitor is used.
The TLV713 also provides inrush current control during device power-up and enabling. The TLV713 limits the input current to the defined current limit to avoid large currents from flowing from the input power source. This functionality is especially important in battery-operated devices.
The TLV713 series is available in standard DQN and DBV packages. The TLV713P provides an active pulldown circuit to quickly discharge output loads.
Product Features
• Stable Operation With or Without Capacitors
• Foldback Overcurrent Protection
• Package: SOT23-5 and X2SON
• Very Low Dropout: 230 mV at 150 mA
• Accuracy: 1%
• Low IQ: 50 µA
• Input Voltage Range: 1.4 V to 5.5 V
• Available in Fixed-Output Voltages:1.0 V to 3.3 V
• High PSRR: 65 dB at 1 kHz
Product Applications
• PDAs and Battery-Powered Portable Devices
• MP3 Players and Other Hand-Held Products
• WLAN and Other PC Add-On Cards
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TLV71310PDBVR |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1V |
| Voltage Dropout (Max) | 1.02V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 75 µA |
| PSRR | 70dB ~ 55dB (100Hz ~ 1MHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | TLV71310 |
Product Photos
For more product information, please download the PDF
Other Products In The same category:
TLV71310PDBVR Capacitor-Free, 150-mA, Low-Dropout Regulator SOT23-5 spot stock
403In stock:
Can ship immediately
