Hot-selling and scarce HEF4516BP Binary up/down counter DIP16

Product Descriptions

The HEF4516B is an edge-triggered synchronous up/down 4-bit binary counter with a clock input (CP), an up/down count control input (UP/DN), an active LOW count enable input (CE), an asynchronous active HIGH parallel load input (PL), four parallel inputs (P0 to P3), four parallel outputs (O0 to O3), an active LOW terminal count output (TC), and an overriding asynchronous master reset input (MR).

Information on P0 to P3 is loaded into the counter while PL is HIGH, independent of all other input conditions except MR which must be LOW. When PL and CE are LOW, the counter changes on the LOW to HIGH transition of CP. Input UP/DN determines the direction of the count, HIGH for counting up, LOW for counting down. When counting up, TC is LOW when O0 and O3 are HIGH and CE is LOW. When counting down, TC is LOW when O0 to O3 and CE are LOW. A HIGH on MR resets the counter (O0 to O3 = LOW) independent of all other input conditions.

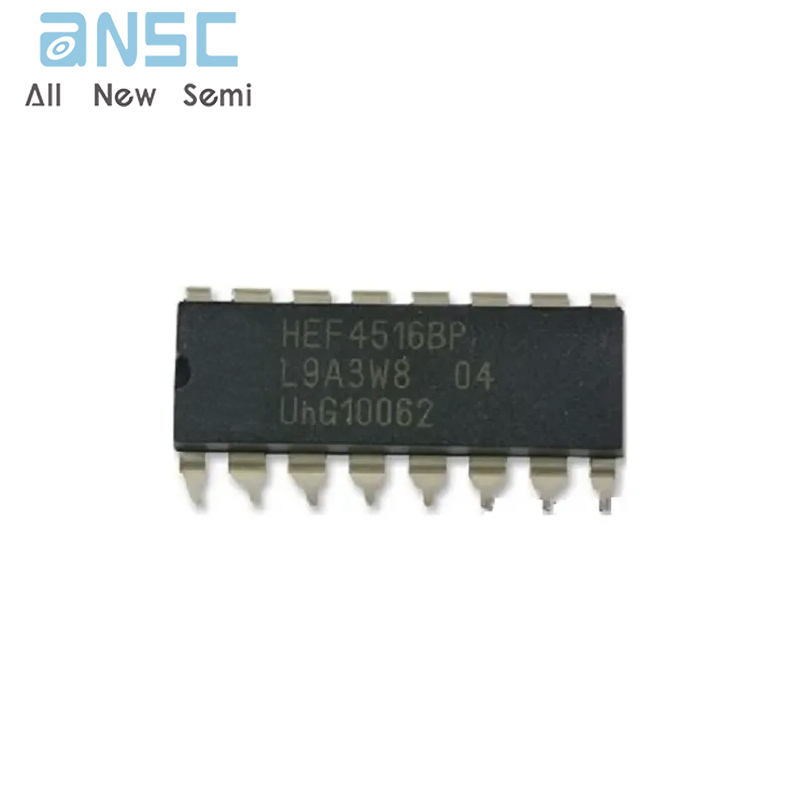

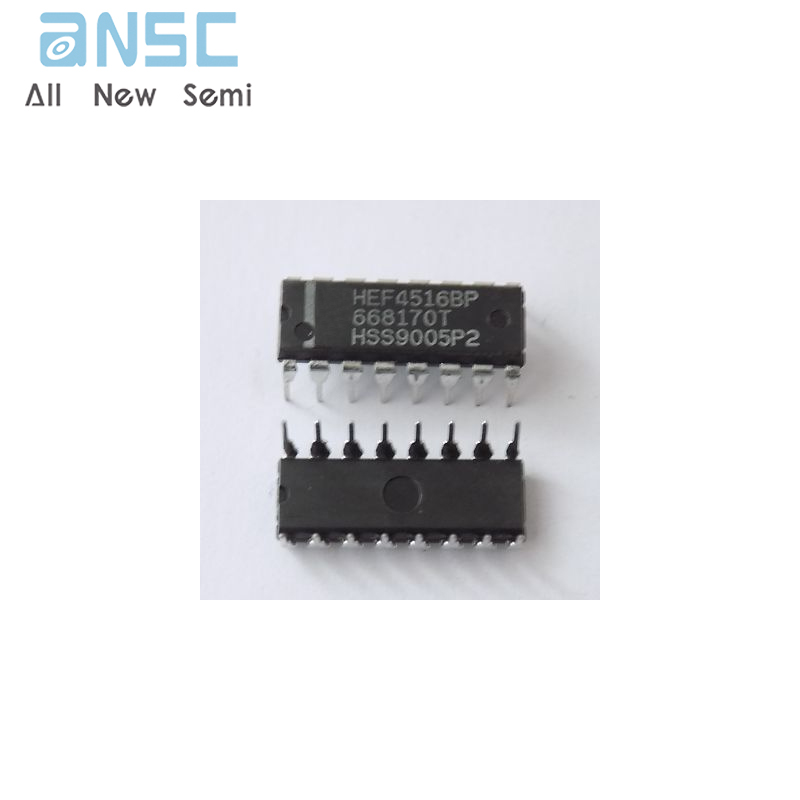

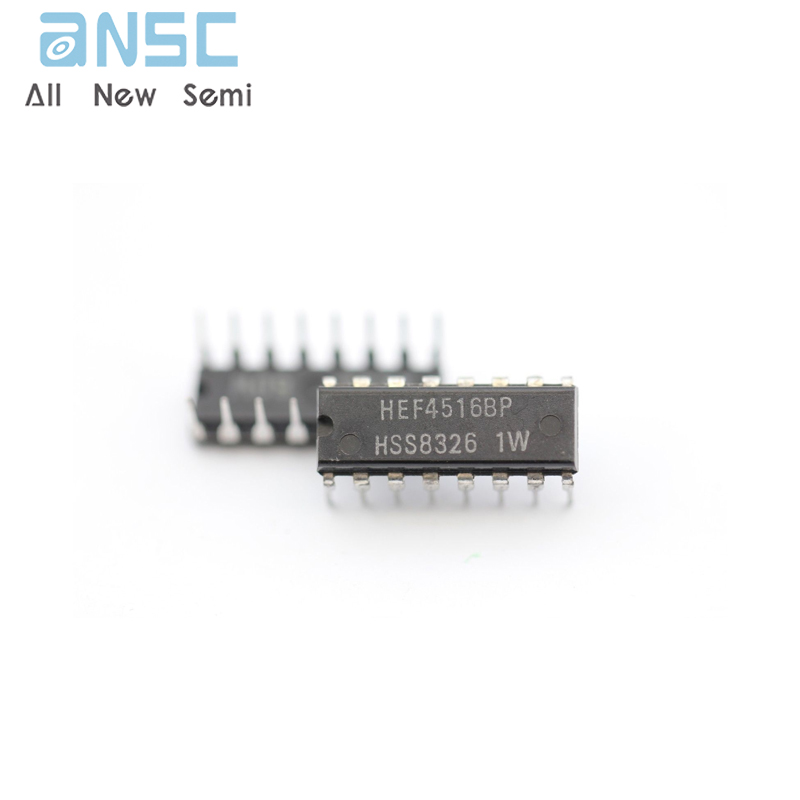

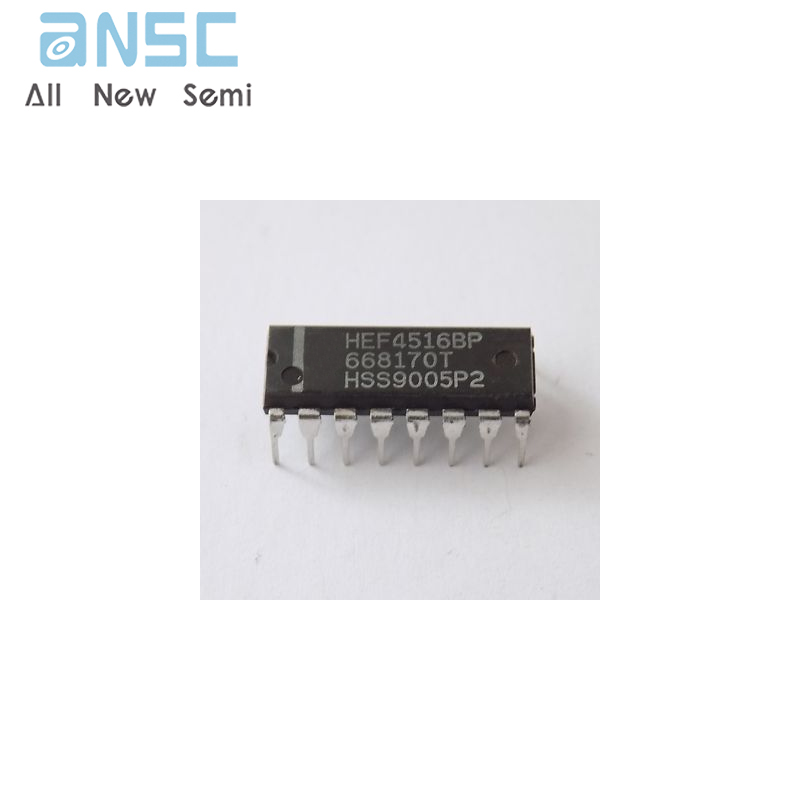

Product Photos

For more product information, please download the PDF
