Hot-selling and scarce TPS2062AD TWO CHANNEL, CURRENT-LIMITED, POWER-DISTRIBUTION SWITCHES SOP8

Product Descriptions

The TPS206xA power-distribution switches are intended for applications where heavy capacitive loads and short-circuits are likely to be encountered. The TPS206xA family is pin-for-pin compatible with the TPS206x family with a tighter overcurrent tolerance. This family of devices incorporates two 70mΩ N-channel MOSFET power switches for power-distribution systems that require multiple power switches in a single package. Each switch is controlled by a logic enable input. Gate drive is provided by an internal charge pump designed to control the power-switch rise and fall times to minimize current surges during switching. The charge pump requires no external components and allows operation from supplies as low as 2.7V.

Each device limits the output current to a safe level by switching into a constant-current mode when the output load exceeds the current-limit threshold or a short is present. Individual channels indicate the presence of an overcurrent condition by asserting its corresponding OCx output (active low). Thermal protection circuitry disables the device during overcurrent or short-circuit events to prevent permanent damage. The device recovers from thermal shutdown automatically once the device has cooled sufficiently. The device provides undervoltage lockout to disable the device until the input voltage rises above 2.0V. The TPS206xA is designed to current limit at 1.6A typically per channel.

Product Features

• 70mΩ High-Side MOSFET

• 1A Continuous Current

• Thermal and Short-Circuit Protection

• Accurate Current-Limit (1.2A min, 2A max)

• Operating Range: 2.7V to 5.5V

• 0.6ms Typical Rise Time

• Undervoltage Lockout

• Deglitched Fault Report ( OCx)

• No OCx Glitch During Power Up

• 1μA Maximum Standby Supply Current

• Bidirectional Switch

• Ambient Temperature Range: –40°C to 85°C

• Built-in Soft-Start

• UL Listed -- File No. E169910, Both Single and Ganged Channel Configuration

Product Applications

• Heavy Capacitive Loads

Product Specification

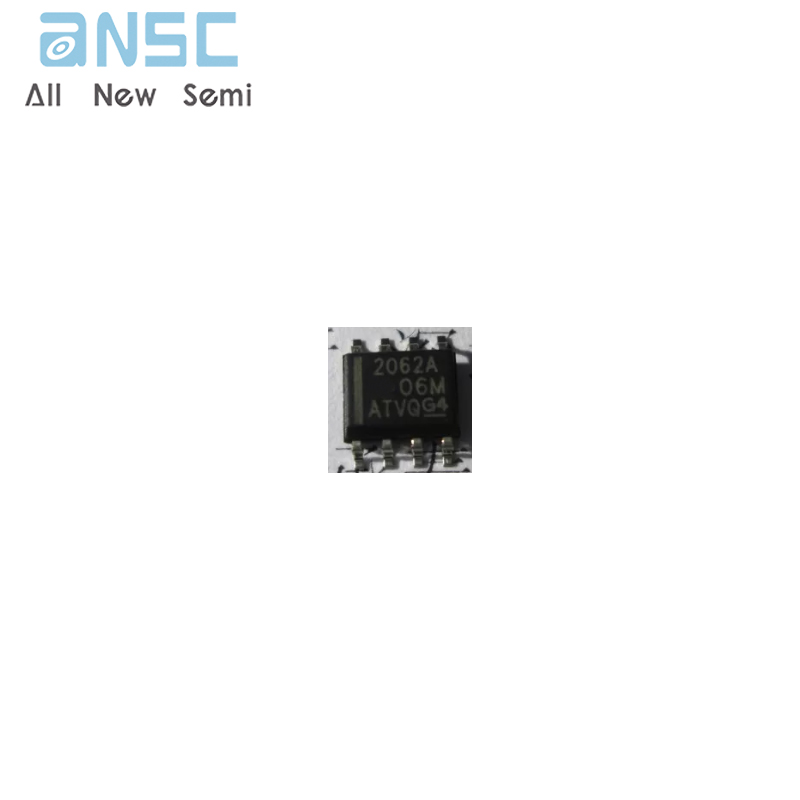

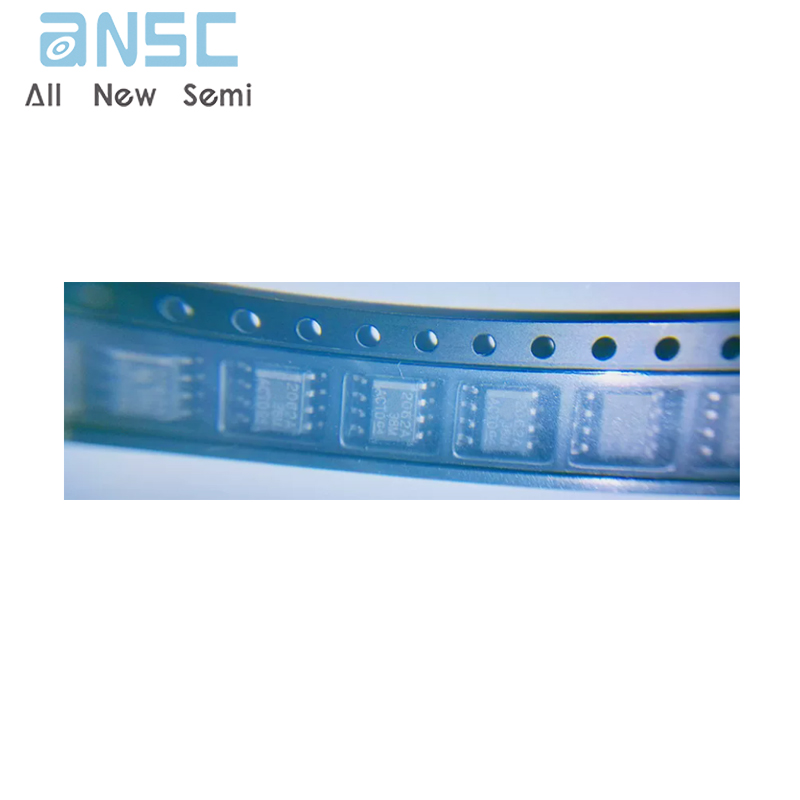

Product Photos

For more product information, please download the PDF
