Hot-selling and scarce AD7674ACPZ 18 Bit Analog to Digital Converter 1 Input 1 SAR 48-LFCSP-VQ spot stock
Manufacturer Product Number
AD7674ACPZ
Description
AD7674ACPZ 18 Bit Analog to Digital Converter 1 Input 1 SAR 48-LFCSP-VQ spot stock
Package Condition
Tray
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The AD7674 is an 18-bit, 800 kSPS, charge redistribution, successive approximation register (SAR) fully differential analog-to-digital converter (ADC) that operates on a single 5 V power supply. The device contains a high speed, 18-bit sampling ADC, an internal conversion clock, an internal reference buffer, error correction circuits, and both serial and parallel system interface ports.
The device is available in a 48-lead LQFP or a 48-lead LFCSP with operation specified from −40°C to +85°C.
Product Features
18-bit resolution with no missing codes
No pipeline delay (SAR architecture)
Differential input range: ±VREF (VREF up to 5 V)
Throughput
800 kSPS (warp mode)
666 kSPS (normal mode)
570 kSPS (impulse mode)
INL: ±2.5 LSB max (±9.5 ppm of full scale)
Dynamic range : 103 dB typ (VREF = 5 V)
SINAD: 100 dB typ at 2 kHz (VREF = 5 V)
Parallel (18-, 16-, or 8-bit bus) and serial 5 V/3 V interface
SPI/QSPI™/MICROWIRE/DSP compatible
On-board reference buffer
Single 5 V supply operation
Power dissipation
98 mW typat 800 kSPS
78 mW typ at 500 kSPS (impulse mode)
160 µW at 1 kSPS (impulse mode)
48-lead LQFP or 48-lead LFCSP
Pin-to-pin compatible upgrade of AD7676, AD7678, and AD7679
Product Applications
CT scanners
High dynamic data acquisition
Geophone and hydrophone sensors
∑-∆ replacement (low power, multichannel)
Instrumentation
Spectrum analysis
Medical instruments
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-AD7674ACPZ |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Manufacturer | - |
| Series | PulSAR® |
| Packaging | Tray |
| Part Status | Active |
| Number of Bits | 18 |
| Sampling Rate (Per Second) | 800k |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | SPI, Parallel, DSP |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 48-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 48-LFCSP-VQ (7x7) |
| Mounting Type | Surface Mount |
| Base Product Number | AD7674 |

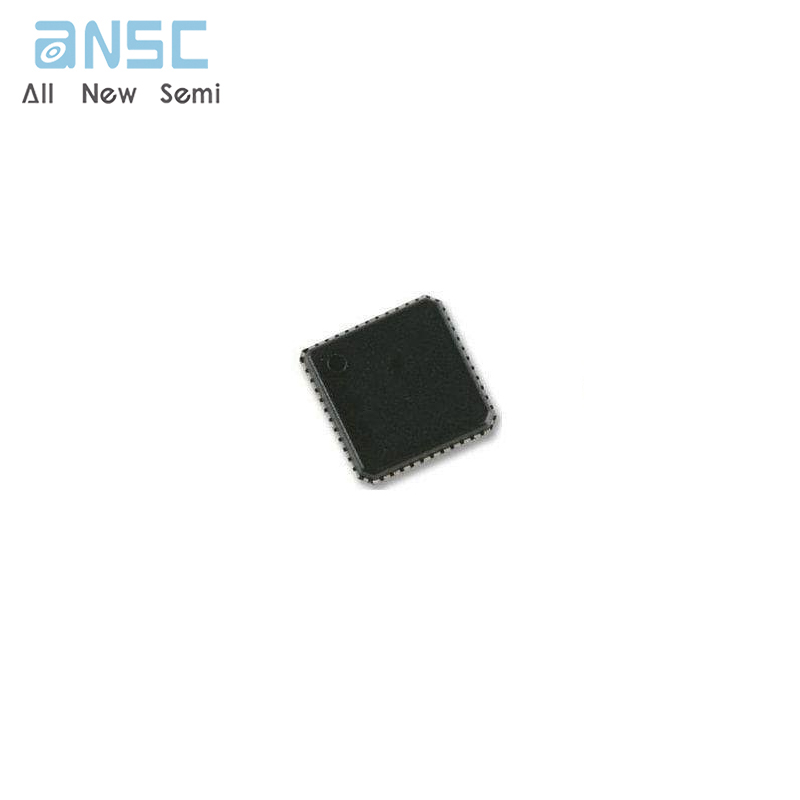

Product Photos
