Hot-selling and scarce SI4749-C10-GMR High-Performance FM RDS/RBDS Data Receiver QFN spot stock

Product Descriptions

The  Si4749  is  a  100%  CMOS  receiver  integratedcircuit (IC), offering the full receive functionality fromantenna   to   RDS/RBDS*   data   for   use   in   theautomotive and personal navigation markets . It is anideal companion RDS background data receiver forTraffic  Message  Channel  (TMC)  and  Open  DataApplications  (ODA)  applications frequently  used  inconjunction with GPS functionality or as an alternatefrequency (AF) scanner in automotive radios . It offersa    fully-integrated    advanced    decoder    for    theEuropean RDS* and the North American RBDS .  Itincludes demodulation, symbol decoding, advancederror correction, detailed visibility to block-error rates(BLER),   and   decoder   reliability,   synchronizationstatus,  and times . The  Si4749  provides  complete,decoded, and error-corrected RDS groups, up to 25groups at a time with associated BLER .

Product Features

-Worldwide FM band support (76–108 MHz)

-Advanced patented RDS/RBDS Forward Error Correction (FEC) engine

-Highest RDS Decoder Reliability

-Robust synchronization at high BLER

-RDS reception with FM mono broadcast

-Fully configurable RDS data quality visibility and associated interrupts

-On-chip memory for up to 25 RDS groups

-Multi-path interference detection

-Received signal quality indicators (RSSI, SNR,wideband AM)

-Automatic frequency control (AFC)

-Automatic gain control (AGC)

-Image-rejection mixer

-Frequency synthesizer with integrated VCO

-Low-IF direct conversion; no external ceramic filters

-3.0 to 5.5 V supply voltage

-Programmable reference clock

-AECQ-100 qualified

-–40 to 85 ºC operation

-24-pin 4 x 4 mm QFN package

-Pb-free/RoHS compliant

Product Applications

-OEM car audio systems

-After-market car audio systems

-Telematics

-Personal navigation system (PND)

-GPS-enabled devices

Product Specification

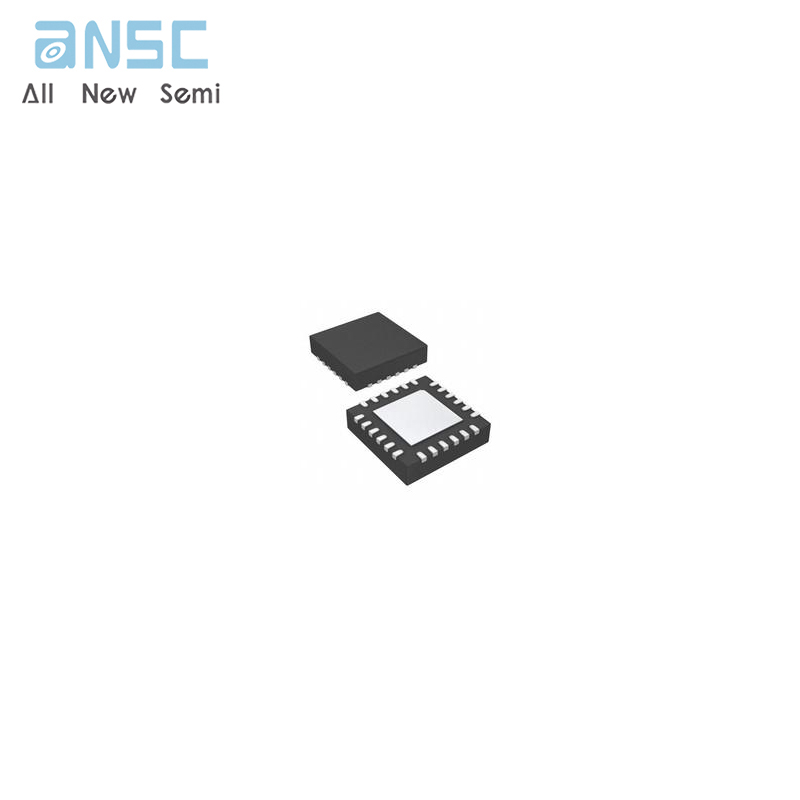

Product Photos

For more product information, please download the PDF
