Hot-selling and scarce RT9819C-30PV Micro-Power Voltage Detectors SOT23 spot stock

Product Descriptions

The RT9819 is a micro-power voltage detector supervising the power supply voltage level for microprocessors (μP) or digital systems. It provides internally fixed threshold levels with 0.1V per step ranging from 1.2V to 5V, which covers most digital applications. It features low supply current of 3μA. The RT9819 performs supervisory function by sending out a reset signal whenever the VDD voltage falls below a preset threshold level. This reset signal will last the whole period before VDD recovering. Once VDD recovered upcrossing the threshold level, the reset signal will be released after a certain delay time. RT9819 is provided in SC-70-3, SC-82 and SOT-23-3 packages.

Product Features

z Internally Fixed Threshold 1.2V to 5V in 0.1V Step

z High Accuracy ±1.5 percent

z Low Supply Current 3μA

z No External Components Required

z Quick Reset within 20μs

z Built-in Recovery Delay Include 0ms, 55ms, 220ms, 450ms Options

z Low Functional Supply Voltage 0.9V

z CMOS Push-Pull Output

z Small SC-70-3, SC-82 and SOT-23-3 Packages

z RoHS Compliant and 100 percent Lead (Pb)-Free

Product Applications

z Computers

z Controllers

z Intelligent Instruments

z Critical μP and μC Power Monitoring

z Portable/Battery-Powered Equipment

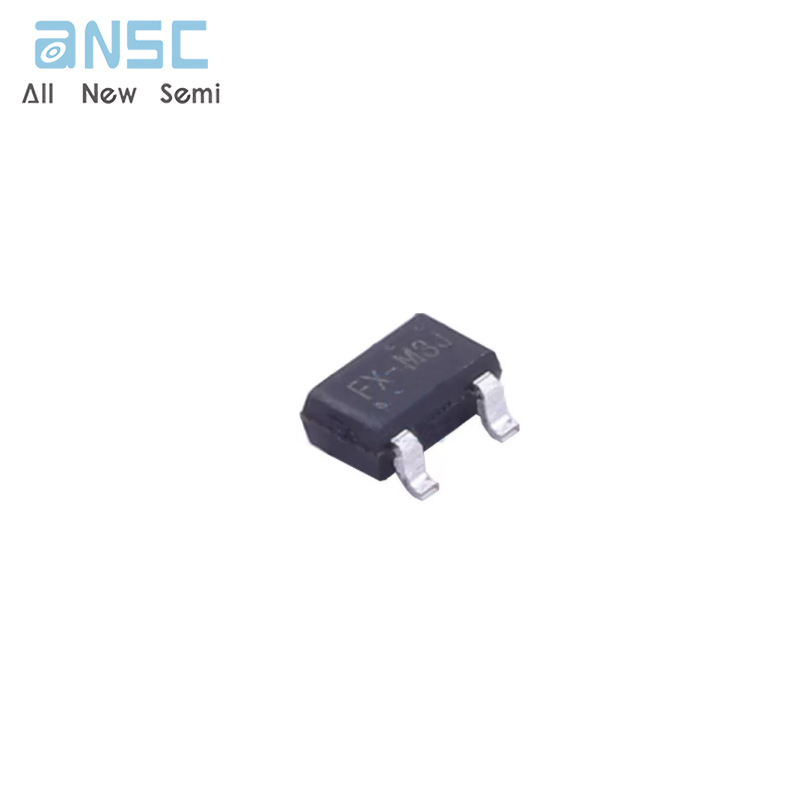

Product Photos

For more product information, please download the PDF
