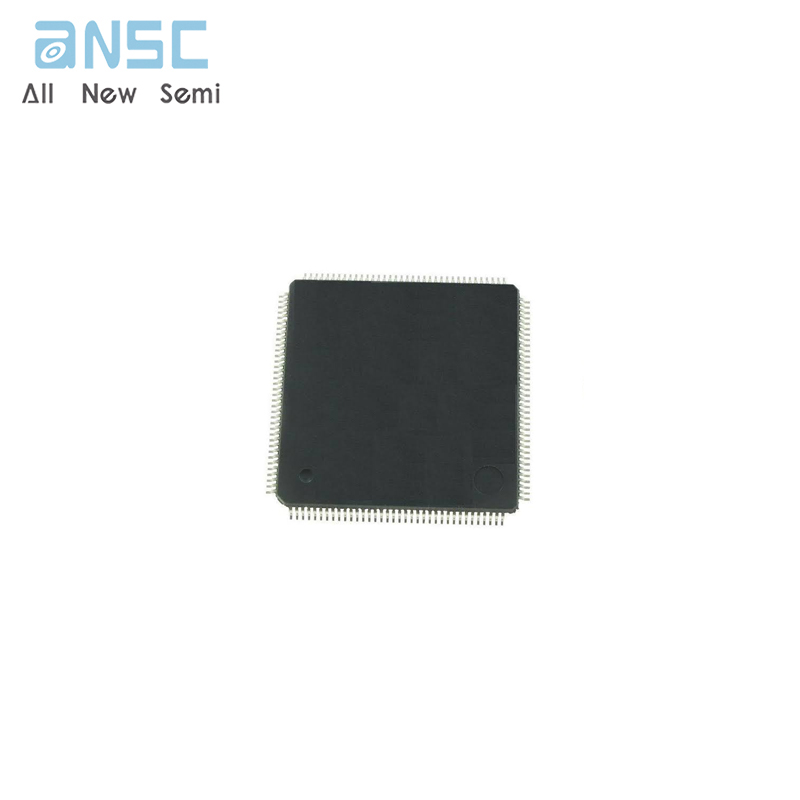

Hot-selling and scarce A54SX08A-TQG144I Field Programmable Gate Array IC TQFP-144 spot stock
Manufacturer Product Number
A54SX08A-TQG144I
Description
A54SX08A-TQG144I Field Programmable Gate Array IC TQFP-144 spot stock
Package Condition
Tray
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• Hot-Swap Compliant I/Os
• Power-Up/Down Friendly (No Sequencing Required for Supply Voltages)
• 66 MHz PCI Compliant
• Nonvolatile, Single-Chip Solution
• Configurable I/O Support for 3.3 V / 5 V PCI, 5 V TTL, 3.3 V LVTTL, 2.5 V LVCMOS2
• 2.5 V, 3.3 V, and 5 V Mixed-Voltage Operation with 5 V Input Tolerance and 5 V Drive Strength
• Devices Support Multiple Temperature Grades
• Configurable Weak-Resistor Pull-Up or Pull-Down for I/O at Power-Up
• Individual Output Slew Rate Control
• Up to 100% Resource Utilization and 100% Pin Locking
• Deterministic, User-Controllable Timing
• Unique In-System Diagnostic and Verification Capability with Silicon Explorer II
• Boundary-Scan Testing in Compliance with IEEE Standard 1149 .1 (JTAG)
• Actel Secure Programming Technology with FuseLock™ Prevents Reverse Engineering and Design Theft
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-A54SX08A-TQG144I |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| FPGAs (Field Programmable Gate Array) | |
| Mfr | - |
| Series | SX-A |
| Packaging | Tray |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Number of LABs/CLBs | 768 |
| Number of I/O | 113 |
| Number of Gates | 12000 |
| Voltage - Supply | 2.25V ~ 5.25V |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | 144-LQFP |
| Supplier Device Package | 144-TQFP (20x20) |
| Base Product Number | A54SX08 |

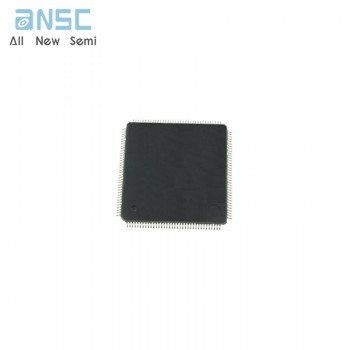

Product Photos
For more product information, please download the PDF
