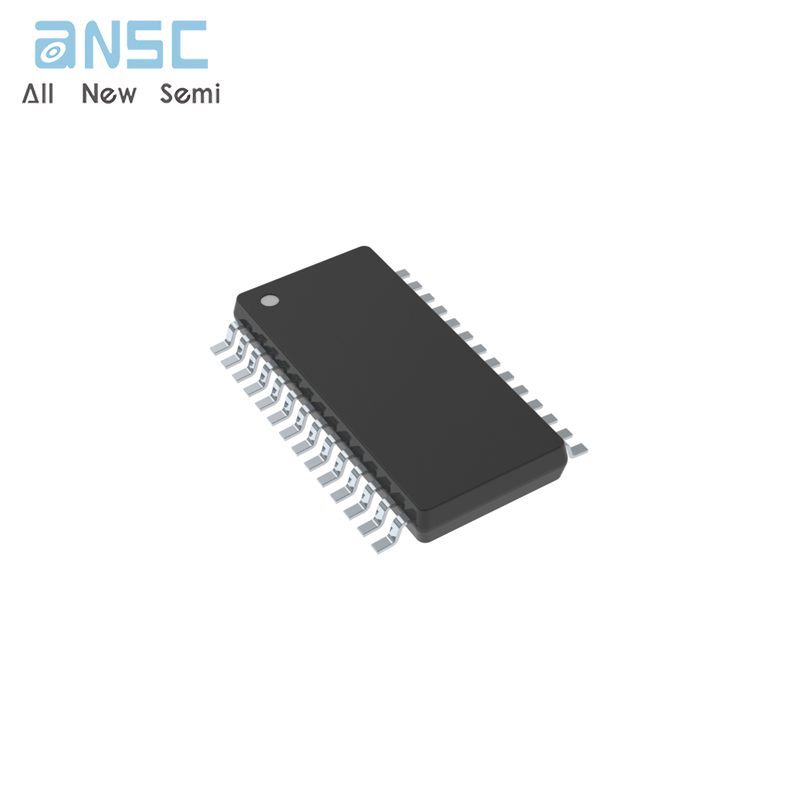

Hot-selling and scarce MC33742PEGR2 System Basis Chip with Enhanced High Speed CAN Transceiver SOP28 spot stock

Product Descriptions

The 33742 and the 33742S SMARTMOS devices are SPI-controlled  System Basis Chips (SBCs), combining many frequently used functions,  along with a CAN 2.0-compliant transceiver, used in many automotive  electronic control units (ECUs). The 33742 SBC has a fully protected  fixed 5.0 V low dropout internal regulator, with current limiting,  overtemperature prewarning, and reset. A second 5.0 V regulator can be  implemented using external pass PNP bipolar junction pass transistor,  driven by the SBC’s external V2 sense input and V2 output drive pins.

The SBC has four main operating modes: Normal, Standby, Stop, and  Sleep mode. Additionally, there is an internally switched high side power  supply output, four wake-up inputs pins, a programmable window  watchdog, interrupt, reset, and a SPI module for communication and  control. The high speed CAN A and B transceiver is available for  intermodule communication.

Product Features

• 1.0 Mbps CAN transceiver bus interface with bus diagnostic capability

• SPI control at frequencies up to 4.0 MHz

• 5.0 V low dropout voltage regulator with current limiting, over temperature prewarning, and output monitoring and reset

• A second 5.0 V regulator capability using an external series pass transistor

• Normal, Standby, Stop, and Sleep modes of operation with low Sleep and Stop mode current

• A high side switch output driver for controlling external circuitry

Product Specification

Product Photos

For more product information, please download the PDF
