Hot-selling and scarce MAX4680CWE+T 1.25Ω, Dual SPST,CMOS Analog Switches SOP16 spot stock
Manufacturer Product Number
MAX4680CWE+T
Description
MAX4680CWE+T 1.25Ω, Dual SPST,CMOS Analog Switches SOP16 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
♦ Low On-Resistance (1.25Ω max)
♦ Guaranteed RON Match Between Channels (0.3Ω max)
♦ Guaranteed RON Flatness Over Specified Signal Range (0.3Ω max)
♦ Rail-to-Rail Signal Handling
♦ Guaranteed Break-Before-Make (MAX4700)
♦ +4.5V to +36V Single-Supply Operation ±4.5V to ±20V Dual-Supply Operation
♦ TTL/CMOS-Compatible Control Inputs
♦ >2kV ESD Protection per Method 3015.7
Product Applications
Reed Relay Replacement
Data Acquisition Systems
Test Equipment
Sample-and-Hold Circuits
Communication Systems
PBX, PABX Systems
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MAX4680CWE+T |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Discontinued at DigiKey |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 1.25Ohm |
| Channel-to-Channel Matching (ΔRon) | 90mOhm |
| Voltage - Supply, Single (V+) | 4.5V ~ 36V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 275ns, 175ns |
| Charge Injection | 55pC |
| Channel Capacitance (CS(off), CD(off)) | 115pF, 115pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -65dB @ 1MHz |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | MAX4680 |

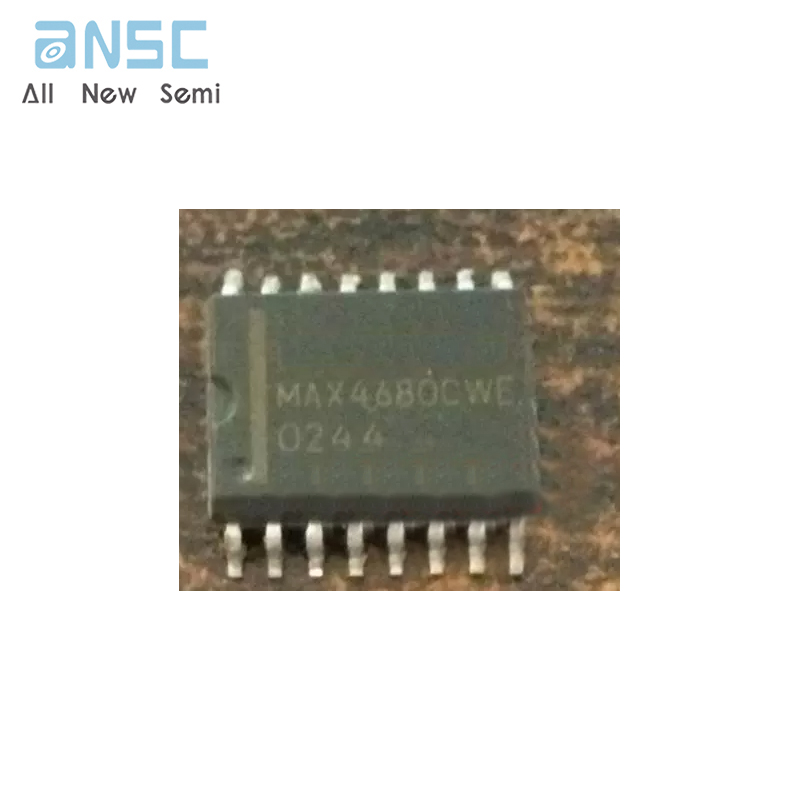

Product Photos
For more product information, please download the PDF
Other Products In The same category:
MAX4680CWE+T 1.25Ω, Dual SPST,CMOS Analog Switches SOP16 spot stock
471In stock:
Can ship immediately
