Hot-selling and scarce AZ5123-01H.R7G Transient Voltage Suppressing Device For ESD/Transient Protection SOD523 spot stock

Product Descriptions

AZ5123-01H is a design which includes a  bi-directional surge rated clamping cell to protect one power line, or one control line, or one low  speed data line in an electronic systems. The  AZ5123-01H has been specifically designed to  protect sensitive components which are  connected to power and control lines from  over-voltage damage and latch-up caused by  Electrostatic Discharging (ESD), Electrical Fast  Transients (EFT), Lightning, and Cable  Discharge Event (CDE).

AZ5123-01H is a unique design which includes proprietary clamping cells in a single package.  During transient conditions, the proprietary  clamping cells prevent over-voltage on the power  line or control/data lines, protecting any  downstream components.

AZ5123-01H is bi-directional and may be used  on lines where the signal swings above and  below ground.

AZ5123-01H may be used to meet the ESD  immunity requirements of IEC 61000-4-2, Level 4  (±15kV air, ±8kV contact discharge).

Product Features

 ESD Protection for 1 Line with Bi-directional.

 Provide ESD protection for the protected line to

IEC 61000-4-2 (ESD) ±16kV (air), ±16kV (contact)

IEC 61000-4-4 (EFT) 50A (5/50ns)

IEC 61000-4-5 (Lightning) 4.5A (8/20µs)  Cable Discharge Event (CDE)

 Ultra-small SOD-523 package saves board  space.

 Protect one I/O line or one power line

 Fast turn-on and Low clamping voltage

 For low operating voltage applications: 3.3V  maximum

 Solid-state silicon-avalanche and active circuit  triggering technology

 Green Part

Product Applications

 Computer Interfaces Protection

 Microprocessors Protection

 Serial and Parallel Ports Protection

 Control Signal Lines Protection

 Power lines on PCB Protection

 Latchup Protection

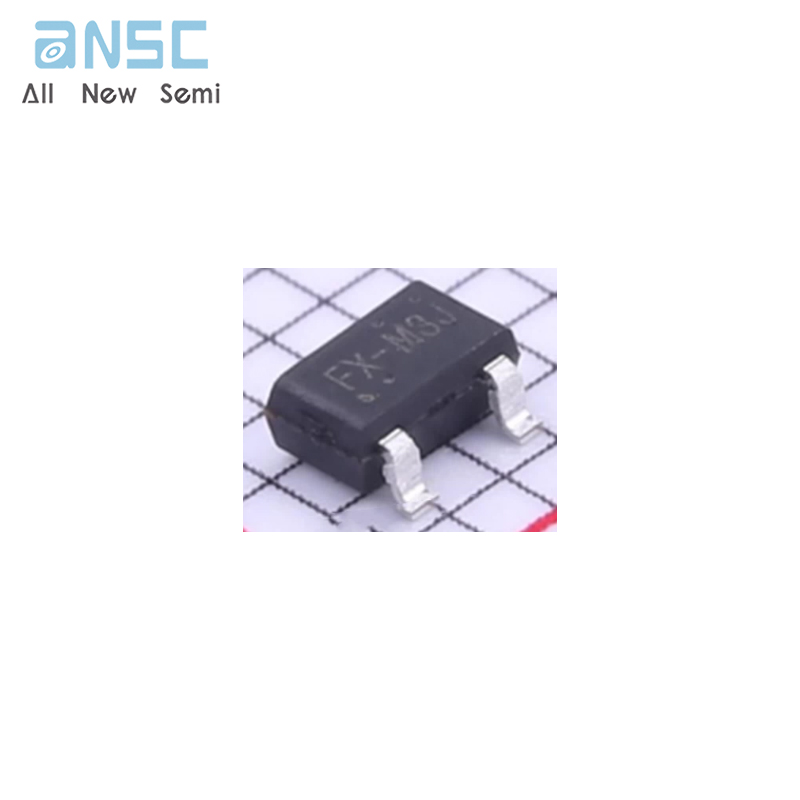

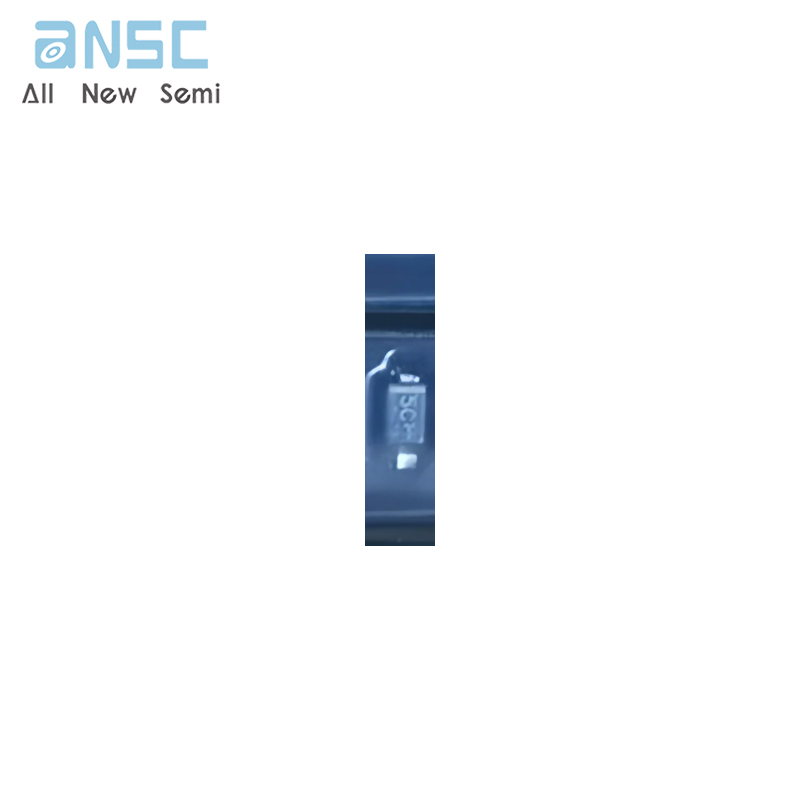

Product Photos

For more product information, please download the PDF
