Product Descriptions

MX852BB0030  CMIC™ (clock  management  IC) is  a member   of  the   ClockWorks®   FUSION  family  of devices that integrates the crystal, synthesizer and fanout buffers in a single 5mm x 7mm LGA Package.

Integrating the entire clock chain delivers 200fs  typical phase noise performance including fanout and crosstalk.

The device operates from a 2.5V or 3.3V power supply.

Product Features

• Generates 5 output clocks

• Frequency and output logic:

-156.25MHz HCSL x 5

• Integrated quartz crystal for frequency reference

• Typical phase noise:

-100fs (Integration range: 1.875MHz-20MHz)

-200fs (Integration range: 12kHz-20MHz)

• Complete ultra-low jitter clocking solution

• OE on banks 1 and 2

• 2.5V or 3.3V operating voltage range

• ±50ppm total stability

• -40°C to +85°C temperature range

• 38-Pin 5mm x 7mm LGA package

Product Applications

• 10/40/400 Gigabit Ethernet

• Fibre Channel 10G/12G SERDES

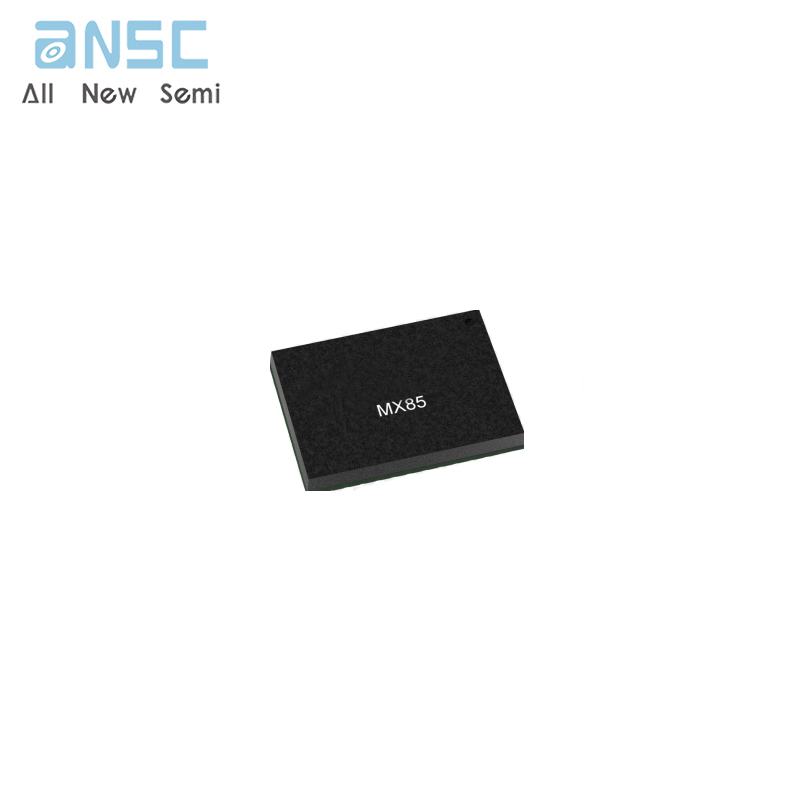

Product Photos

For more product information, please download the PDF
