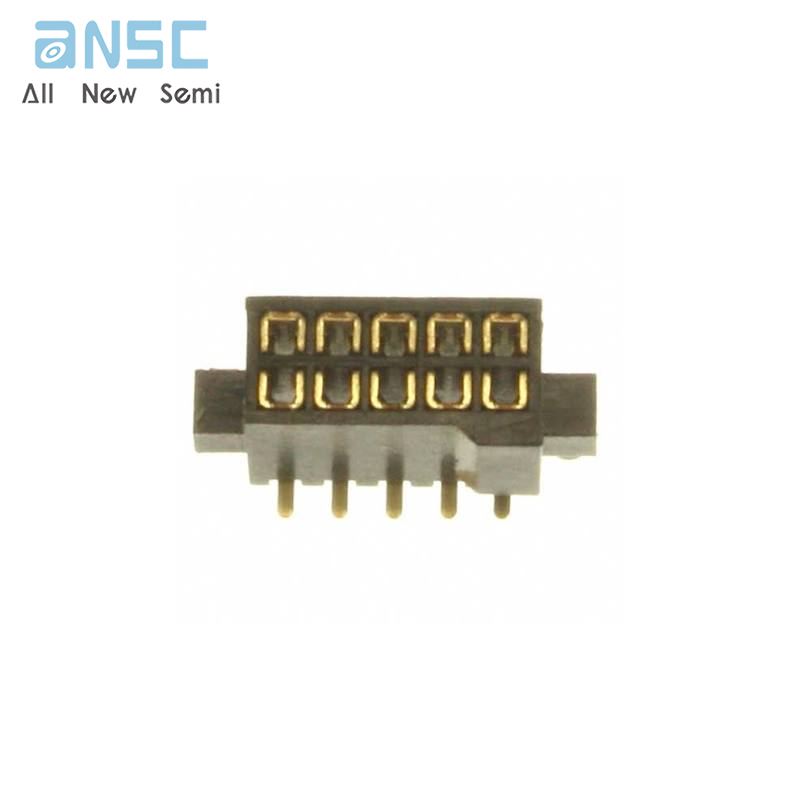

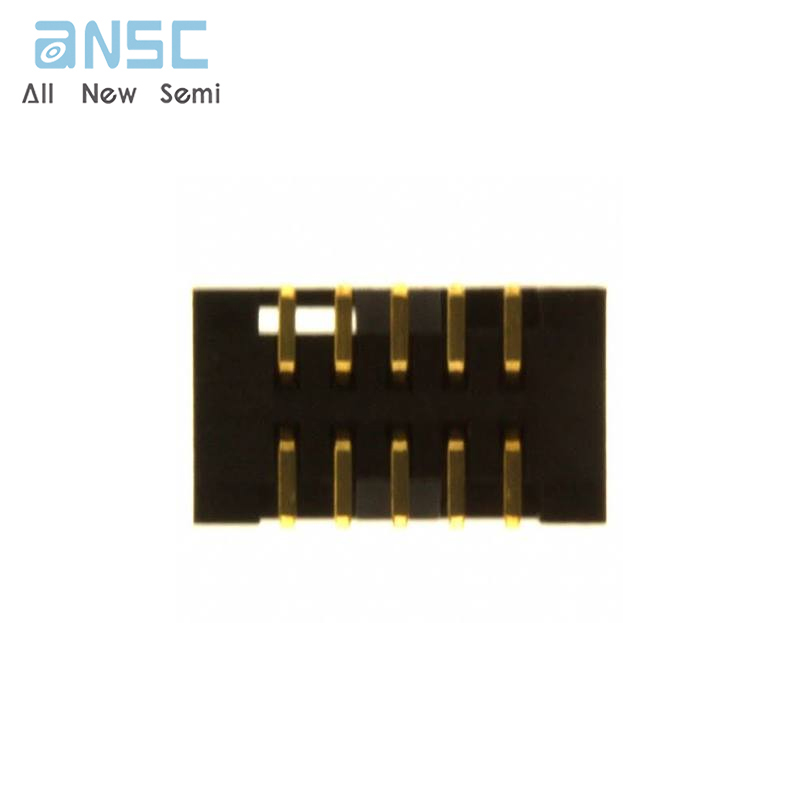

Hot-selling and scarce SFH31-NPPB-D05-SP-BK 10 Position Header Connector 0.050" (1.27mm) Surface Mount Gold spot stock

Manufacturer Product Number

SFH31-NPPB-D05-SP-BK

Description

SFH31-NPPB-D05-SP-BK 10 Position Header Connector 0.050" (1.27mm) Surface Mount Gold spot stock

Package Condition

Tube

Datasheet

SFH31-NPPB-D05-SP-BK

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Features

•Operating Temperature: -40°C to +105°C

•Processing Temperature: 230°C Max. for 60 seconds,

(260°C Max . for 10 seconds)

•UL Flammability Rating: 94V-0

•Contact Resistance: 20 milli Ohms Max .

•Current Rating: 1 Amp

•Dielectric Withstanding: 500 VAC

•Insulation Resistance: 5000 Megohms

Product Specifications

Attribute	Attribute value
ANSM-Part#	ANSM-SFH31-NPPB-D05-SP-BK
Category	Connectors, Interconnects
	Rectangular Connectors
	Headers, Receptacles, Female Sockets
Mfr	-
Series	SFH31
Packaging	Tube
Part Status	Active
Connector Type	Header
Contact Type	Female Socket
Style	Board to Board
Number of Positions	10
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Insulation Color	Black
Insulation Height	0.173" (4.40mm)
Operating Temperature	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Features	Board Guide
Current Rating (Amps)	1A
Insulation Material	Polyamide (PA), Nylon
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	Flash
Base Product Number	SFH31
